The HP 4 Color CI Flexo Press is a professional central-impression flexographic printing solution exclusively engineered by HP, integrating industrial-grade precision, efficient workflow, and stable 4-color printing capability. Designed for medium-to-long production runs in flexible packaging, labels, and film converting industries, this press combines HP’s decades of printing technology accumulation with user-centric design, delivering consistent high-definition output, reduced operational costs, and enhanced production efficiency for converters worldwide.
1. Precise 4-Color Registration & Superior Print Quality
Equipped with a large-diameter central impression drum—the core component of CI flexo technology—this press ensures uniform web tension and zero substrate shift throughout the printing process, achieving ±0.1mm registration accuracy even on thin, stretchable films. With 812 dpi image resolution (up to 2438 x 2438 dpi HDI for high-definition imaging) and support for lineatura ranging from 175 to 210 lpi, it reproduces sharp details, vibrant color transitions, and consistent color saturation across all four process colors (Cyan, Magenta, Yellow, Black). The closed inking unit with chambered doctor blades ensures even ink feeding, minimizing dot gain and ensuring flawless color consistency from the first print to the last batch.
2. High-Speed Productivity & Reduced Waste
Optimized for efficiency, the HP 4 Color CI Flexo Press features a gearless servo drive system that enables stable high-speed operation: up to 30 m/min in 4-color mode, 40 m/min in enhanced productivity mode, and up to 60 m/min in 1 or 2-color mode. The fast-sleeve change design minimizes make-ready time, while automatic tension control and pre-registration functions reduce material waste and shorten setup cycles. This combination of speed and efficiency makes it ideal for high-volume production, helping converters meet tight delivery deadlines without compromising print quality.
3. Broad Substrate Compatibility & Versatile Applications
This press supports a wide range of substrates, including pressure-sensitive label paper, plain paper, non-compatible films, cardboard, PE, BOPP, PET, aluminum foil, and laminates, with substrate thickness ranging from 12 to 450 microns (0.5 to 18 points) and maximum web width of 340 mm. It is perfectly suited for printing food packaging, daily chemical labels, industrial packaging, shopping bags, and promotional materials, catering to the diverse needs of the packaging and converting industries. Additionally, it is compatible with water-based, solvent-based, and UV inks, supporting eco-friendly printing requirements and meeting global environmental standards.
4. Intelligent Operation & Smart Workflow Integration

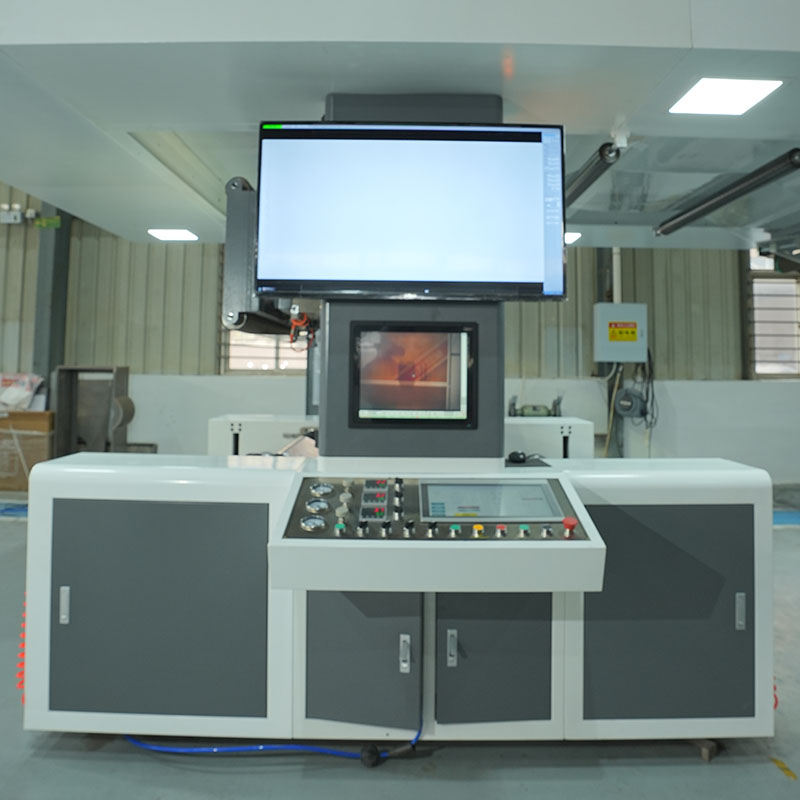

Designed for ease of use, the press is equipped with a user-friendly PLC touch screen, allowing operators to adjust parameters, monitor production status, and troubleshoot quickly. Optional video inspection and auto-registration systems further simplify operation, reducing manual intervention and improving yield. It also supports cloud connectivity via HP PrintOS X, enabling remote monitoring, workflow management, and data analysis to optimize production efficiency and reduce downtime. The robust mechanical structure ensures long-term stable operation, with low maintenance requirements and a service life that delivers long-term return on investment.
5. HP Brand Reliability & Eco-Friendly Design
Backed by HP’s global reputation for quality and innovation, the 4 Color CI Flexo Press undergoes strict quality testing before leaving the factory, complying with ISO9001 and CE international certifications to ensure compliance with global quality and safety standards. It adopts eco-friendly design concepts, supporting recyclable monomaterial structures and solvent-free lamination, while water-based inks reduce environmental impact, aligning with the industry’s sustainable development trends. With HP’s global after-sales service network, converters can enjoy timely technical support and spare parts supply, ensuring uninterrupted production.
Converters, packaging manufacturers, and print shops seeking a reliable, high-performance 4-color CI flexo press to handle medium-to-long production runs. It is particularly suitable for businesses focusing on flexible packaging, label printing, and film converting, who prioritize print quality, production efficiency, and cost control, while requiring the reliability and technical support of a global brand like HP.
| Model | HPCI-600B | HPCI-800B | HPCI-1000B | HPCI-1200B |
| Number of printing group | 4/6/8 | |||
| Max.web width | 650 | 850 | 1050 | 1250 |
| Max.printing width | 600 | 800 | 1000 | 1200 |
| Max.machine speed | 250m/min | |||
| Max.printing speed | 200m/min | |||
| Max.unwind/rewind Dia. | 800mm | |||
| Drive type | Central drum with gear drive | |||
| Ink | Water base ink or solvent ink | |||
| Printing lengh(repeat) | 350-800MM | |||
| Range of sbstrates | PP Wowen Bags,Paper-plastic bags | |||
| Electrical supply | Voltage 380v,50hz or to be specified | |||
● The machine introduction & absorption of European technology / process manufacturing, supporting / full functional.
● After mounting the plate and registration, no longer need registration, improve yield.
● Replacing 1 set of Plate Roller (unloaded old roller, installed six new roller after tightening), only 20 Minute registration can be done by printing.
● The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
● Maximum production machine speed up 200m/min, registration accuracy ±0.10mm.
● The overlay accuracy does not change during lifting running speed up or down.
● When machine stop, Tension can be maintained, the substrate is not deviation shift.
● The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield.
● With precision structural, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.
1,Center-driven unwinding, equipped with magnetic powder brake, equipped with automatic tension control；
2,Tension control: Ultra-light floating roller control, automatic tension compensation,closed loop control;
3,It has the function of automatic shutdown when the material is interrupted, and the tension maintains the function to avoid the substrate slack and deviation during the shutdown
4, Configure automatic EPC system before printing EPC: Before printing, a four-roller automatic EPC ultrasonic probe correction system has manual/automatic/center return functions, and the left and right translation can be adjusted by ±65mm.
1，Type : CI Flex Printing Machine
2，Color: 4 colors on the front + 4 colors on the back
3，Drive mode: Servo gear drive
4，Motor: Servo motor drive, inverter control closed loop control
5，Printing method :Photosensitive resin plate, suitable for both water-based and alcohol-soluble inks
6，Printing Repeat: 400-1200mm

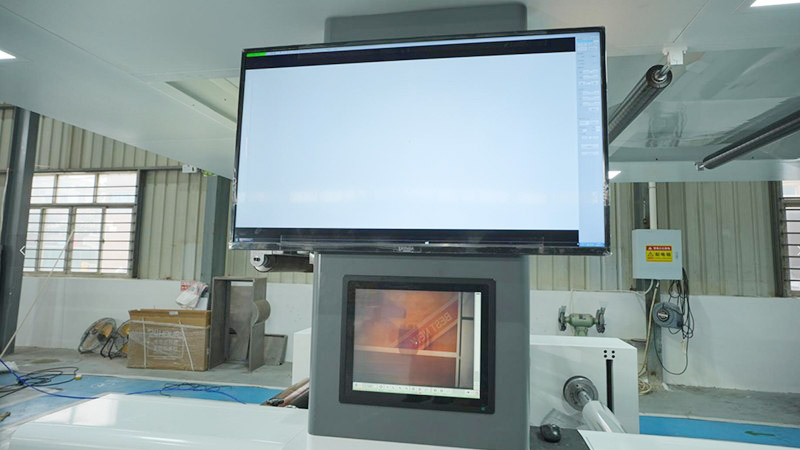

1,Check range: depends on the material width, arbitrarily setting. It is ok for adjustable point monitor or automatic back and forth.
1,Double-station Surface friction winding, Equipped with servo cutter, stable segment length
2,The tension control adopts ultra-light floating roller control, automatic tension compensation, closed-loop control, and arbitrary setting of taper tension (low-friction cylinder position detection, precision pressure regulator control, automatic alarm or shutdown when the roll diameter reaches the set value)
1.What is 4 Color CI Flexo Press used for?
4 Color CI Flexo Press is used for multi-color printing on paper, films, and woven materials, ideal for packaging and labeling industries.
2.Which materials can it print on?
It supports paper, PE/PP films, BOPP/OPP, and PP woven fabrics.
3.What are the main advantages of HuiPeng 4 Color CI Flexo Press?
High printing precision, stable tension control, quick job changeover, and long-term durability.
4.How does it improve production efficiency?
Central impression design ensures high-speed printing with minimal substrate waste and accurate color registration.
5.Is it suitable for short or long runs?
It is optimized for medium- to long-production runs, providing consistent print quality.
6.Can it handle complex graphics or multi-color designs?
Yes, the 4-color system allows clear and vibrant prints for complex patterns and branding requirements.
7.How does it compare to other flexo presses?
HuiPeng 4 Color CI Flexo Press offers higher precision, better substrate compatibility, and faster setup than many conventional flexo machines.
