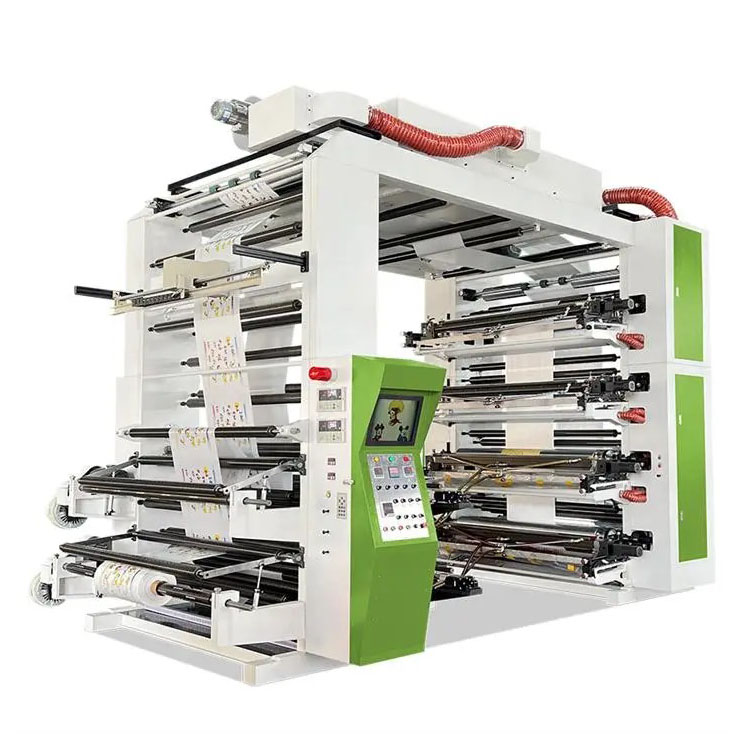

The Stack Flexo Printer is a flexographic printing device designed with a stacked structure. Its main feature is the vertical or horizontal arrangement of multiple individual printing units (printing stations) on the press, with each unit independently completing single-color printing. Multiple printing units stacked together achieve multi-color printing. This design is compact and suitable for multi-color, high-quality, and flexible flexographic printing needs. It is widely used in label, packaging, and film printing industries.

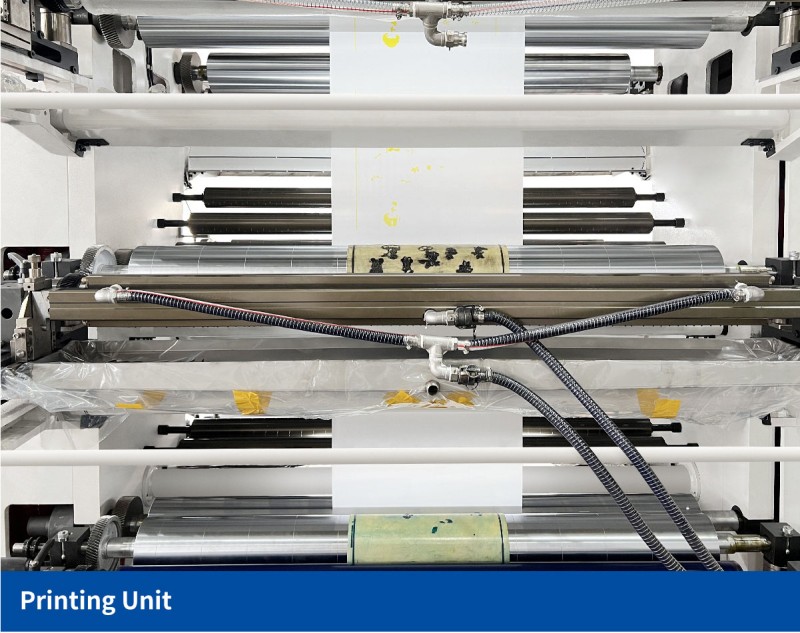

Stacked Printing Stations

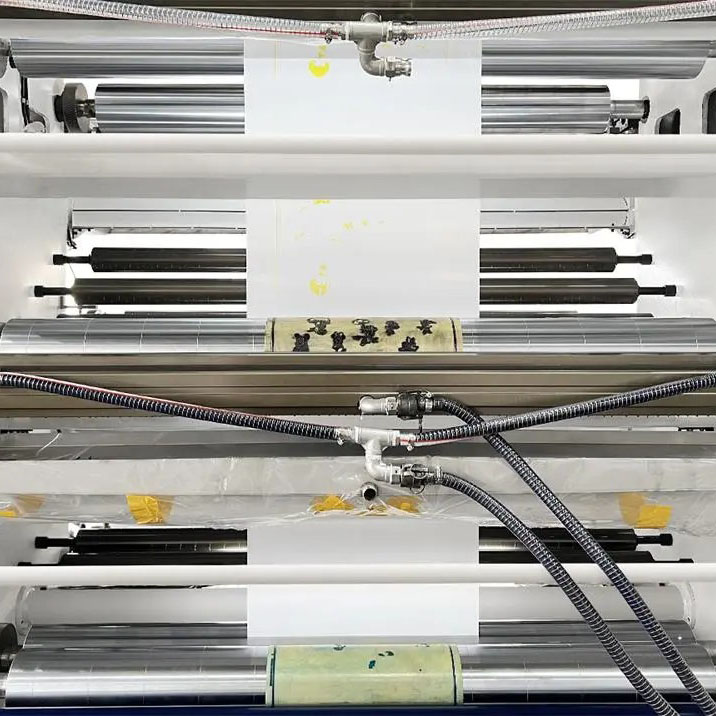

Multiple printing units are independently stacked, one color per station, making maintenance and adjustment convenient while allowing flexible color combinations.
High-Speed Multi-Color Printing
Supports multi-color flexographic printing with rich color layers, meeting complex pattern design requirements.
Modular Design
Printing units can be flexibly added or removed according to production needs, facilitating upgrades and customization.
Wide Material Compatibility
Capable of printing on paper, film, composite materials, and other flexible packaging materials.
Automated Control

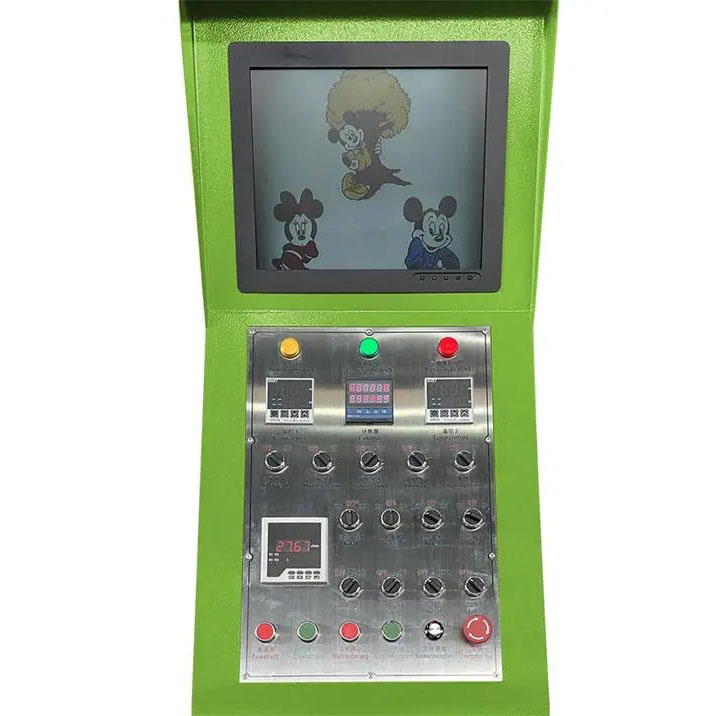

Equipped with a digital operation interface and tension control, making operation convenient and production stable.

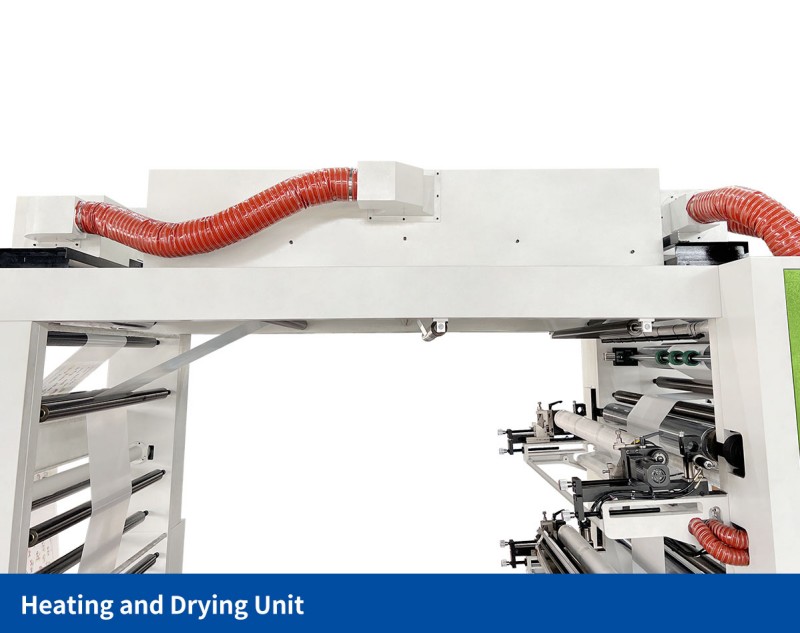

Efficient Drying System
Uses hot air, infrared, or UV curing devices to ensure rapid ink drying and improve print quality.
Paper and label materials
Plastic films (such as BOPP, PET, etc.)
Composite packaging films
Label printing
Food and beverage packaging
Pharmaceutical and cosmetic packaging
Industrial and consumer goods packaging
Compact structure, space-saving, suitable for multi-color printing
Flexible modular design, easy to adjust and expand
High-quality multi-color printing to meet diverse market needs
High degree of automation, improving production efficiency and stability
Compatible with a variety of materials, widely applicable
The Stack Flexo Printer is an ideal flexographic printing device for meeting multi-color and diversified printing needs. It is suitable for high-speed, high-quality flexible packaging and label printing production, helping enterprises enhance market competitiveness.
1.The frame is made of alloy cast iron with high strength and lower stress. It is casted by resin sand process and treated by vibration aging.

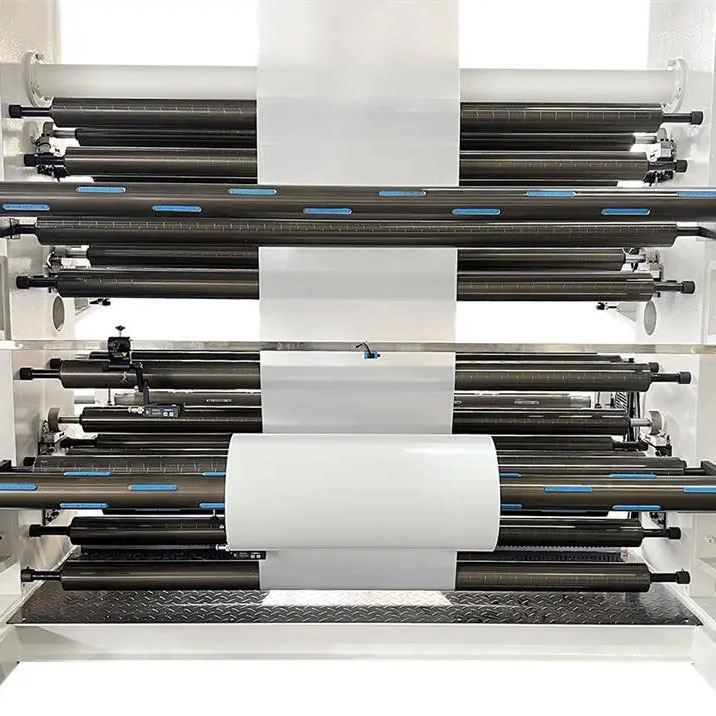

2.Integral type guide roller structure.
3.Assembled modularization in design.
4.Frame thickness 100mm
5.Guide roller Φ100mm (Surface anodic oxidation treatment)
| Model | CH8-600B-S | CH8-800B-S | CH8-1000B-S | CH8-1200B-S |
| Max. Web Width | 650mm | 850mm | 1050mm | 1250mm |
| Max. Printing Width | 560mm | 760mm | 960mm | 1160mm |
| Max. Machine Speed | 120m/min | |||
| Max. Printing Speed | 100m/min | |||

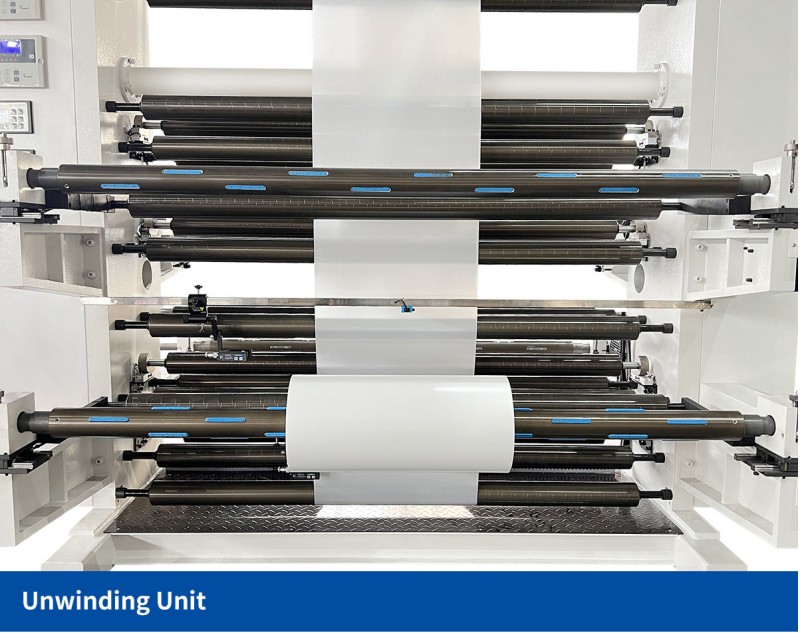

| Max. Unwind/Rewind Dia. | Φ600mm | |||
| Drive Type | Synchronous belt drive | |||
| Photopolymer Plate | To be specified | |||
| Ink | Water base ink or solvent ink | |||
| Printing Length (repeat) | 300mm-1300mm | |||
| Range Of Substrates | LDPE, LLDPE,HDPE, BOPP, CPP, PET, Nylon, | |||
| Electrical Supply | Voltage 380V. 50 HZ.3PH or to be specified | |||
1. stack flexo press can achieve the effect of double-sided printing in advance, and can also perform multi-color and single-color printing.
2. The stacked flexo printing machine is advanced and can help users automatically control the system of the printing machine itself by setting tension and registration.
3. Stacked flexo printing presses can print on a variety of plastic materials, even in roll form.

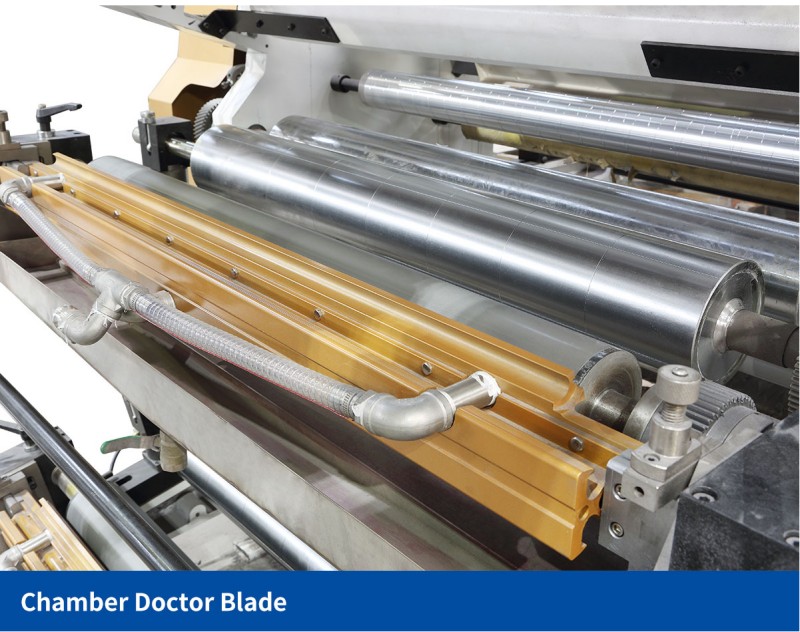

4. Because flexographic printing uses anilox rollers to transfer ink, ink will not fly during high-speed printing.
5. Independent drying system, using electric heating and adjustable temperature.
Jinjiang HuiPeng Printing Machinery Co., Ltd. is a professional R&D and manufacturing company specializing in satellite flexographic printing presses. With over a decade of industry experience, HuiPeng is committed to delivering efficient, precise, and durable printing solutions. Guided by quality as the cornerstone and innovation as the driving force, HuiPeng maintains rigorous quality control standards and advanced technological development to optimize production efficiency and printing precision.
●Certifications & Honors:
ISO 9001 certified
Multiple patents for flexographic printing innovations
Recognition in flexographic printing technology advancements
●Sustainability:
HuiPeng implements eco-friendly production practices, including material recycling and energy-efficient technologies, ensuring minimal environmental impact while maximizing productivity.
1. Can the printing units be customized?
Yes, units can be added or removed to meet your production requirements.
2. How fast is multi-color printing?
Up to 100 m/min printing speed, supporting high-speed, multi-color production.
3. Which inks are compatible?
Both water-based and solvent inks can be used.
4. Does it support double-sided printing?
Yes, the stacked design allows for single-color, multi-color, and double-sided printing.
5. What type of drying system does it have?
It includes hot air, infrared, and UV curing systems.
6. How precise is the registration?
Digital control ensures high registration accuracy for complex designs.
7. What after-sales support is provided?
Installation, debugging, operator training, 24-hour support, and optional on-site maintenance.
