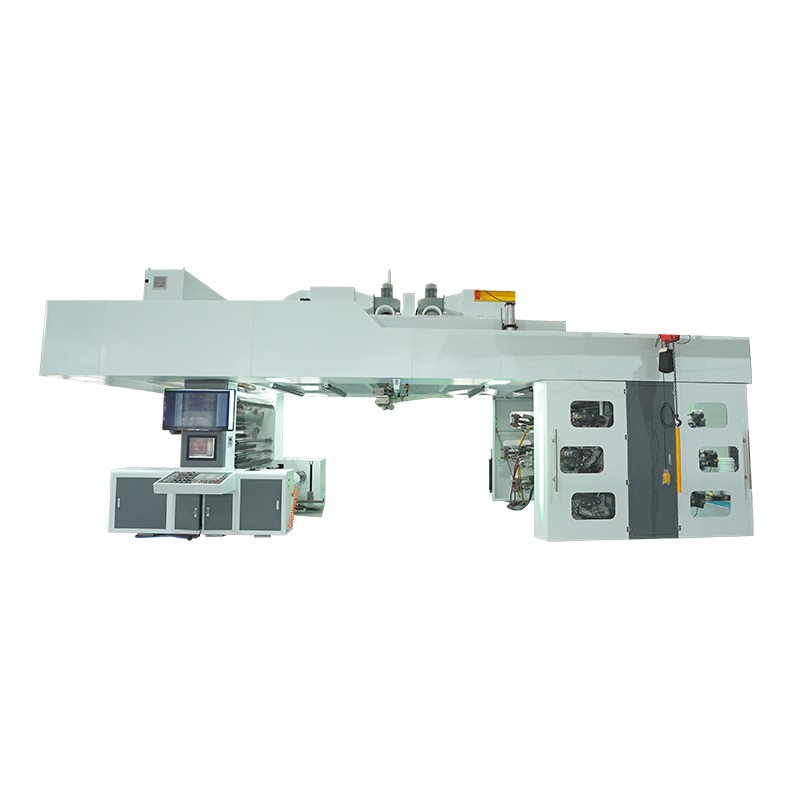

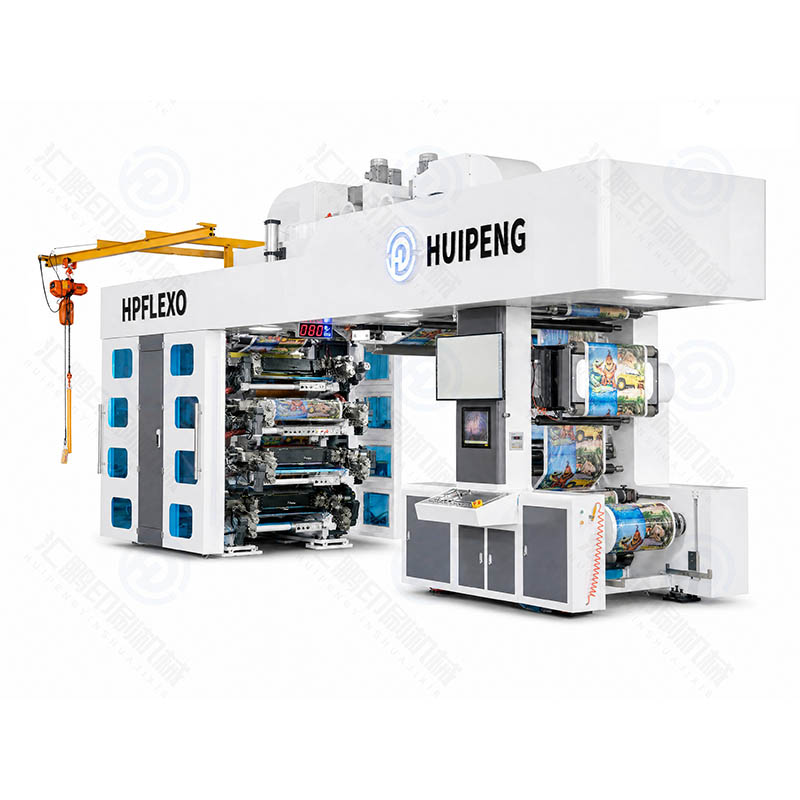

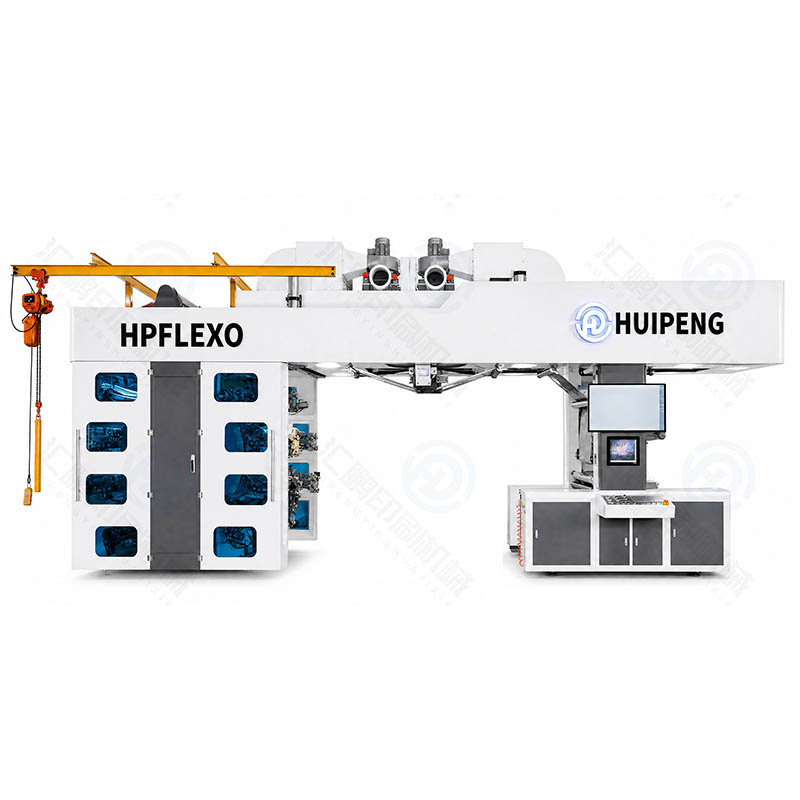

The PET CI Flexo Printing Machine is a central impression (CI) flexographic printing device specifically designed and manufactured for polyester films (PET). It adopts a central drum structure to ensure stable material wrapping and precise registration, supporting high-speed multi-color flexographic printing, and is widely used in high-quality plastic packaging applications.
Central Drum Structure
The film wraps around the central drum, ensuring even material tension and precise registration between printing plates, achieving high-quality multi-color printing.
Multi-Color Flexo Printing Units
Equipped with multi-station printing, supporting parallel multi-color printing to meet the requirements for complex patterns and vibrant colors.
High-Speed, High-Capacity
Designed for high-speed continuous production, meeting large batch order demands and improving production efficiency.
Advanced Drying Technology
Utilizes hot air, infrared, or UV curing systems to quickly cure ink, ensuring printing quality.
Automated Control System
Equipped with a digital operation interface and automatic tension and plate roll registration adjustments, effectively enhancing production stability and operational convenience.
Environmentally Friendly and Energy-Saving
Compatible with water-based and UV eco-friendly inks, the equipment features an energy-saving design that meets green printing standards.
PET film
Composite plastic packaging films
Various flexible packaging film materials
Widely used in:
Food and Beverage Packaging – PET films for snacks, drinks, and ready-to-eat products.
Pharmaceutical Packaging – High-precision printing for medicines and supplements.
Cosmetics and Personal Care – Labels and flexible packaging for beauty products.
Industrial Films – Protective and specialty PET films for electronics, textiles, and other industries.
Flexible Packaging Manufacturers – Multi-color, high-speed printing for various packaging types.
| Feature | Our Pet CI Flexo Printing Machine | Typical Competitor Machines |
| Printing Accuracy | ±0.1 mm high-precision registration | ±0.3 mm, may cause color misalignment |
| Speed | Up to 150 m/min production speed | Usually 80–120 m/min |
| Multi-Color Capability | Up to 8 colors per pass | Typically 4–6 colors |
| Material Handling | Stable PET film wrapping, low waste | Less stable, higher material waste |
| Customization | Flexible width and thickness adaptation | Limited options |
| After-Sales Support | Direct factory support, global service network | Often dependent on local distributors |
Central drum design ensures high registration accuracy and printing stability
Multi-color printing meets the visual requirements of complex and rich packaging
High-speed design improves production efficiency and handles large batch orders
Automated operation reduces human errors and enhances production continuity
Supports eco-friendly material applications, aligning with sustainable development trends
The PET CI Flexo Printing Machine is a core device for achieving high-quality, high-efficiency multi-color printing in the plastic packaging industry, helping to increase the added value of packaging products and market competitiveness.
| Model | HPCI-600B | HPCI-800B | HPCI-1000B | HPCI-1200B |
| Number of printing group | 4/6/8 | |||
| Max.web width | 650 | 850 | 1050 | 1250 |
| Max.printing width | 600 | 800 | 1000 | 1200 |
| Max.machine speed | 250m/min | |||
| Max.printing speed | 200m/min | |||
| Max.unwind/rewind Dia. | 800mm | |||
| Drive type | Central drum with gear drive | |||
| Ink | Water base ink or solvent ink | |||
| Printing lengh(repeat) | 350-800MM | |||
| Range of sbstrates | PP Wowen Bags,Paper-plastic bags | |||
| Electrical supply | Voltage 380v,50hz or to be specified | |||
1.Central impression type printing machine with better color registration. Due to the big drum, the printed material is supported by the big drum, and greatly improving color registration, especially with extensible materials.
2.All colors printing station drived by the central drum, Less transmission errors because of less gear transmission, increase the registration precision.
3.Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation.
4.The machine is equipped with blower and heater; and the heater employed central temperature control system, automatic temperature controller, and separated heat source.
5.The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.
6.Roller adopts special steel processing, and through special treatment, greatly reduce the beating range.
7.Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment, small resistance, beating small, achieves finally perfect printing effect.
8.Accurate printing effect achieved by special gear transmission device.
9.The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.
1. What types of PET films can this machine print on?
It supports biaxial oriented PET (BOPET), cast PET, and laminated PET films.
2. How many colors can it print simultaneously?
Up to 8 colors, depending on the configuration and printing width.
3. What is the maximum printing width?
Typically up to 1200 mm; customized widths are available.
4. Is this machine suitable for small-batch production?
Yes, it can be adjusted for both small and large batch production efficiently.
5. How precise is the color registration?
High-precision registration with ±0.1 mm accuracy ensures sharp multi-color prints.
6. Can the machine be customized for my packaging line?
Yes, we offer tailored solutions for film thickness, width, and production speed.
7. What certifications does this machine have?
CE, ISO, and other international export certifications are available.
8. How do I maintain the machine for long-term operation?
Regular cleaning, lubrication, and professional service from the factory team are recommended for optimal performance.
