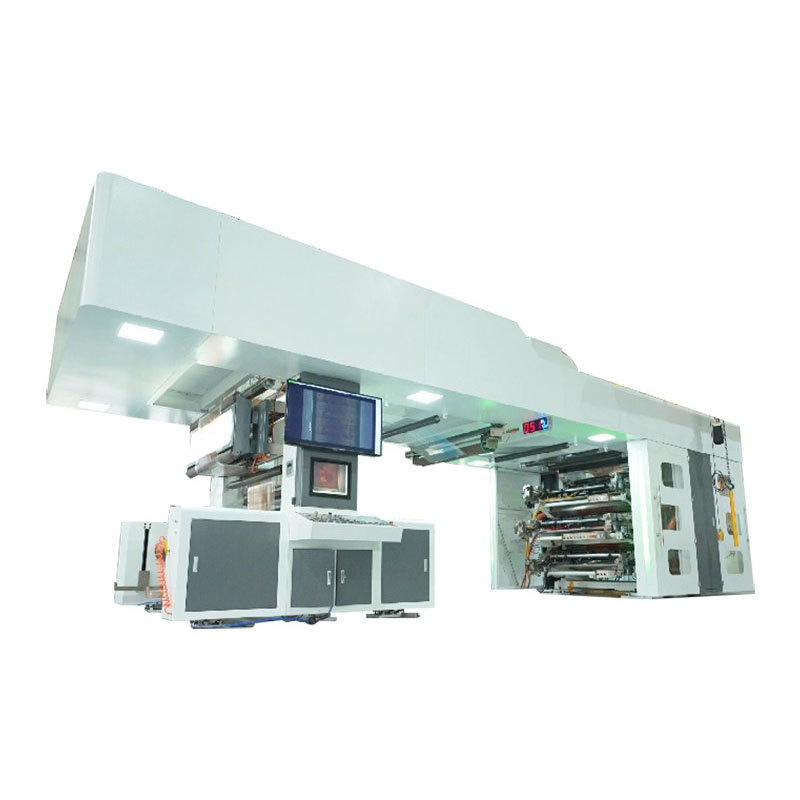

OPP CI Flexo Printing Machine

The OPP CI Flexo Printing Machine is a central impression (CI) flexographic printing device specifically designed for OPP (oriented polypropylene) films. This machine adopts a central cylinder structure to ensure stable wrapping of the film material, achieving high-precision, multi-color flexographic printing in high-speed production environments. It is widely used in the packaging industry.

Working Principle

The OPP CI flexo printing machine employs a central impression cylinder structure (CI Structure). Its core workflow includes:

Unwinding System: The OPP film is stably unwound via an automatic tension control device.

Ink Supply System: An anilox roller precisely controls the ink transfer amount, ensuring uniform printing.

Flexographic Printing Units: Each color has an independent printing unit, transferring image and text using a flexible plate.

Central Impression Drum: All printing units are arranged around the central cylinder, allowing for multi-color overprinting on the same cylinder, improving printing accuracy.

Drying System: Hot air or infrared drying ensures rapid ink drying.

Rewinding System: After printing, the material is automatically rewound, maintaining stable tension.

Main Features

Central Impression Design
Ensures that OPP films are tightly and evenly wrapped around the central cylinder, improving material tension control and registration accuracy, ensuring stability and consistency for multi-color printing.

Multi-Color Printing Capability
Equipped with multiple printing stations to achieve multi-color flexographic printing, meeting the requirements of complex patterns and colorful packaging.

High Speed and Efficiency
Supports high-speed continuous production, suitable for large-scale packaging material printing, improving production efficiency.

Advanced Drying System
Equipped with hot air, infrared, or UV drying devices to accelerate ink curing and enhance print quality.

Automated Control
Digital operation interface with automatic tension and registration systems, simplifying operation processes and improving production stability.

Environmentally Friendly and Energy Efficient
Compatible with water-based and UV eco-friendly inks, low energy consumption, meeting modern environmental requirements.

OPP CI Flexo Printing Machine VS Other Printing Equipment

Application

This equipment is primarily used in the flexible packaging and film printing industry. Common applications include:

Food packaging film printing

OPP candy packaging film

Snack packaging bags

Daily chemical product packaging film

Label and labeling materials

Composite packaging material printing

Due to its high transparency, good strength, and low cost, OPP material is widely used in the food and daily necessities packaging sector.

Advantages

The central cylinder design ensures high registration accuracy and continuous stable printing
Multi-color flexographic printing meets the needs of complex colors and multi-layered patterns
High-speed and efficient, suitable for large-scale industrial production
High degree of automation, easy operation, improving efficiency and reducing labor costs
Compatible with eco-friendly inks, enabling green printing production

The OPP CI Flexo Printing Machine is an ideal solution for achieving high-speed, high-quality flexographic printing in the plastic packaging industry, helping enterprises enhance packaging quality and market competitiveness.

Technical Specifications

Characteristics:

1.Central impression type printing machine with better color registration. Due to the big drum, the printed material is supported by the big drum, and greatly improving color registration, especially with extensible materials.
2.All colors printing station drived by the central drum, Less transmission errors because of less gear transmission, increase the registration precision.
3.Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation.
4.The machine is equipped with blower and heater; and the heater employed central temperature control system, automatic temperature controller, and separated heat source.
5.The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.
6.Roller adopts special steel processing, and through special treatment, greatly reduce the beating range.
7.Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment, small resistance, beating small, achieves finally perfect printing effect.
8.Accurate printing effect achieved by special gear transmission device.
9.The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.

Paper：

Film：

FAQ

1. What materials can an OPP CI Flexo Printing Machine print on?

It is mainly used for OPP film, but it can also print on BOPP, CPP, PE, PET, and other flexible packaging films.

2. How many colors can a CI flexo printing machine support?

Most machines support 4 to 10 colors, depending on the configuration required by the packaging printer.

3. What is the typical printing speed?

Modern CI flexographic printing presses can reach speeds of 250–500 meters per minute, depending on material and design complexity.

4. What type of ink does the machine use?

The machine supports water-based ink, solvent-based ink, and UV ink, depending on the packaging material and printing requirements.

5. Why is the CI structure better for film printing?

The central impression cylinder stabilizes the film during printing, reducing stretching and ensuring accurate multi-color registration.

6. Is the OPP CI Flexo Printing Machine suitable for large-scale production?

Yes. It is designed for high-speed continuous printing, making it ideal for mass production of flexible packaging.

7. Can the machine be customized?

Yes. Professional CI flexo printing machine manufacturers can customize printing width, color units, drying systems, and automation features according to production needs.

8. What industries commonly use this machine?

Industries such as food packaging, daily chemical packaging, pharmaceutical packaging, and label manufacturing widely use CI flexographic printing presses.
