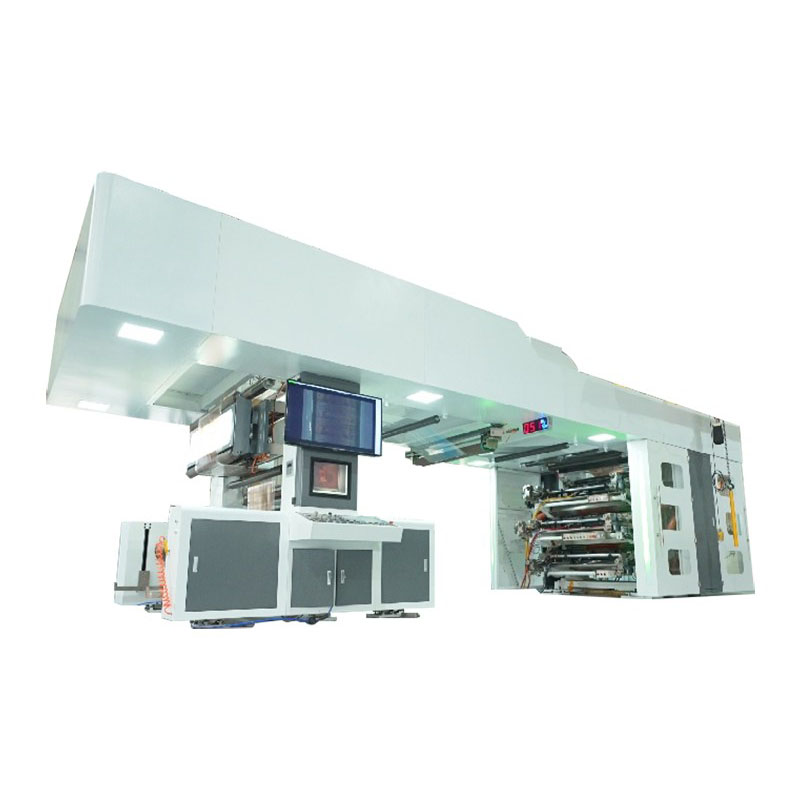

The HP 6 Color CI Flexo Press is a professional central-impression flexographic printing solution exclusively engineered by HP, integrating industrial-grade precision, efficient workflow, and stable 6-color printing capability. Designed for medium-to-long production runs in flexible packaging, labels, and film converting industries, this press combines HP’s decades of printing technology accumulation with user-centric design, delivering richer color expression, consistent high-definition output, reduced operational costs, and enhanced production efficiency for converters worldwide. Based on the classic 4-color CI flexo technology, it adds two additional color units to break through the color limitation of traditional process printing, realizing more delicate color transitions and more accurate color reproduction.
1. Central Impression Cylinder
Provides uniform pressure, ensuring stable material tension and preventing stretching and misalignment.

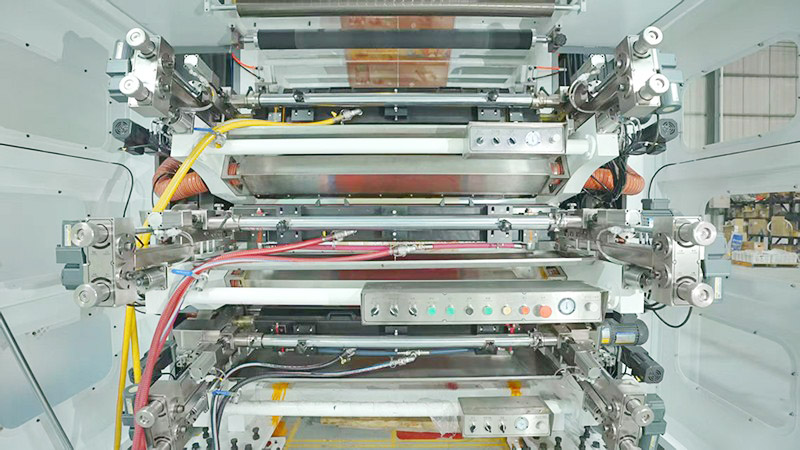

2. Printing Units
Six independent printing units enable high-precision six-color printing.
Equipped with a flexographic cylinder and inking system to ensure uniform color.
3. Inking System
Adjustable inking roller system supports water-based, UV, and oil-based inks to meet the needs of different materials.
4. Drying System
Air drying or UV curing ensures uniform ink drying and prevents sticking during high-speed printing.
5. Tension Control System
Tension sensors and automatic adjustment devices ensure smooth and continuous transport of films, paper, or composite materials.
6. Rewinding & Slitting System
Automatic rewinding of printed materials; optional slitting devices meet different roll width requirements.
7. Operation Control System (PLC / Touch Screen)
Human-machine interface control facilitates quick color adjustment, speed adjustment, and production status monitoring.
1. Precise 6-Color Registration & Superior Color Expression
Equipped with a large-diameter central impression drum—the core component of CI flexo technology—this press ensures uniform web tension and zero substrate shift throughout the printing process, achieving ±0.1mm registration accuracy even on thin, stretchable films. With 812 dpi image resolution (up to 2438 x 2438 dpi HDI for high-definition imaging) and support for lineatura ranging from 175 to 210 lpi, it reproduces sharp details, smooth color transitions, and consistent color saturation across all six process colors (Cyan, Magenta, Yellow, Black, Orange, Purple). Referring to HP IndiChrome six-color printing technology, the additional orange and purple units effectively expand the color gamut, making it possible to reproduce difficult-to-achieve colors such as flesh tones, sky blue, and metallic-like hues, while reducing color drift and ensuring more realistic image restoration[superscript:2][superscript:3]. The closed inking unit with chambered doctor blades ensures even ink feeding, minimizing dot gain and ensuring flawless color consistency from the first print to the last batch.
2. High-Speed Productivity & Reduced Waste
Optimized for efficiency, the HP 6 Color CI Flexo Press features a gearless servo drive system that enables stable high-speed operation: up to 28 m/min in 6-color mode, 38 m/min in enhanced productivity mode, and up to 60 m/min in 1-4 color modes. The fast-sleeve change design minimizes make-ready time, while automatic tension control and pre-registration functions reduce material waste and shorten setup cycles. Drawing on HP’s intelligent automation technology, the press is equipped with enhanced visual systems to reduce operator intervention, and automatic calibration functions to track registration and key quality parameters in real time, further improving production efficiency and yield. This combination of speed and efficiency makes it ideal for high-volume production, helping converters meet tight delivery deadlines without compromising print quality.
3. Broad Substrate Compatibility & Versatile Applications
This press supports a wide range of substrates, including pressure-sensitive label paper, plain paper, non-compatible films, cardboard, PE, BOPP, PET, aluminum foil, and laminates, with substrate thickness ranging from 12 to 450 microns (0.5 to 18 points) and maximum web width of 340 mm—consistent with HP’s high-standard substrate adaptability requirements for flexo presses. It is perfectly suited for printing high-end food packaging, premium daily chemical labels, high-grade industrial packaging, luxury shopping bags, and high-definition promotional materials, catering to the diverse needs of the high-end packaging and converting industries. Additionally, it is compatible with water-based, solvent-based, and UV inks, supports HP IndiChrome ink mixing system (IMS) for on-press and off-press spot color creation, and meets global environmental standards, supporting eco-friendly printing requirements[superscript:2].
4. Intelligent Operation & Smart Workflow Integration

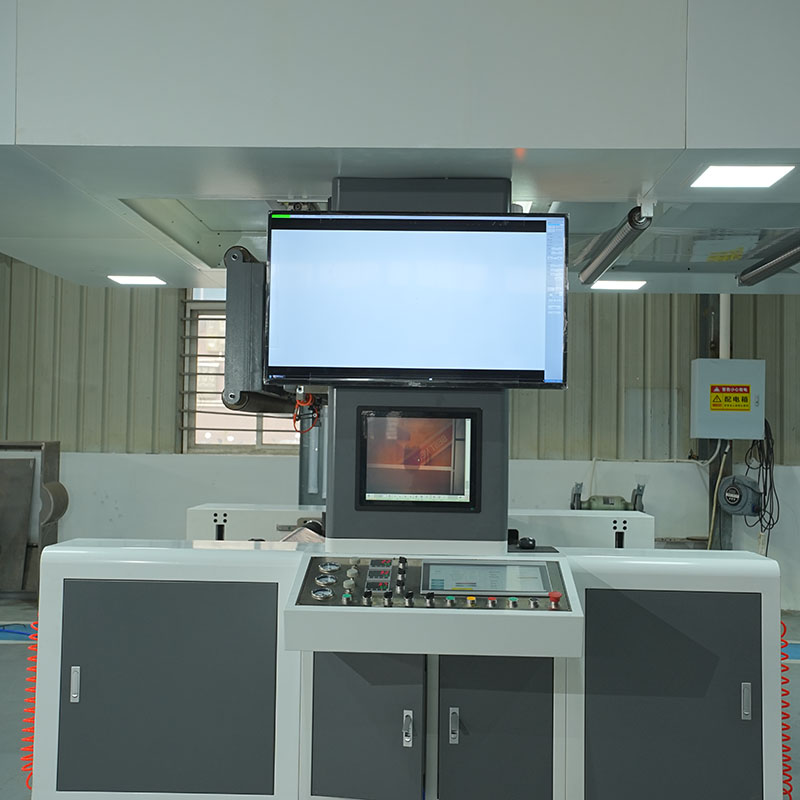

Designed for ease of use, the press is equipped with a user-friendly PLC touch screen, allowing operators to adjust parameters, monitor production status, and troubleshoot quickly. Optional video inspection and auto-registration systems further simplify operation, reducing manual intervention and improving yield. It also supports cloud connectivity via HP PrintOS X, enabling remote monitoring, workflow management, and data analysis to optimize production efficiency and reduce downtime—consistent with HP’s smart workflow integration concept for industrial printing equipment[superscript:2]. The robust mechanical structure ensures long-term stable operation, with low maintenance requirements and a service life that delivers long-term return on investment.
5. HP Brand Reliability & Eco-Friendly Design
Backed by HP’s global reputation for quality and innovation, the 6 Color CI Flexo Press undergoes strict quality testing before leaving the factory, complying with ISO9001 and CE international certifications to ensure compliance with global quality and safety standards. It adopts eco-friendly design concepts, supporting recyclable monomaterial structures and solvent-free lamination, while water-based inks reduce environmental impact, aligning with the industry’s sustainable development trends. With HP’s global after-sales service network, converters can enjoy timely technical support and spare parts supply, ensuring uninterrupted production—inherit the reliable quality assurance of HP printing equipment series.
Converters, packaging manufacturers, and print shops seeking a reliable, high-performance 6-color CI flexo press to handle medium-to-long production runs. It is particularly suitable for businesses focusing on high-end flexible packaging, premium label printing, and high-definition film converting, who prioritize rich color expression, print quality, production efficiency, and cost control, while requiring the reliability and technical support of a global brand like HP. It is also an ideal choice for enterprises that need to undertake high-value printing projects and pursue differentiated competitive advantages in color reproduction
| Model | HPCI-600B | HPCI-800B | HPCI-1000B | HPCI-1200B |
| Number of printing group | 4/6/8 | |||
| Max.web width | 650 | 850 | 1050 | 1250 |
| Max.printing width | 600 | 800 | 1000 | 1200 |
| Max.machine speed | 250m/min | |||
| Max.printing speed | 200m/min | |||
| Max.unwind/rewind Dia. | 800mm | |||
| Drive type | Central drum with gear drive | |||
| Ink | Water base ink or solvent ink | |||
| Printing lengh(repeat) | 350-800MM | |||
| Range of sbstrates | PP Wowen Bags,Paper-plastic bags | |||
| Electrical supply | Voltage 380v,50hz or to be specified | |||
● The machine introduction & absorption of European technology / process manufacturing, supporting / full functional.
● After mounting the plate and registration, no longer need registration, improve yield.
● Replacing 1 set of Plate Roller (unloaded old roller, installed six new roller after tightening), only 20 Minute registration can be done by printing.
● The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
● Maximum production machine speed up 200m/min, registration accuracy ±0.10mm.
● The overlay accuracy does not change during lifting running speed up or down.
● When machine stop, Tension can be maintained, the substrate is not deviation shift.
● The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield.
● With precision structural, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.
1,Center-driven unwinding, equipped with magnetic powder brake, equipped with automatic tension control；
2,Tension control: Ultra-light floating roller control, automatic tension compensation,closed loop control;
3,It has the function of automatic shutdown when the material is interrupted, and the tension maintains the function to avoid the substrate slack and deviation during the shutdown
4, Configure automatic EPC system before printing EPC: Before printing, a four-roller automatic EPC ultrasonic probe correction system has manual/automatic/center return functions, and the left and right translation can be adjusted by ±65mm.
1，Type : CI Flex Printing Machine
2，Color: 4 colors on the front + 4 colors on the back
3，Drive mode: Servo gear drive
4，Motor: Servo motor drive, inverter control closed loop control
5，Printing method :Photosensitive resin plate, suitable for both water-based and alcohol-soluble inks
6，Printing Repeat: 400-1200mm

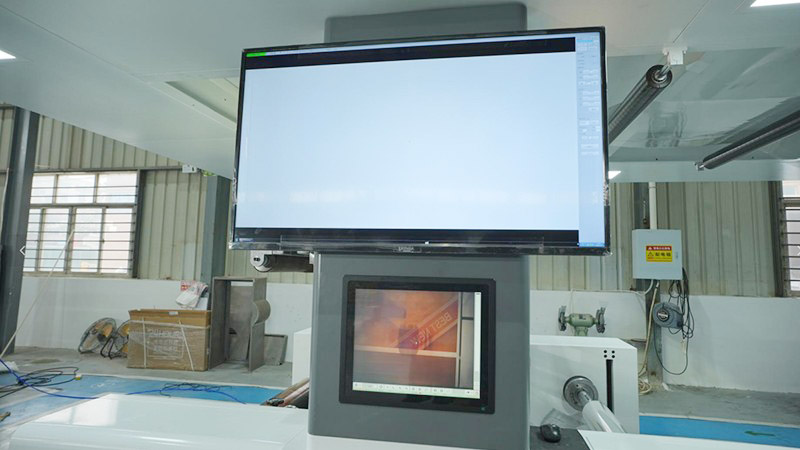

1,Check range: depends on the material width, arbitrarily setting. It is ok for adjustable point monitor or automatic back and forth.
1,Double-station Surface friction winding, Equipped with servo cutter, stable segment length
2,The tension control adopts ultra-light floating roller control, automatic tension compensation, closed-loop control, and arbitrary setting of taper tension (low-friction cylinder position detection, precision pressure regulator control, automatic alarm or shutdown when the roll diameter reaches the set value)
Q: What materials can the 6 Color CI Flexo Press print on?
A: It supports paper, PE, PP, BOPP, PET film, and composite materials.
Q: What is the printing speed?
A: Depending on the material and ink, the standard speed can reach 150-200 meters per minute.
Q: How is color registration accuracy guaranteed?
A: The central impression cylinder and automatic tension control system achieve high-precision color registration with an error of less than ±0.1mm.
Q: Are there any restrictions on ink types?
A: It can use water-based, UV, or oil-based flexographic inks to meet different production needs.
Q: Is it suitable for mass production or small batches?
A: It is suitable for medium to large batch continuous printing; small batches can also be achieved through quick plate changes.
Q: Is machine maintenance complex?
A: Modular design, simple cleaning and plate changes, and easy-to-monitor control panel.
Q: Can the printing width be customized?
A: The printing width can be customized according to customer needs; standard widths are available from 600-1600mm.
Q: What are the advantages of the HuiPeng brand?
A: HuiPeng focuses on the research and development of flexographic printing equipment, ensuring high precision, high efficiency, stability and durability, while providing global after-sales support.
