The Bag CI Flexo Press by HuiPeng offers high-speed, multi-color printing for bags with excellent registration accuracy. As a reliable China manufacturer and supplier, HuiPeng ensures durable, energy-efficient, and customizable printing machines suitable for diverse packaging applications. Ideal for B2B buyers seeking quality flexographic solutions.

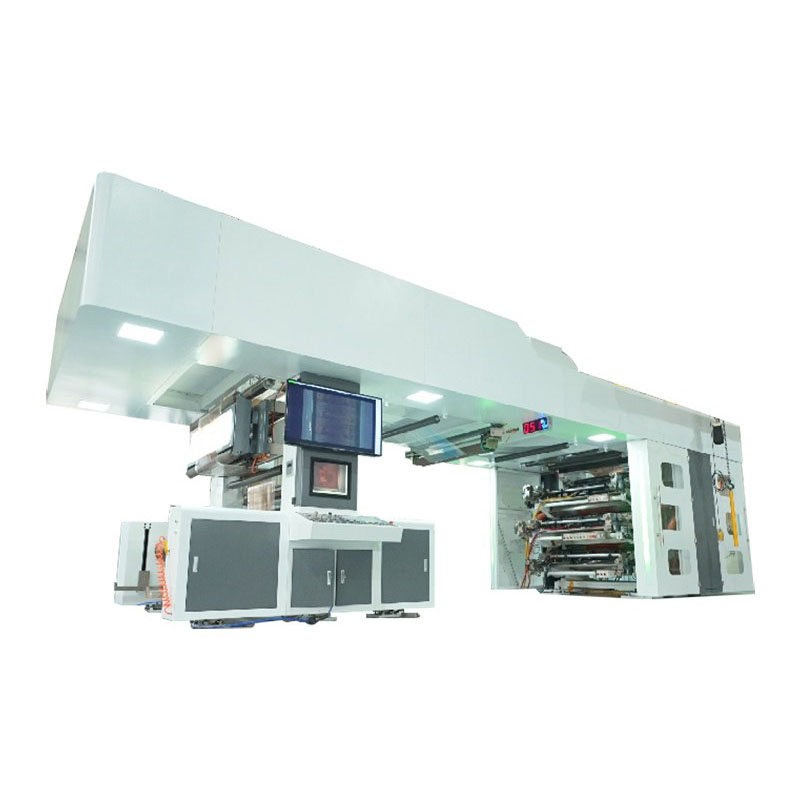

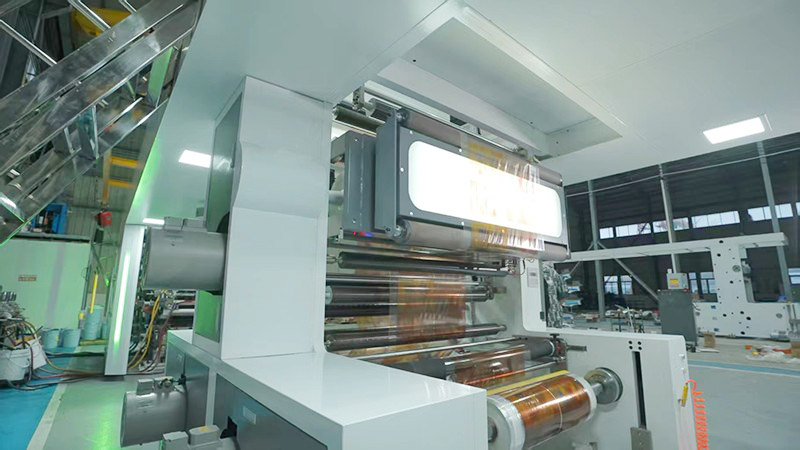

What is Bag CI Flexo Press?
The Bag CI Flexo Press, also known as a Central Impression (CI) flexographic printing machine, is specifically designed for bag printing applications. The machine wraps the bag material around a central impression cylinder and uses multiple flexible printing plates to produce sharp, vibrant graphics with high precision. It is suitable for printing plastic bags, paper bags, non-woven bags, and other flexible packaging materials.
Central Impression Design
Thin films or paper wrap around the central impression cylinder for stable operation, ensuring precise registration and consistent multi-color printing results.
High Speed and Efficiency
The equipment supports high-speed operation, meeting large-scale production needs and improving output and efficiency.
Multi-Color Flexographic Printing
The multi-station design supports simultaneous multi-color printing with vibrant colors and rich layers, suitable for complex pattern requirements.
Advanced Drying System
Equipped with hot air, infrared, or UV drying equipment to accelerate ink drying and ensure product quality.
Automated Control
Digital operation interface and automatic tension control system simplify the operation process and enhance production stability.
Environmentally Friendly and Energy Saving
Supports environmentally friendly water-based or UV inks; the equipment operates efficiently, reducing environmental pollution.

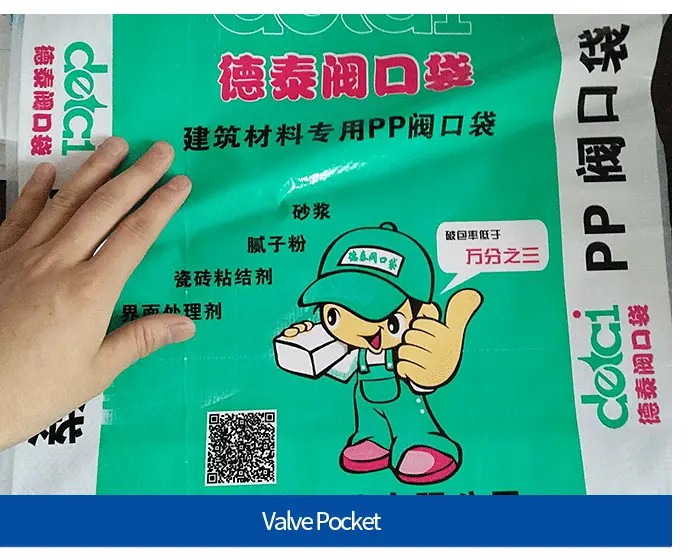

PE bags (Polyethylene bags)
PP bags (Polypropylene bags)
Composite flexible packaging materials
Various plastic shopping bags and food packaging bags
Food packaging bag printing (e.g., vegetable bags, snack bags)
Shopping and promotional bags
Medical and sanitary bags
Industrial packaging bags
Printing for other flexible packaging products
The central impression structure ensures high-precision and stable printing results
Suitable for printing on various plastic films and composite materials
High degree of automation, simple operation, improving production efficiency
Printing colors are vibrant, images are clear, meeting brand packaging requirements
Environmentally friendly and energy-saving, aligning with the sustainable development needs of the modern packaging industry
The Bag CI flexographic printing machine is an efficient and premium choice in the plastic bag and flexible packaging printing industry, helping enterprises enhance packaging quality and market competitiveness.
Compared to standard satellite flexo machines, the Bag CI Flexo Press offers:
Better registration accuracy due to central impression design
Higher production speed for long-run bag printing
More adaptability to various bag materials
Enhanced durability and lower maintenance needs
| Model | HPCI-600B | HPCI-800B | HPCI-1000B | HPCI-1200B |
| Number of printing group | 4/6/8 | |||
| Max.web width | 650 | 850 | 1050 | 1250 |
| Max.printing width | 600 | 800 | 1000 | 1200 |
| Max.machine speed | 250m/min | |||
| Max.printing speed | 200m/min | |||
| Max.unwind/rewind Dia. | 800mm | |||
| Drive type | Central drum with gear drive | |||
| Ink | Water base ink or solvent ink | |||
| Printing lengh(repeat) | 350-800MM | |||
| Range of sbstrates | PP Wowen Bags,Paper-plastic bags | |||
| Electrical supply | Voltage 380v,50hz or to be specified | |||
● The machine introduction & absorption of European technology / process manufacturing, supporting / full functional.
● After mounting the plate and registration, no longer need registration, improve yield.
● Replacing 1 set of Plate Roller (unloaded old roller, installed six new roller after tightening), only 20 Minute registration can be done by printing.
● The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
● Maximum production machine speed up 200m/min, registration accuracy ±0.10mm.
● The overlay accuracy does not change during lifting running speed up or down.
● When machine stop, Tension can be maintained, the substrate is not deviation shift.
● The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield.
● With precision structural, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.

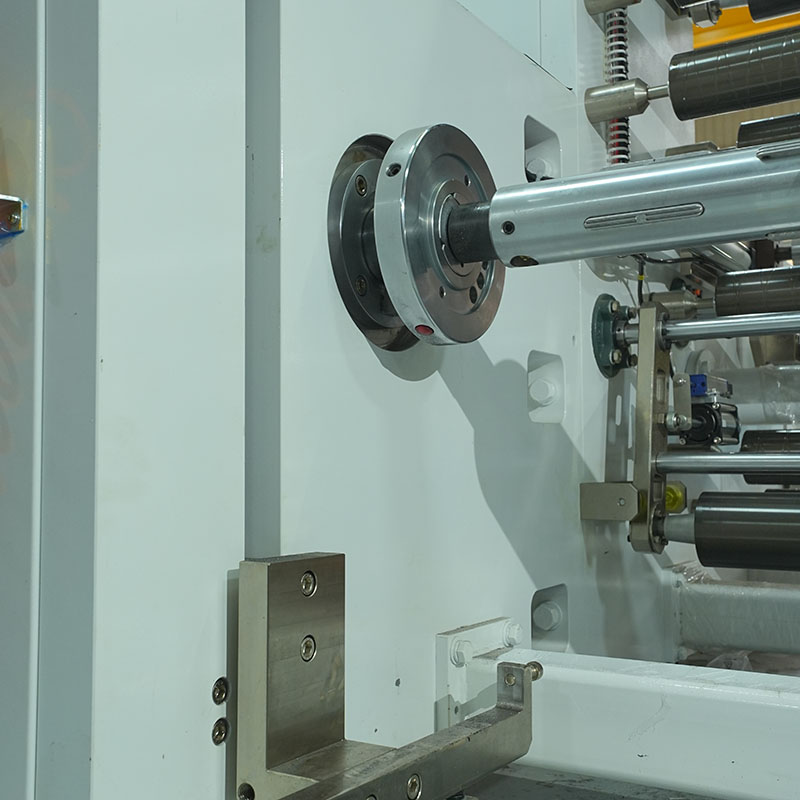

1,Center-driven unwinding, equipped with magnetic powder brake, equipped with automatic tension control；
2,Tension control: Ultra-light floating roller control, automatic tension compensation,closed loop control;
3,It has the function of automatic shutdown when the material is interrupted, and the tension maintains the function to avoid the substrate slack and deviation during the shutdown
4, Configure automatic EPC system before printing EPC: Before printing, a four-roller automatic EPC ultrasonic probe correction system has manual/automatic/center return functions, and the left and right translation can be adjusted by ±65mm.
1，Type : CI Flex Printing Machine
2，Color: 4 colors on the front + 4 colors on the back
3，Drive mode: Servo gear drive
4，Motor: Servo motor drive, inverter control closed loop control
5，Printing method :Photosensitive resin plate, suitable for both water-based and alcohol-soluble inks
6，Printing Repeat: 400-1200mm

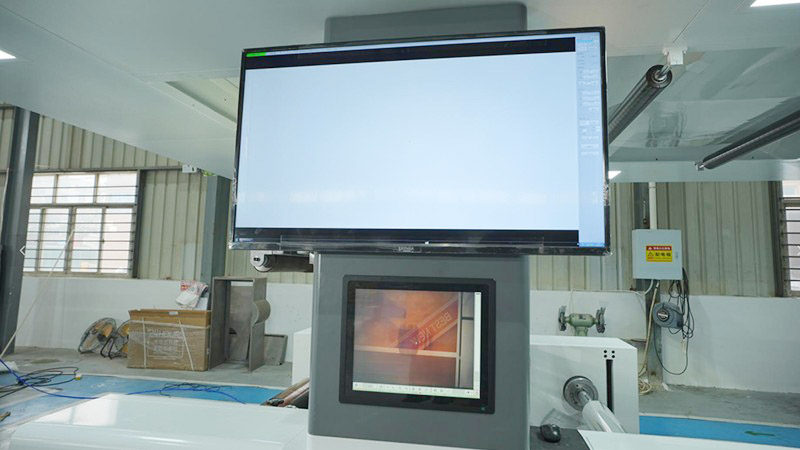

1,Check range: depends on the material width, arbitrarily setting. It is ok for adjustable point monitor or automatic back and forth.
1,Double-station Surface friction winding, Equipped with servo cutter, stable segment length
2,The tension control adopts ultra-light floating roller control, automatic tension compensation, closed-loop control, and arbitrary setting of taper tension (low-friction cylinder position detection, precision pressure regulator control, automatic alarm or shutdown when the roll diameter reaches the set value)
1.What types of bags can this machine print?
It can print plastic, paper, and non-woven bags in multiple colors.
2.How many colors can the machine handle?
Standard models support 4-6 colors, and custom configurations are available.
3.Can the machine be customized for specific bag sizes?
Yes, HuiPeng can adjust the press to meet your bag dimensions and production needs.
4.What is the production speed?
Speeds vary by model but typically range from 50-200 meters per minute depending on bag material and color count.
5.Does HuiPeng provide installation and training?
Yes, engineers offer on-site installation, debugging, and operator training globally.
6.Is it energy-efficient?
Yes, the press incorporates advanced energy-saving technologies to reduce operational costs.
7.What kind of maintenance is required?
Routine maintenance is minimal; HuiPeng offers 24-hour support for any technical issues.
8.How does it compare to other CI flexo presses?
It offers higher registration precision, faster printing speed, and better adaptability for various bag materials.
