Box CI Flexo Press is ideal for manufacturers, suppliers, and factories looking for efficient, high-precision printing solutions for their packaging production.

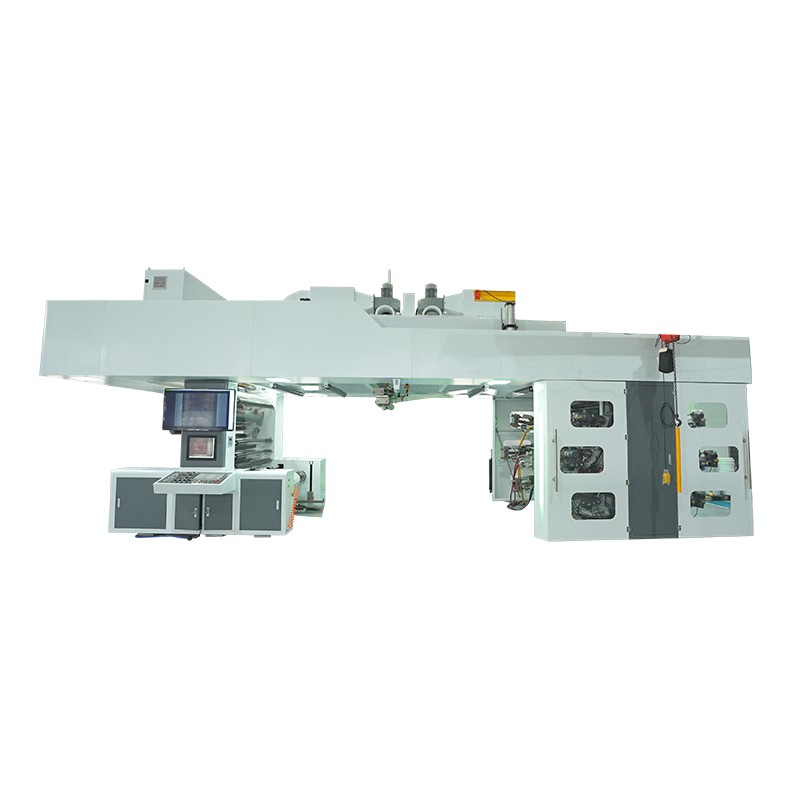

A Box CI Flexo Press is a type of flexographic printing machine designed specifically for printing on folding cartons, corrugated boxes, and other box-type packaging. The “CI” stands for Central Impression, meaning the printing substrate is wrapped around a central impression cylinder, which ensures precise registration and uniform printing pressure across all colors.
This press allows high-speed, multi-color, and high-quality printing on various paperboard and carton materials. It is widely used in industries such as food packaging, cosmetics, pharmaceuticals, and consumer goods.
Central Impression Design

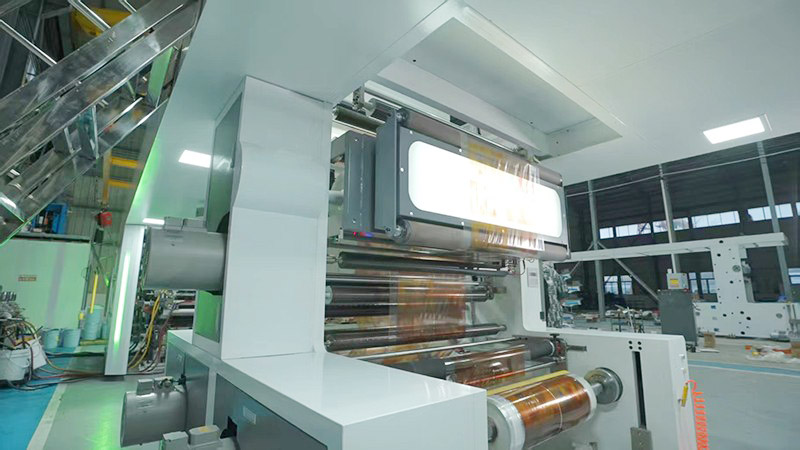

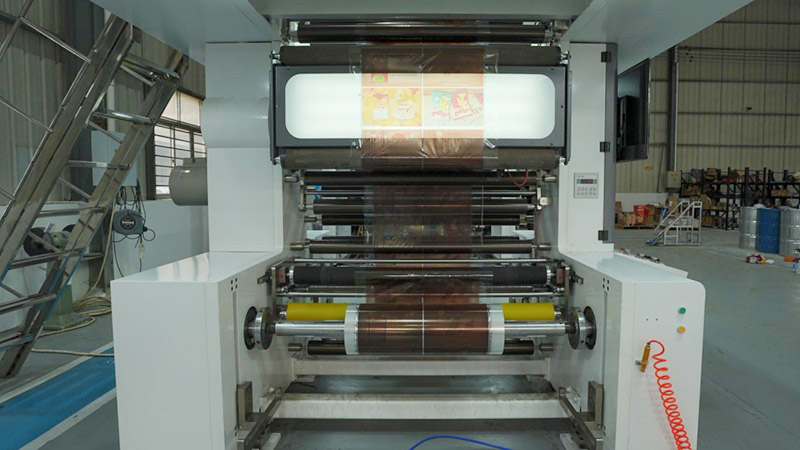

Adopts a central impression cylinder structure, ensuring a stable material path and precise overprinting between multiple color plates for consistent printing.
High-Speed Printing
Supports high-speed operation, meeting the demands of large-scale, efficient production in carton printing.
Multi-Color Flexographic Printing

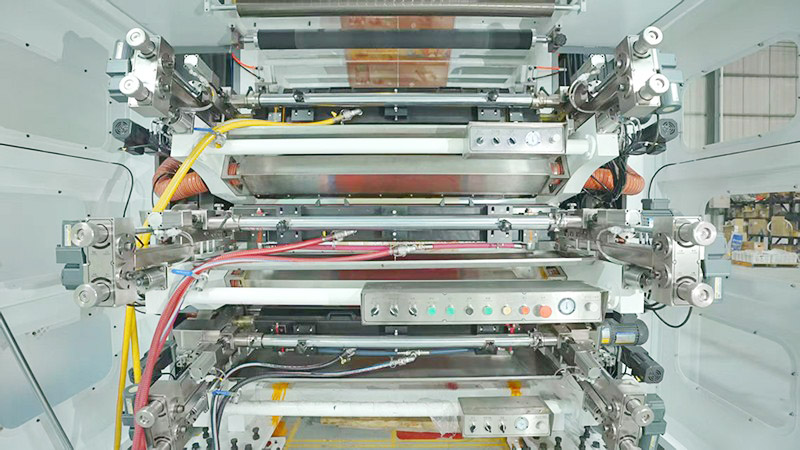

Multi-station design supports simultaneous multi-color printing with bright colors and clear patterns, suitable for complex packaging design needs.
Automated Control System

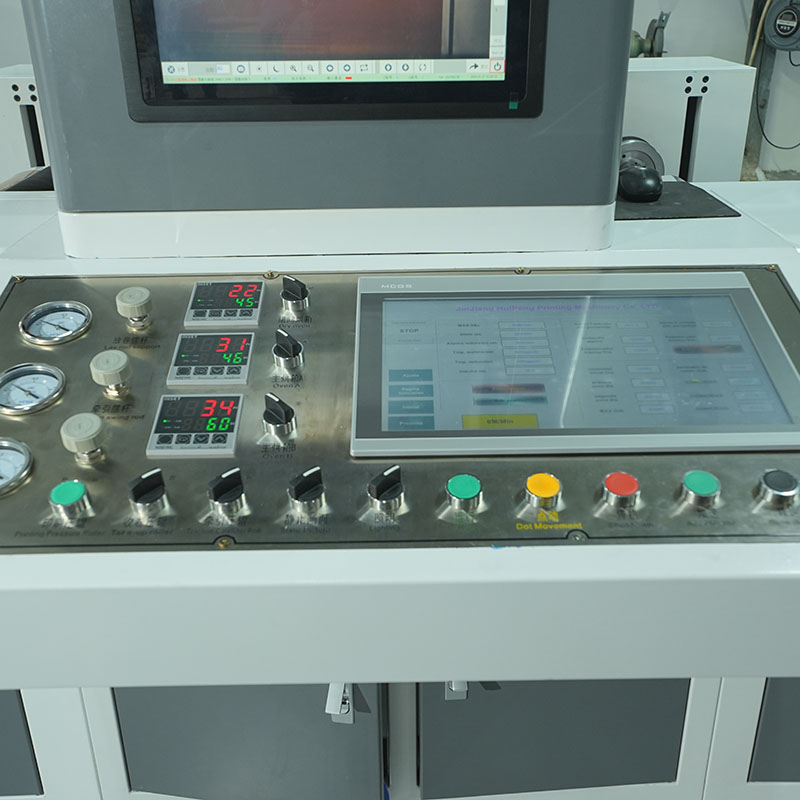

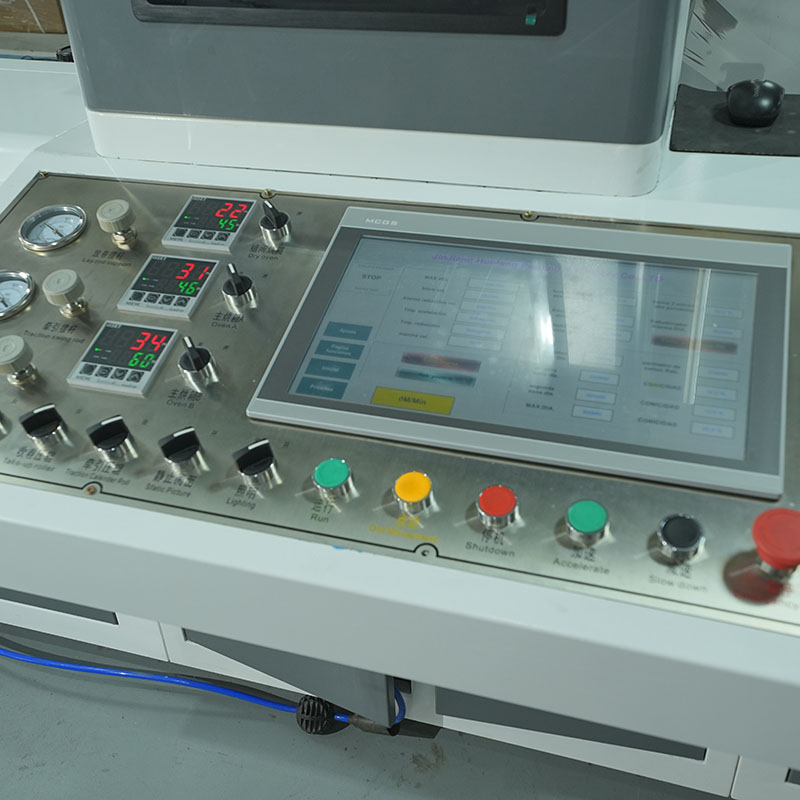

Equipped with a digital operation interface, automatic tension control, and other advanced systems, making operation simple and convenient while improving production efficiency and repeatability.
Sturdy and Durable Structure
Built with high-quality materials and precision manufacturing processes, ensuring stable operation and adapting to continuous high-intensity work environments.
Environmentally Friendly and Energy Efficient
Supports water-based eco-friendly inks, has low energy consumption, and meets the trend of modern green printing.
Single and double-sided corrugated cardboard
Carton cardboard
Various packaging paper materials
Printing of cartons and corrugated boxes
Express packaging boxes
Electronic product packaging boxes
Food packaging boxes
Industrial and consumer goods packaging
Central impression design ensures color accuracy and printing quality
Suitable for high-intensity, large-scale carton packaging printing needs
Automated control enhances production efficiency and reduces labor costs
Consistent printing results meet complex multi-color printing tasks
Durable and easy-to-maintain equipment, suitable for long-term production use
The Box CI Flexographic Printing Machine is an ideal choice for achieving high-efficiency, high-quality printing in the carton packaging industry, helping enterprises improve packaging visual impact and market competitiveness.
| Model | HPCI-600B | HPCI-800B | HPCI-1000B | HPCI-1200B |
| Number of printing group | 4/6/8 | |||
| Max.web width | 650 | 850 | 1050 | 1250 |
| Max.printing width | 600 | 800 | 1000 | 1200 |
| Max.machine speed | 250m/min | |||
| Max.printing speed | 200m/min | |||
| Max.unwind/rewind Dia. | 800mm | |||
| Drive type | Central drum with gear drive | |||
| Ink | Water base ink or solvent ink | |||
| Printing lengh(repeat) | 350-800MM | |||
| Range of sbstrates | PP Wowen Bags,Paper-plastic bags | |||
| Electrical supply | Voltage 380v,50hz or to be specified | |||
● The machine introduction & absorption of European technology / process manufacturing, supporting / full functional.
● After mounting the plate and registration, no longer need registration, improve yield.
● Replacing 1 set of Plate Roller (unloaded old roller, installed six new roller after tightening), only 20 Minute registration can be done by printing.
● The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
● Maximum production machine speed up 200m/min, registration accuracy ±0.10mm.
● The overlay accuracy does not change during lifting running speed up or down.
● When machine stop, Tension can be maintained, the substrate is not deviation shift.
● The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield.
● With precision structural, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.
1,Center-driven unwinding, equipped with magnetic powder brake, equipped with automatic tension control；
2,Tension control: Ultra-light floating roller control, automatic tension compensation,closed loop control;
3,It has the function of automatic shutdown when the material is interrupted, and the tension maintains the function to avoid the substrate slack and deviation during the shutdown
4, Configure automatic EPC system before printing EPC: Before printing, a four-roller automatic EPC ultrasonic probe correction system has manual/automatic/center return functions, and the left and right translation can be adjusted by ±65mm.
1，Type : CI Flex Printing Machine
2，Color: 4 colors on the front + 4 colors on the back
3，Drive mode: Servo gear drive
4，Motor: Servo motor drive, inverter control closed loop control
5，Printing method :Photosensitive resin plate, suitable for both water-based and alcohol-soluble inks
6，Printing Repeat: 400-1200mm

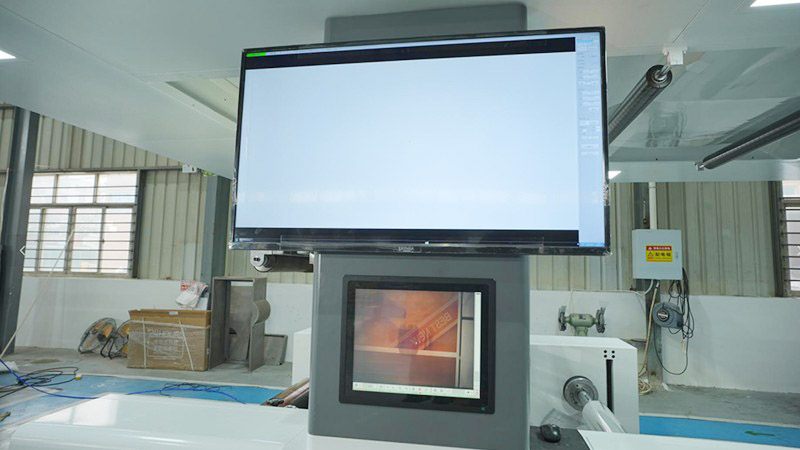

1,Check range: depends on the material width, arbitrarily setting. It is ok for adjustable point monitor or automatic back and forth.
1,Double-station Surface friction winding, Equipped with servo cutter, stable segment length
2,The tension control adopts ultra-light floating roller control, automatic tension compensation, closed-loop control, and arbitrary setting of taper tension (low-friction cylinder position detection, precision pressure regulator control, automatic alarm or shutdown when the roll diameter reaches the set value)
Q1: What types of boxes can be printed on this press?
A: It is suitable for folding cartons, corrugated boxes, cosmetic boxes, and other paperboard packaging.
Q2: How many colors can the Box CI Flexo Press print at once?
A: Typically 4–8 colors depending on the machine configuration.
Q3: Is it compatible with different substrates?
A: Yes, it can handle coated paperboard, kraft paper, laminated cartons, and other packaging materials.
Q4: What is the printing speed of this machine?
A: High-speed operation suitable for large-volume production, speed varies by model and substrate.
Q5: How easy is it to change printing plates and inks?
A: The machine is designed for quick plate and ink changes, reducing downtime significantly.
Q6: Can this press be customized for specific packaging needs?
A: Yes, our factory offers customization options for different production requirements.
Q7: What industries commonly use this press?
A: Food & beverage, cosmetics, pharmaceuticals, and consumer goods packaging industries.
Q8: Does the machine come with after-sales support?
A: Yes, we provide installation guidance, training, and ongoing technical support for all our clients.
