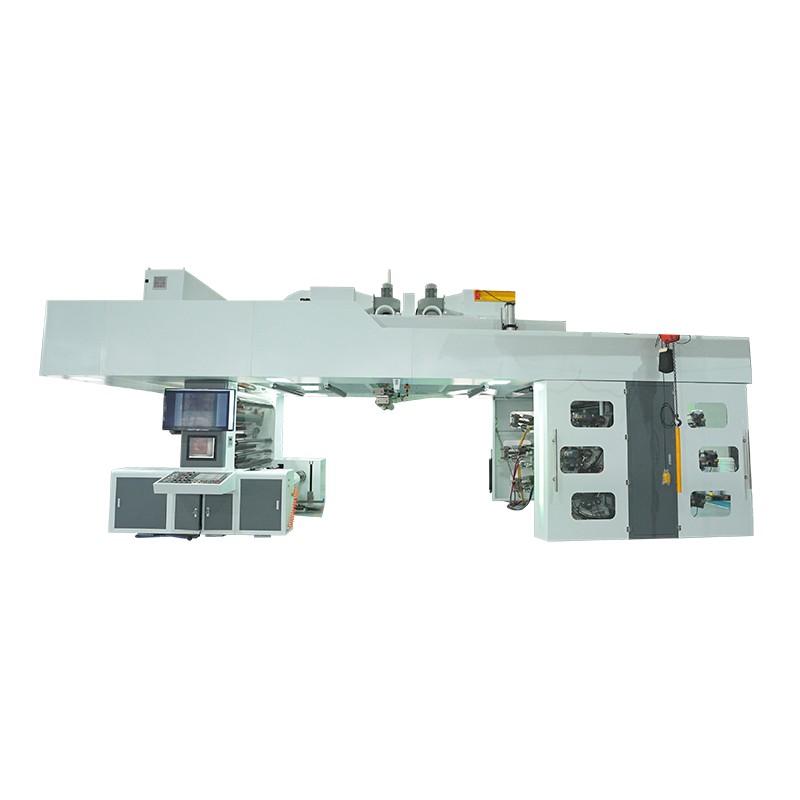

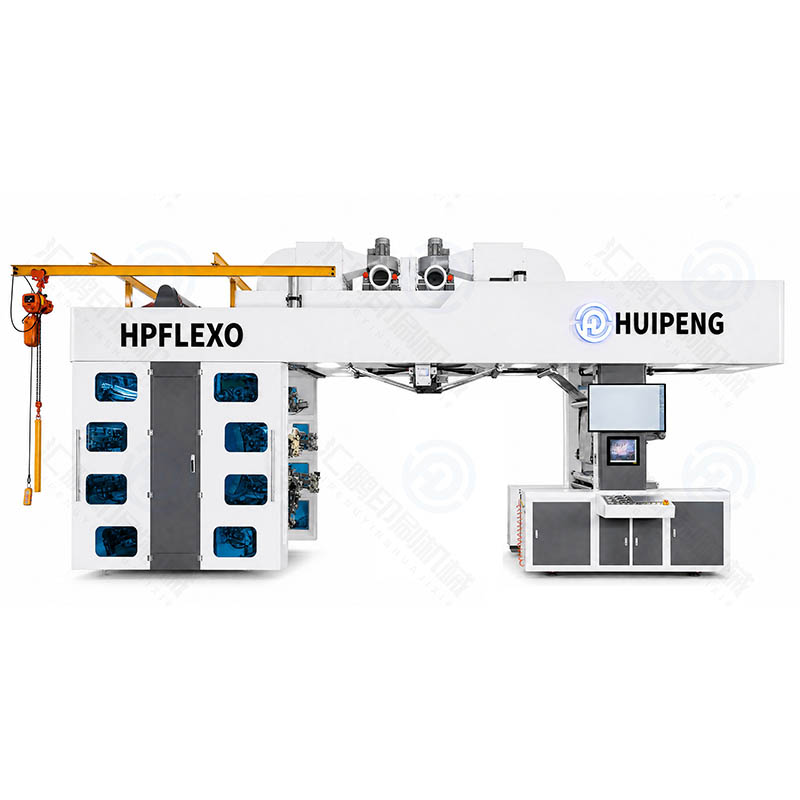

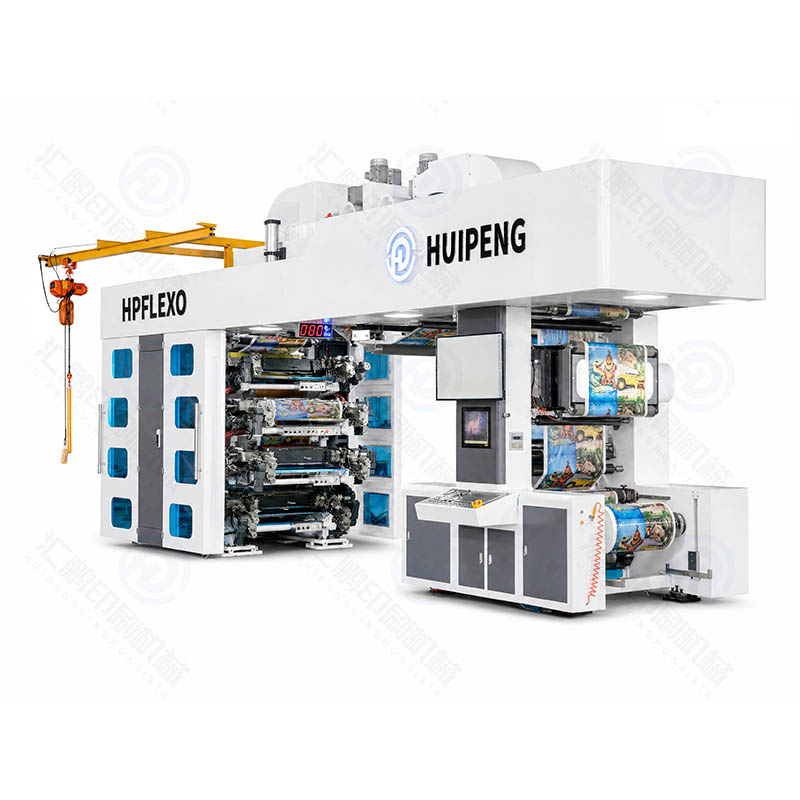

Central Impression Printing Press, abbreviated as CI Printing Press, is a high-precision printing device that adopts a Central Impression (CI) design. Its core structure consists of a large central impression cylinder, around which the printing substrate (such as paper, film, etc.) is evenly wrapped. Multiple printing plate units work synchronously around the cylinder to achieve high-speed, multi-color, and high-quality printing. This type of press is widely used in flexographic and gravure printing fields, especially suitable for packaging, labels, and film printing.
Central Impression Design
The printing material wraps around the central cylinder, ensuring even distribution of material tension, improving registration accuracy and printing consistency.
Multi-Color Printing Capability
Multiple printing stations operate simultaneously to achieve high-quality multi-color printing with four, six, or more colors.
High-Speed Production
Supports high-speed continuous operation to meet large-scale production demands and improve production efficiency.

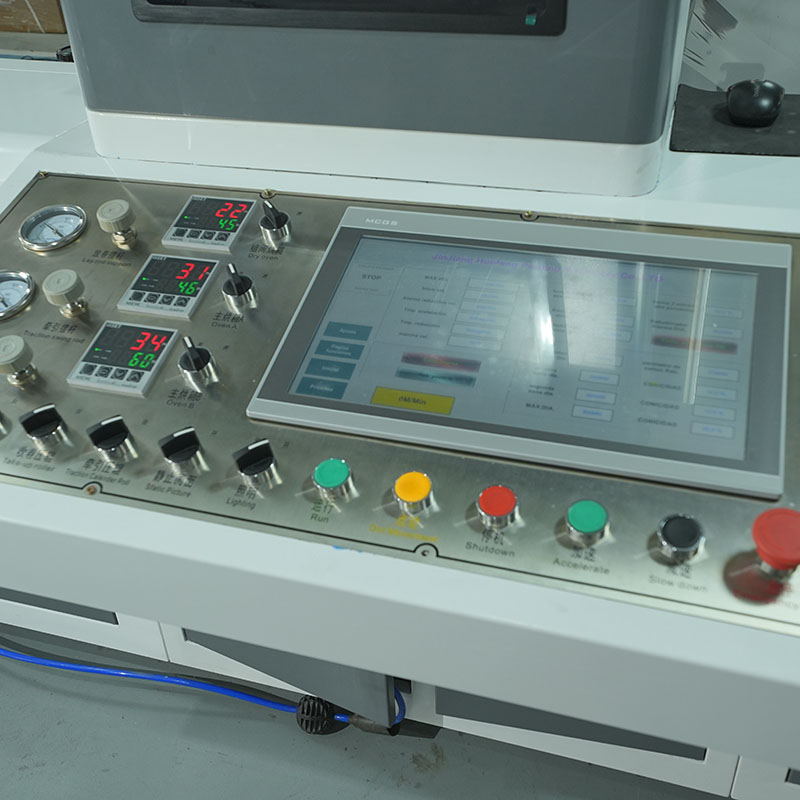

Automated Control System
Uses a digital operation interface and automatic tension and registration adjustment systems to simplify operation and ensure production stability.
Wide Range of Applicable Materials
Compatible with various printing substrates, including plastic films, paper, composite films, and other flexible materials.
Efficient Drying and Curing
Combines hot air, infrared, or UV drying equipment for rapid ink drying and curing to ensure printing quality.
Environmentally Friendly and Energy-Efficient Design
Compatible with eco-friendly water-based and UV inks, energy-efficient operation, meeting modern environmental standards.
Packaging Printing (flexible packaging films, plastic bags, cartons, etc.)
Label and Barcode Printing
Gift Packaging and Promotional Item Printing
Electronics Product Packaging Printing
Advantages Summary
Advanced structural design ensures stable operation of printing material and high-precision registration.
Multi-color printing with rich colors and finely detailed patterns.
High level of automation improves production efficiency and reduces operational difficulty.
Equipment is compatible with a wide range of materials, flexibly adapting to different printing needs.
Supports eco-friendly ink applications, promoting green printing development.
The Central Impression Printing Press is a core device in the modern flexible packaging and label printing industry, helping enterprises achieve high-value-added packaging printing with high efficiency, high quality, and multifunctionality, enhancing market competitiveness.
A CI flexographic printing press can print on a wide range of flexible packaging materials, including:
●BOPP film
●PET film
●PE film
●PVC film
●Paper and kraft paper
●Aluminum foil
●Laminated packaging materials
These machines are commonly used for producing food packaging, shopping bags, labels, pouches, and other flexible packaging products.
| Model | HPCI-600B | HPCI-800B | HPCI-1000B | HPCI-1200B |
| Number of printing group | 4/6/8 | |||
| Max.web width | 650 | 850 | 1050 | 1250 |
| Max.printing width | 600 | 800 | 1000 | 1200 |
| Max.machine speed | 250m/min | |||
| Max.printing speed | 200m/min | |||
| Max.unwind/rewind Dia. | 800mm | |||
| Drive type | Central drum with gear drive | |||
| Ink | Water base ink or solvent ink | |||
| Printing lengh(repeat) | 350-800MM | |||
| Range of sbstrates | PP Wowen Bags,Paper-plastic bags | |||
| Electrical supply | Voltage 380v,50hz or to be specified | |||
● The machine introduction & absorption of European technology / process manufacturing, supporting / full functional.
● After mounting the plate and registration, no longer need registration, improve yield.
● Replacing 1 set of Plate Roller (unloaded old roller, installed six new roller after tightening), only 20 Minute registration can be done by printing.
● The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
● Maximum production machine speed up 200m/min, registration accuracy ±0.10mm.
● The overlay accuracy does not change during lifting running speed up or down.
● When machine stop, Tension can be maintained, the substrate is not deviation shift.
● The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield.
● With precision structural, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.

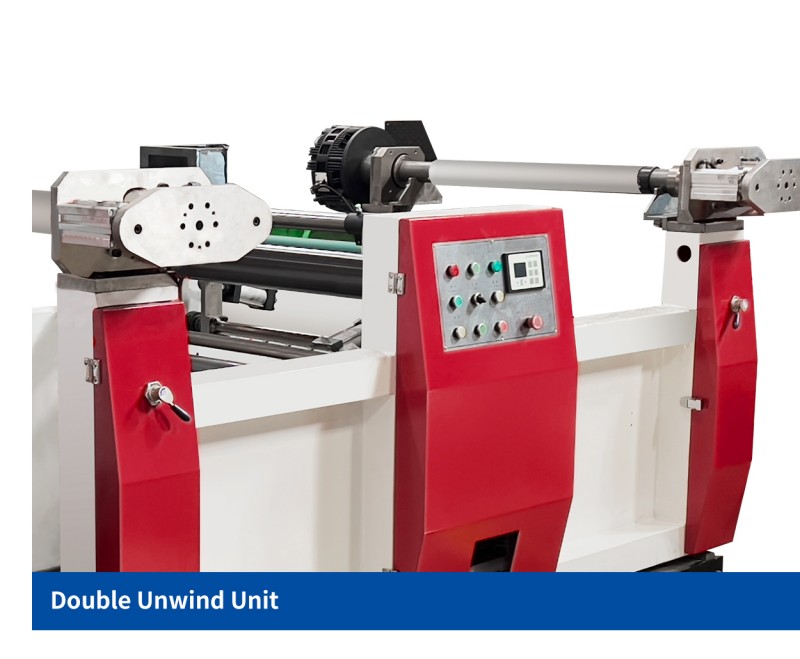

1,Center-driven unwinding, equipped with magnetic powder brake, equipped with automatic tension control；
2,Tension control: Ultra-light floating roller control, automatic tension compensation,closed loop control;
3,It has the function of automatic shutdown when the material is interrupted, and the tension maintains the function to avoid the substrate slack and deviation during the shutdown
4, Configure automatic EPC system before printing EPC: Before printing, a four-roller automatic EPC ultrasonic probe correction system has manual/automatic/center return functions, and the left and right translation can be adjusted by ±65mm.
1，Type : CI Flex Printing Machine
2，Color: 4 colors on the front + 4 colors on the back
3，Drive mode: Servo gear drive
4，Motor: Servo motor drive, inverter control closed loop control
5，Printing method :Photosensitive resin plate, suitable for both water-based and alcohol-soluble inks
6，Printing Repeat: 400-1200mm

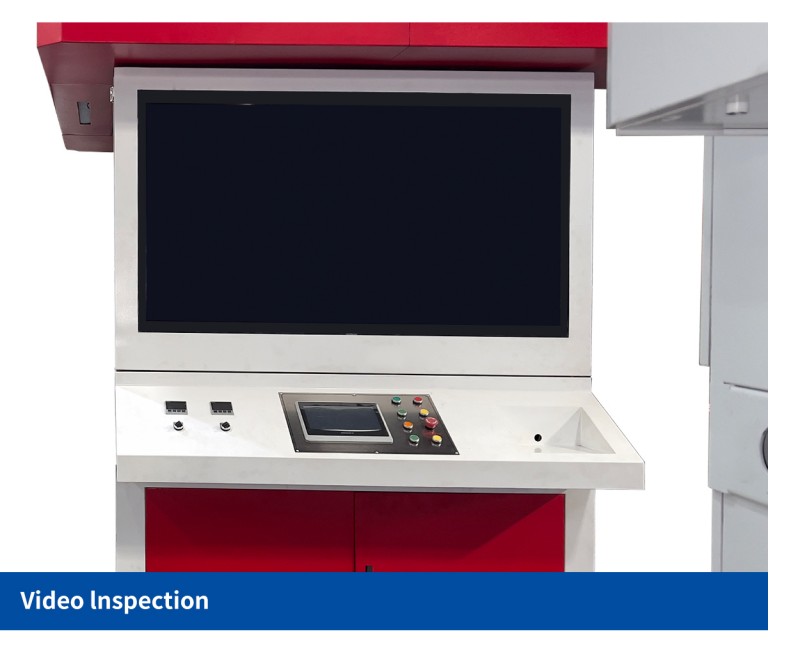

1,Check range: depends on the material width, arbitrarily setting. It is ok for adjustable point monitor or automatic back and forth.

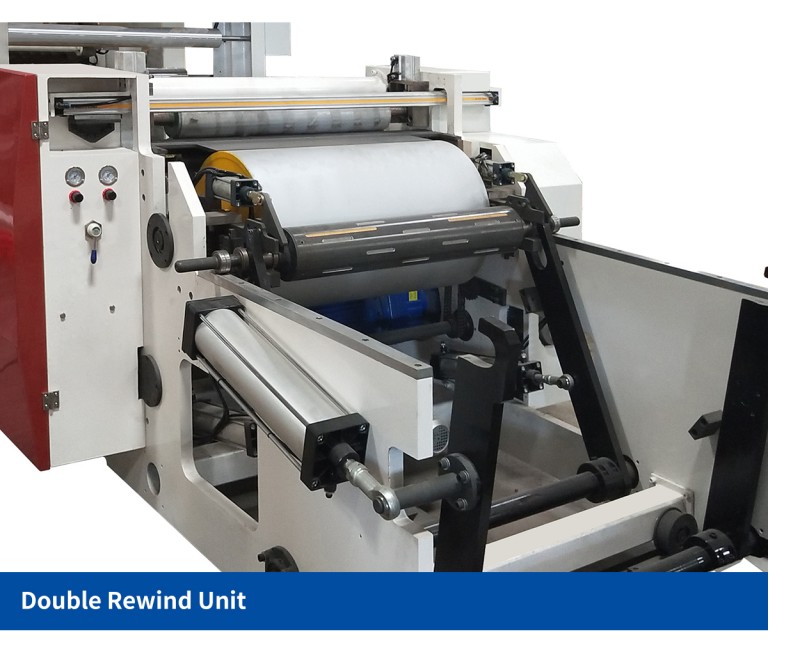

1,Double-station Surface friction winding, Equipped with servo cutter, stable segment length
2,The tension control adopts ultra-light floating roller control, automatic tension compensation, closed-loop control, and arbitrary setting of taper tension (low-friction cylinder position detection, precision pressure regulator control, automatic alarm or shutdown when the roll diameter reaches the set value)
1. What is a Central Impression (CI) printing press?
A Central Impression (CI) printing press is a type of flexographic printing machine where multiple printing units are arranged around a large central impression drum. This design keeps the substrate stable during printing and improves color registration accuracy.
2. What materials can a CI flexographic printing press print on?
CI flexo printing machines are designed for flexible packaging and can print on a variety of substrates, including:
3. What are the advantages of a Central Impression printing press?
Compared with other flexographic printing machines, CI presses provide several important advantages:
4. How many colors can a CI flexographic printing press support?
Most Central Impression flexographic printing presses support multiple color configurations to meet different printing needs.
5. Can the CI printing press be customized?
Yes. Printing presses can be customized based on specific production requirements.
6. What after-sales services are provided for CI printing presses?
Professional manufacturers provide comprehensive technical support to ensure stable machine operation.
