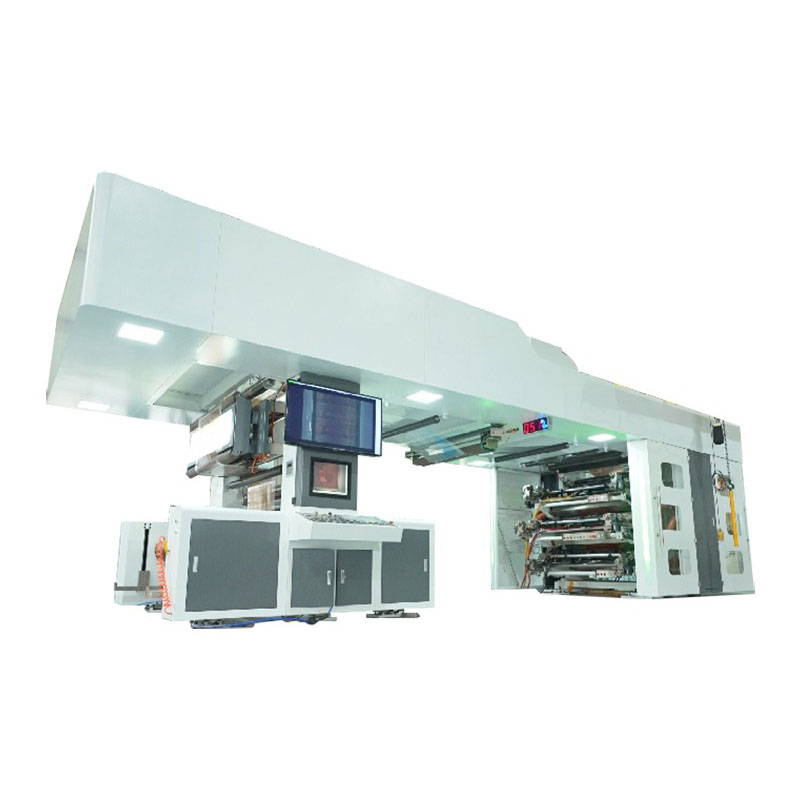

HP CI Flexo Press is a high-performance central-impression flexographic printing solution engineered for premium flexible packaging, label, and film converting. Built with HP’s industrial precision and digital workflow integration, it delivers consistent, high-definition printing at scale for medium-to-long production runs.
1. Printing Materials
Used for flexible materials such as PE, PP, PET, BOPP, OPP, CPP films, as well as paper and cardboard.
Suitable for printing on various plastic packaging bags, food bags, industrial packaging, labels, and cartons.
2. Printing Functions
Multi-color printing: Enables high-speed, multi-color, and high-precision color registration.
Precise registration: The central impression cylinder ensures accurate alignment of each color, avoiding misalignment.
Tension control: Ensures that the film or paper does not stretch or deform under high-speed operation.
Printing stability: Reduces ink peeling, blurring, or printing deviations, improving print quality.
3. Application Scenarios
Packaging printing: Food packaging, beverage bags, daily chemical packaging, pharmaceutical packaging.
Label printing: Product labels, multi-color brand labels.
Industrial printing: PP/PE woven bags, cartons, industrial film printing.
1. High-Speed Multicolor Printing
Supports continuous printing of 2 to 8 colors or more, meeting the multicolor overprinting needs of the packaging and labeling industry.
Provides high-precision overprinting, ensuring accurate positioning of each color and clear printing results.
2. Central Impression Cylinder Design
Material is tightly pressed against the central cylinder, ensuring stable tension and preventing material deformation or stretching.
Effectively reduces printing deviations and waste, improving production efficiency.
3. Wide Material Compatibility
Prints on PE, PP, PET, BOPP, OPP, CPP films and paper.
Suitable for various products such as plastic bags, food bags, industrial packaging, labels, and cartons.
4. Ink Transfer & Print Stability
Optimized ink path system ensures uniform color, good adhesion, and stable and durable printed patterns.
Avoids blurring, ink smudging, and color difference problems.
5. High-Efficiency Production (Efficient & Reliable Operation)
Supports continuous operation for extended periods, suitable for medium to long print runs.
Increases output, reduces labor costs, and ensures industrial-scale production needs are met.
6. Customization Functionality (Customization)
HuiPeng CI Flexo Press can be customized according to material type, print width, number of colors, and speed requirements.
Meets export, bulk customization, and special printing requirements.
Ultra-precise registration & stabilityThe large central impression drum maintains uniform tension and zero web shift, ensuring sharp color-to-color alignment and repeatable high-quality output even on thin, stretchable films.
High-speed & high-productivity designGearless servo drive and fast-sleeve change minimize make-ready time and waste. Stable high-speed running boosts daily output while preserving print clarity.
Broad substrate compatibilityReliably prints on PE, BOPP, PET, aluminum foil, paper, non-woven fabric and laminates, supporting food packaging, daily chemicals, labels and industrial packaging.
Smart ink & drying systemChambered doctor blade and closed inking unit deliver even, stable ink feeding. Efficient inter-color drying ensures strong adhesion, bright colors and fast curing for water-based, solvent-based and UV inks.

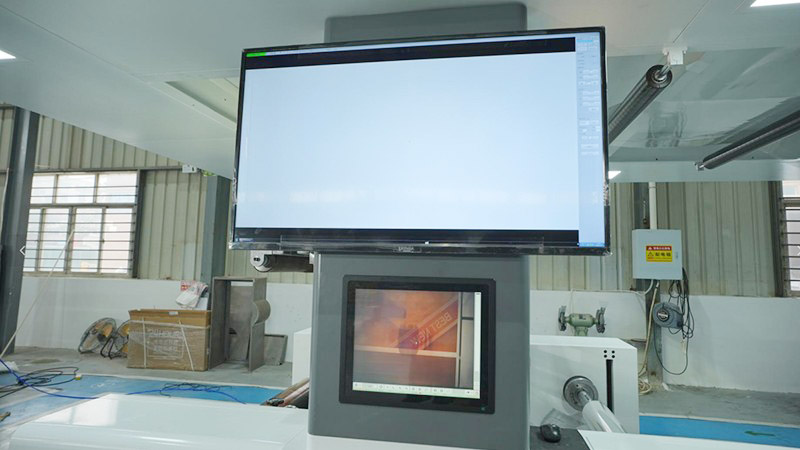

Intelligent operation & workflowUser-friendly PLC touch screen, automatic tension control and optional video inspection / auto-registration simplify operation, reduce manual intervention and improve yield.
Converters seeking a robust, cost-efficient CI flexo press with brand-name reliability, low maintenance, and strong return on investment for high-quality packaging printing.
| Model | HPCI-600B | HPCI-800B | HPCI-1000B | HPCI-1200B |
| Number of printing group | 4/6/8 | |||
| Max.web width | 650 | 850 | 1050 | 1250 |
| Max.printing width | 600 | 800 | 1000 | 1200 |
| Max.machine speed | 250m/min | |||
| Max.printing speed | 200m/min | |||
| Max.unwind/rewind Dia. | 800mm | |||
| Drive type | Central drum with gear drive | |||
| Ink | Water base ink or solvent ink | |||
| Printing lengh(repeat) | 350-800MM | |||
| Range of sbstrates | PP Wowen Bags,Paper-plastic bags | |||
| Electrical supply | Voltage 380v,50hz or to be specified | |||
● The machine introduction & absorption of European technology / process manufacturing, supporting / full functional.
● After mounting the plate and registration, no longer need registration, improve yield.
● Replacing 1 set of Plate Roller (unloaded old roller, installed six new roller after tightening), only 20 Minute registration can be done by printing.
● The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
● Maximum production machine speed up 200m/min, registration accuracy ±0.10mm.
● The overlay accuracy does not change during lifting running speed up or down.
● When machine stop, Tension can be maintained, the substrate is not deviation shift.
● The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield.
● With precision structural, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.

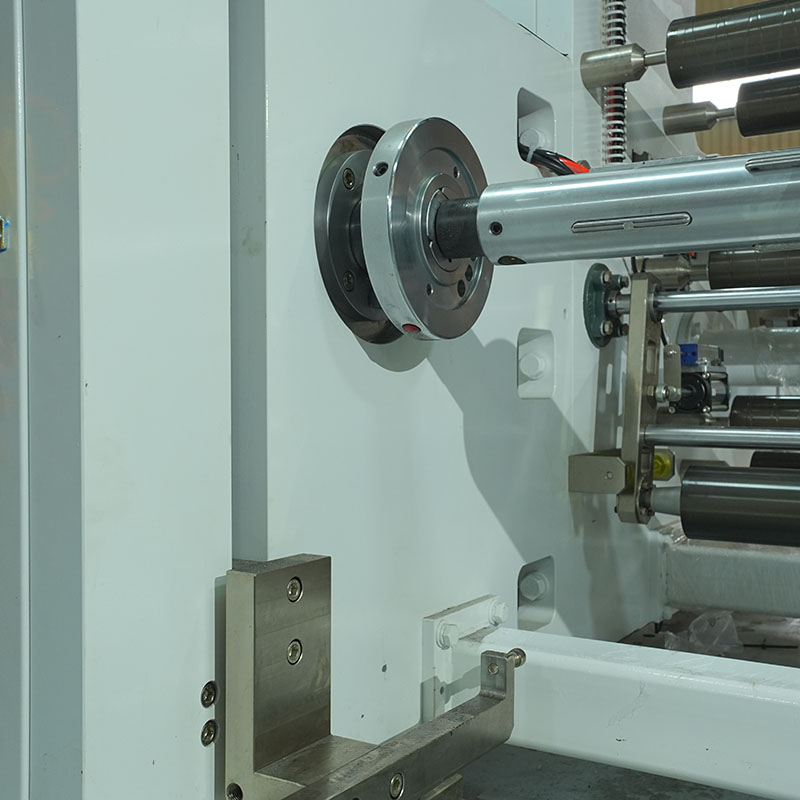

1,Center-driven unwinding, equipped with magnetic powder brake, equipped with automatic tension control；
2,Tension control: Ultra-light floating roller control, automatic tension compensation,closed loop control;
3,It has the function of automatic shutdown when the material is interrupted, and the tension maintains the function to avoid the substrate slack and deviation during the shutdown
4, Configure automatic EPC system before printing EPC: Before printing, a four-roller automatic EPC ultrasonic probe correction system has manual/automatic/center return functions, and the left and right translation can be adjusted by ±65mm.
1，Type : CI Flex Printing Machine
2，Color: 4 colors on the front + 4 colors on the back
3，Drive mode: Servo gear drive
4，Motor: Servo motor drive, inverter control closed loop control
5，Printing method :Photosensitive resin plate, suitable for both water-based and alcohol-soluble inks
6，Printing Repeat: 400-1200mm

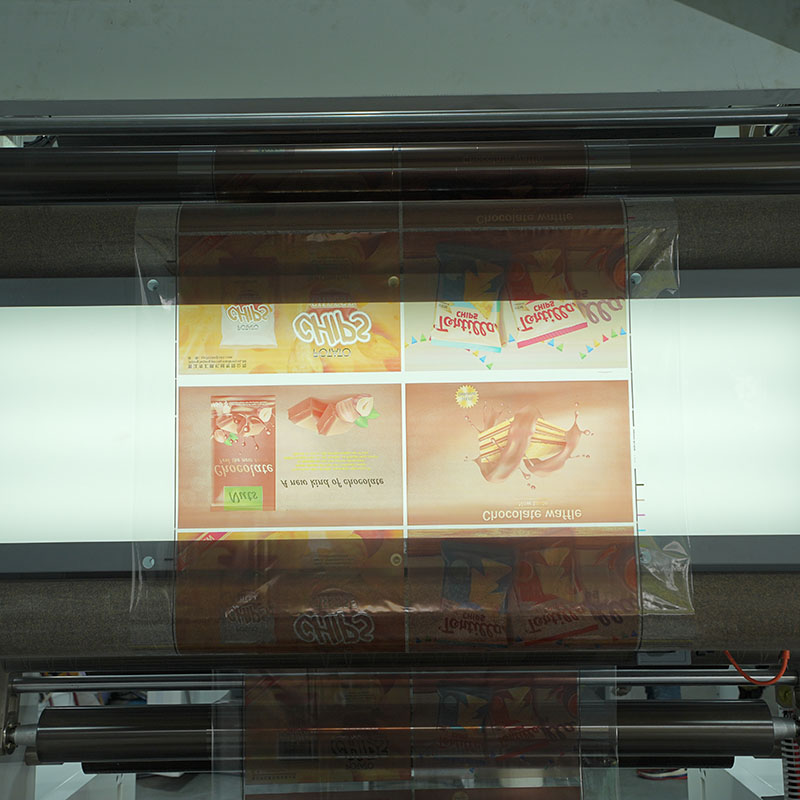

1,Check range: depends on the material width, arbitrarily setting. It is ok for adjustable point monitor or automatic back and forth.
1,Double-station Surface friction winding, Equipped with servo cutter, stable segment length
2,The tension control adopts ultra-light floating roller control, automatic tension compensation, closed-loop control, and arbitrary setting of taper tension (low-friction cylinder position detection, precision pressure regulator control, automatic alarm or shutdown when the roll diameter reaches the set value)
1.What materials can be printed on a CI Flexo Press?
PE, PP, PET, BOPP, OPP, CPP films, paper, and other flexible substrates.
2.What industries use CI Flexo Press?
Packaging, labeling, food, pharmaceutical, industrial, and consumer goods.
3.Can it print multiple colors?
Yes, it supports high-speed multicolor printing with precise registration.
4.What are the advantages of CI over other flexo presses?
Central impression design ensures better tension control, higher precision, and less material waste.
5.Is it suitable for short runs?
It’s mainly optimized for medium to long production runs, but small batch printing is possible depending on configuration.
6.How does it solve common printing problems?
It prevents ink smearing, substrate deformation, fuzzy patterns, and misregistration.
7.Does HuiPeng provide customization?
Yes, HuiPeng CI Flexo Press can be customized for substrate type, width, number of colors, and printing speed.
