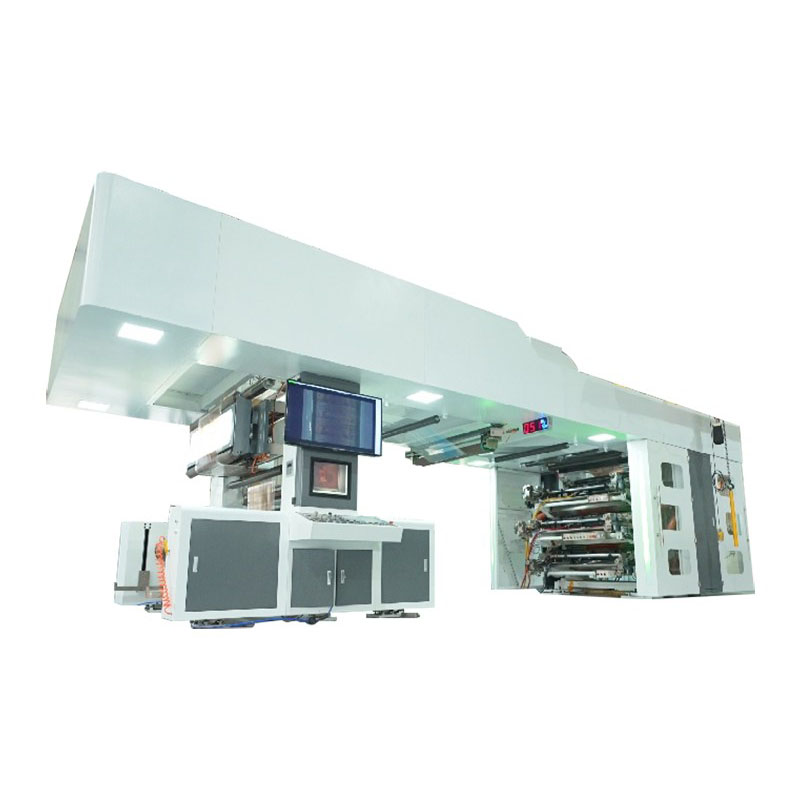

The CI Flexo Printer is a flexographic printing machine that uses a Central Impression (CI) structure. Through the central drum design, the printing material is tightly wrapped around the central drum, enabling high-speed, multi-color flexographic printing. It is widely used in the printing and processing of plastic films, paper, and composite packaging materials. This equipment is a key device in the modern packaging printing industry due to its high-precision registration, fast printing speed, and wide applicability.
As an experienced China supplier and factory direct manufacturer, HuiPeng offers customized CI Flexo Printer solutions, competitive pricing, and dependable after-sales service, making it an ideal choice for packaging printing enterprises worldwide.
1.The frame is made of alloy cast iron with high strength and lower stress. It is casted by resin sand process and treated by vibration aging.
2.Integral type guide roller structure.
3.Assembled modularization in design.
4.Frame thickness 100mm
5.Guide roller Φ100mm (Surface anodic oxidation treatment)
Central Drum Design
Ensures smooth material travel, improves registration accuracy and printing stability, and is suitable for continuous multi-color printing.
Multi-Color Printing Capability
Equipped with multiple printing stations to achieve high-quality flexographic printing in four, six, or more colors.
High-Speed and Efficient Production
Meets large-scale production requirements, improves production efficiency, and reduces production costs.
Automated Control System
Uses a digital operation platform and automatic tension control to simplify the operation process and enhance production stability.
Advanced Drying Technology
Equipped with hot air, infrared, or UV curing devices to ensure rapid ink curing and improve print quality.
Strong Material Compatibility
Suitable for plastic films (BOPP, PET, CPP, etc.), paper, and composite materials.
Environmentally Friendly and Energy Saving
Compatible with water-based and UV eco-friendly inks, meeting green printing standards and promoting sustainable production.
Printing of films for food, pharmaceutical, and personal care packaging
Carton and corrugated paper packaging printing
Label and signage printing
Shopping bag and eco-bag printing
Other flexible packaging material printing
Advanced central drum structure ensures high-precision registration
Multi-color flexographic printing meets diverse color and pattern requirements
Highly automated, improving production efficiency and stability
Compatible with various materials, widely applicable
Use of eco-friendly inks supports green production
The CI Flexo Printer is a core device for achieving high-quality, high-efficiency flexographic printing in the modern packaging printing industry, helping companies enhance product packaging quality and market competitiveness.
| Model | HPCI-600B | HPCI-800B | HPCI-1000B | HPCI-1200B |
| Number of printing group | 4/6/8 | |||
| Max.web width | 650 | 850 | 1050 | 1250 |
| Max.printing width | 600 | 800 | 1000 | 1200 |
| Max.machine speed | 250m/min | |||
| Max.printing speed | 200m/min | |||
| Max.unwind/rewind Dia. | 800mm | |||
| Drive type | Central drum with gear drive | |||
| Ink | Water base ink or solvent ink | |||
| Printing lengh(repeat) | 350-800MM | |||
| Range of sbstrates | PP Wowen Bags,Paper-plastic bags | |||
| Electrical supply | Voltage 380v,50hz or to be specified | |||
1.Central impression type printing machine with better color registration. Due to the big drum, the printed material is supported by the big drum, and greatly improving color registration, especially with extensible materials.
2.All colors printing station drived by the central drum, Less transmission errors because of less gear transmission, increase the registration precision.
3.Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation.

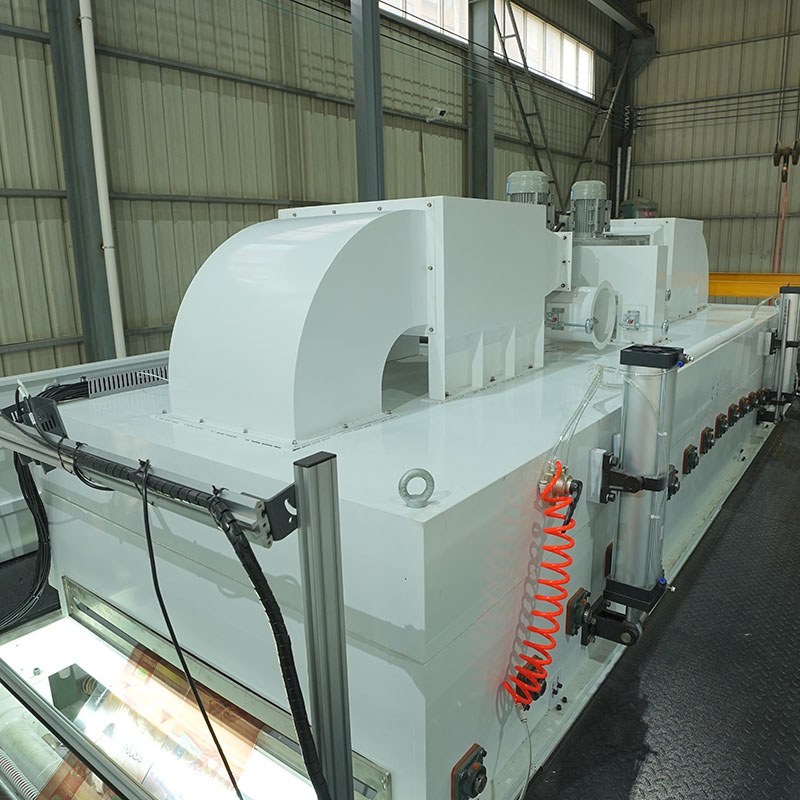

4.The machine is equipped with blower and heater; and the heater employed central temperature control system, automatic temperature controller, and separated heat source.
5.The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.
6.Roller adopts special steel processing, and through special treatment, greatly reduce the beating range.
7.Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment, small resistance, beating small, achieves finally perfect printing effect.
8.Accurate printing effect achieved by special gear transmission device.
9.The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.
1. What is a CI Flexo Printer?
A CI Flexo Printer (Central Impression Flexographic Printing Press) is a high-precision printing machine widely used in the flexible packaging industry. It features a central impression drum that allows multiple printing units to print on the substrate while maintaining stable tension and excellent registration accuracy. This type of printer is commonly used for printing on materials such as:
2. What materials can a CI Flexographic Printing Machine print on?
CI flexo printing machines are designed for a wide range of flexible substrates. Typical materials include:
These materials are commonly used in food packaging, daily necessities packaging, and industrial packaging applications.
3. What are the advantages of a CI Flexo Printing Press?
Compared with other flexographic printing structures, CI flexo printers offer several advantages:
4. What is the typical printing speed of a CI Flexo Printer?
The printing speed depends on the machine configuration, material type, and number of colors. Modern CI flexographic printing presses can typically operate at speeds ranging from:
Advanced control systems and precise mechanical structures help maintain stable printing quality even at high speeds.
5. How many colors can a CI Flexographic Printing Machine support?
CI flexo printing machines are available in different color configurations to meet various printing requirements. Common options include:
The appropriate configuration depends on the complexity of the design and the packaging printing requirements.
6. What industries commonly use CI Flexo Printers?
CI flexographic printing machines are widely used in industries that require high-quality flexible packaging printing, including:
7. Does HuiPeng provide installation and training for CI Flexo Printers?
Yes. Jinjiang HuiPeng provides comprehensive technical support services for all CI flexographic printing machines.
8. Can CI Flexo Printing Machines be customized?
Yes. CI flexo printing presses can be customized according to specific production requirements, including:
HuiPeng can design and manufacture machines based on customer requirements, samples, or production specifications.
