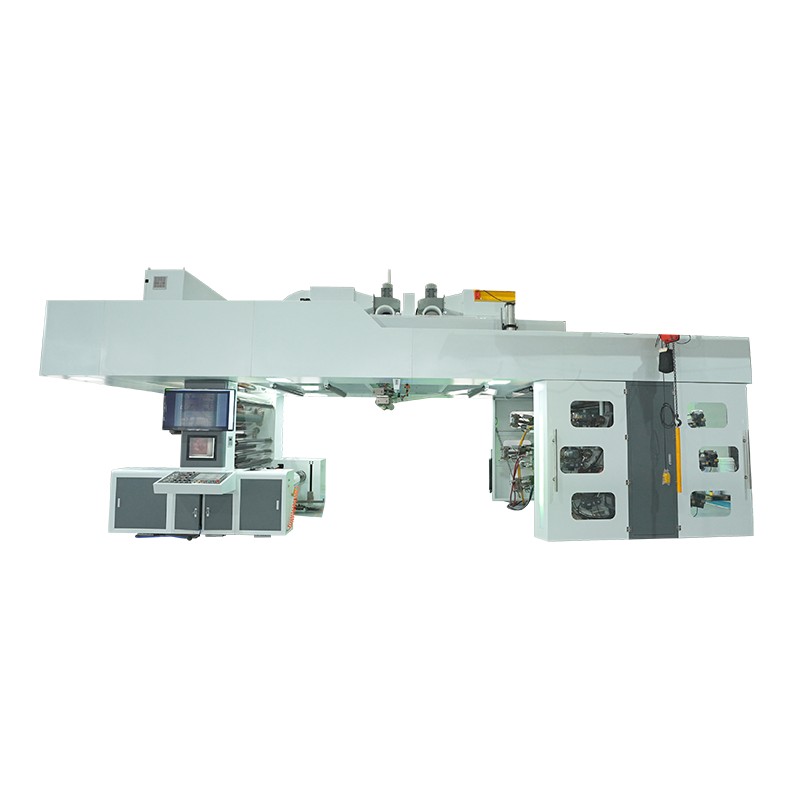

CI Flexo Printing Machinery

CI Flexo Printing Machinery refers to flexographic printing machines that adopt a Central Impression (CI) structure. Its design allows the printing material to rotate around a central impression cylinder, achieving high-speed, multi-color, and high-precision printing through multiple printing units. Due to its excellent color reproduction and registration stability, CI flexographic printing machines are widely used in packaging, labels, and film printing industries.

What is CI Flexo Printing Machinery?

CI Flexo Printing Machinery adopts a Central Impression (CI) structure, where the substrate rotates around a large central drum. This design enables high-speed, multi-color, and high-precision printing, making it ideal for packaging, labeling, and film printing industries.

Working Process

1 Printing plate cylinder transfers image

2 Anilox roller controls ink volume

3 Central impression drum ensures stable registration

4 Drying system fixes ink quickly

Main Features

Central Impression Design
The printing material moves smoothly along the central impression cylinder, ensuring accurate multi-color registration and stable print quality.

Multi-Color Flexographic Printing Units
Multiple printing plate units work collaboratively, capable of high-quality printing with four, six, or more colors.

High-Speed and Efficient Production
The equipment supports high-speed operation, meeting large-scale production requirements and significantly increasing output.

Automated Intelligent Control
Digital operation system equipped with automatic tension adjustment and quick plate cylinder alignment functions, easy to operate, reducing human errors.

Advanced Drying System
Equipped with hot air, infrared, or UV curing systems to ensure rapid ink drying, improving printing efficiency and quality.

Versatile Material Compatibility
Supports various printing substrates such as plastic films (e.g., BOPP, PET, CPP), paper, and composite materials.

Environmentally Friendly and Energy-Saving Design
Compatible with water-based and UV eco-friendly inks, the equipment is highly efficient and energy-saving, meeting green environmental standards.

Comparison with Other Flexo Machines

Applications

Printing of packaging films and bags for food, daily chemicals, and pharmaceuticals
Printing of cartons and corrugated packaging
Printing of commodity labels and barcode labels
Printing for promotional items, gift packaging, and high-end decorative prints

Advantages

High registration accuracy and print quality, with vivid colors and fine patterns
Wide applicability, meeting the material needs across multiple industries
High degree of automation, enhancing operational efficiency and production stability
High-speed operation, suitable for large-scale industrial production
Environmentally friendly and energy-efficient, aligned with sustainable development goals

CI Flexo Printing Machinery is the core equipment of modern packaging and printing industries. With its efficiency, precision, and multifunctionality, it supports enterprises in achieving high-quality printing and automated production, enhancing market competitiveness.

Technical Specifications

Characteristics:

1.Central impression type printing machine with better color registration. Due to the big drum, the printed material is supported by the big drum, and greatly improving color registration, especially with extensible materials.
2.All colors printing station drived by the central drum, Less transmission errors because of less gear transmission, increase the registration precision.
3.Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation.
4.The machine is equipped with blower and heater; and the heater employed central temperature control system, automatic temperature controller, and separated heat source.
5.The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.
6.Roller adopts special steel processing, and through special treatment, greatly reduce the beating range.
7.Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment, small resistance, beating small, achieves finally perfect printing effect.
8.Accurate printing effect achieved by special gear transmission device.
9.The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.

Paper：

Film：

Why Choose HuiPeng?

●20+ years printing machinery experience

●Professional R&D team

●Strict quality control system

●Global export service

●Customized printing solutions

Our manufacturing facility is equipped with advanced CNC machining centers and precision assembly lines to ensure the stability and durability of every CI flexo printing machine.

FAQ

1. What materials can CI flexo printing machines print?

Plastic films (BOPP, PET, CPP, PE), paper, and laminated materials.

2. How many colors can be printed?

4, 6, or 8 colors, customizable according to production needs.

3. What industries use CI flexo printing machines?

Packaging, labeling, food, pharmaceutical, and decorative printing industries.

4. What is the printing speed?

Up to 200 m/min for printing, 250 m/min machine speed.

5. How does CI flexo improve color registration?

The central drum design stabilizes the substrate and reduces transmission errors.

6. Can it handle high-volume production?

Yes, designed for large-scale industrial applications.

7. Is the machine energy-efficient?

Yes, it supports eco-friendly inks and energy-saving motors.

8. What after-sales support is provided?

On-site installation, operator training, 24-hour response, and maintenance services.
