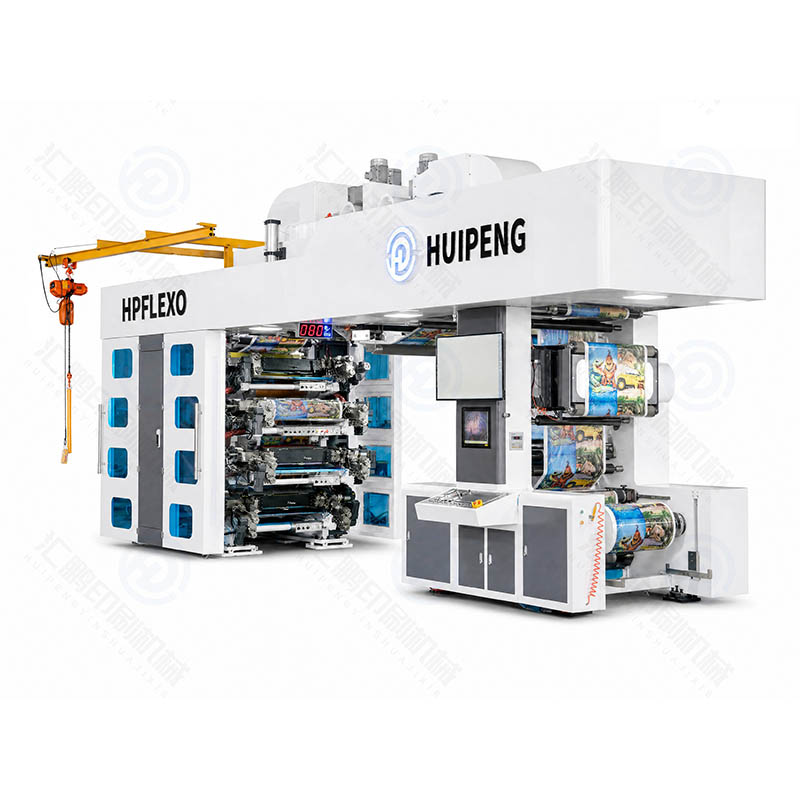

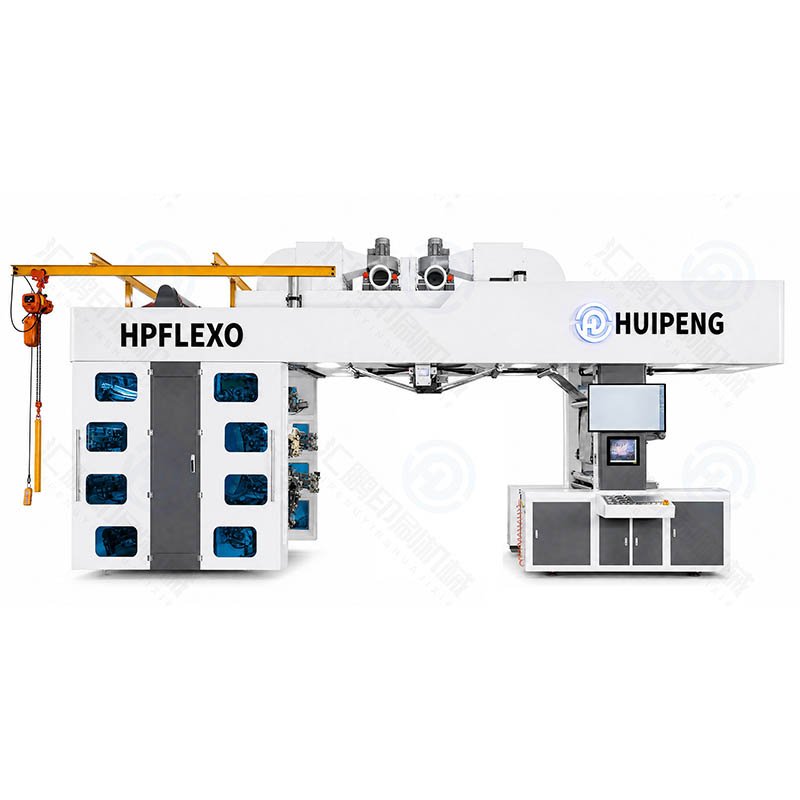

The PP Woven CI Flexo Printing Machine is a high-efficiency central impression flexographic printing press specially designed for printing on polypropylene woven fabrics and woven bags. It is widely used in the packaging industry for printing cement bags, rice bags, fertilizer bags, animal feed bags, and other industrial woven packaging materials.
Compared with traditional printing equipment, the PP Woven CI Flexo Printing Machine offers higher printing speed, lower material waste, and better color consistency, making it an ideal solution for large-scale woven bag printing production.
A PP Woven CI Flexo Printing Machine is a type of central impression flexographic printing press specifically designed for printing on polypropylene woven materials. The machine adopts a central impression (CI) drum structure, where all printing units are arranged around a large central cylinder.
During operation, the woven fabric substrate is tightly wrapped around the central impression drum, allowing multiple colors to be printed in a single pass. This structure significantly improves printing stability and ensures accurate color registration even at high speeds.
The CI flexo printing technology is particularly suitable for flexible packaging materials that require consistent tension control and high printing precision. For PP woven bags, which often have uneven surfaces and require strong ink adhesion, the CI flexo printing system provides superior print quality compared with conventional printing methods.
Because of these advantages, the PP Woven CI Flexo Printing Machine has become an essential piece of equipment for woven packaging manufacturers and printing companies worldwide.
Central Impression Design
Ensures stable material delivery during printing, ensuring multi-color registration and reducing material wrinkles and deviation.
Dedicated Feeding and Tension Control System
Designed for the characteristics of PP woven materials, the and tension control enhance the stability and quality of the printed products.

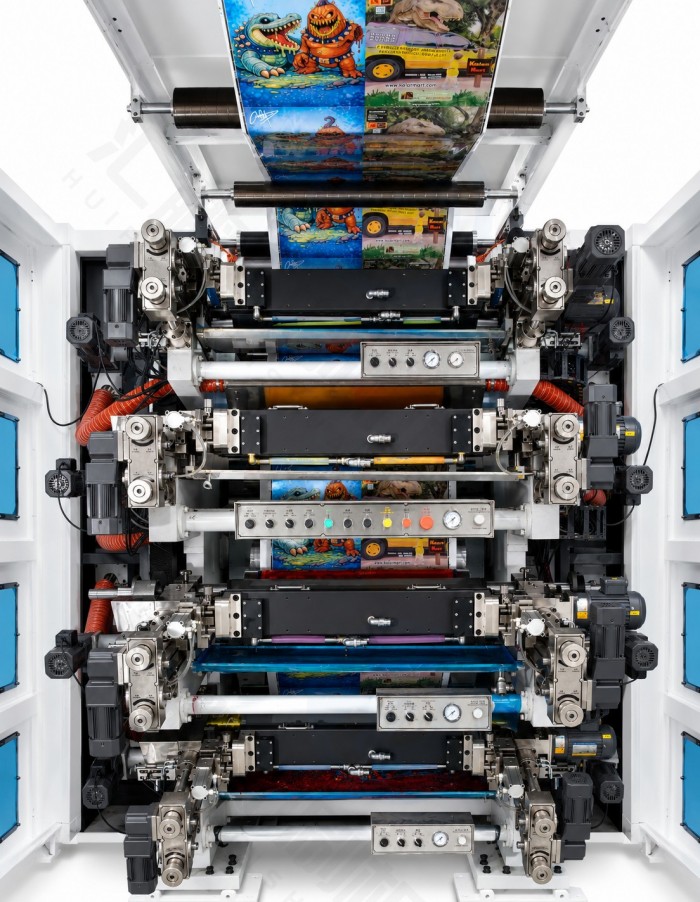

Multi-color Flexographic Printing Capability
Supports multiple printing stations, allowing for multi-color printing meet the needs of complex brands and patterns.
High-speed and Efficiency
Suitable for large-scale production, ensuring a smooth and efficient printing process.
fficient Drying System
Equipped with hot air or infrared drying devices, the ink is quickly cured, achieving high-quality printing results.

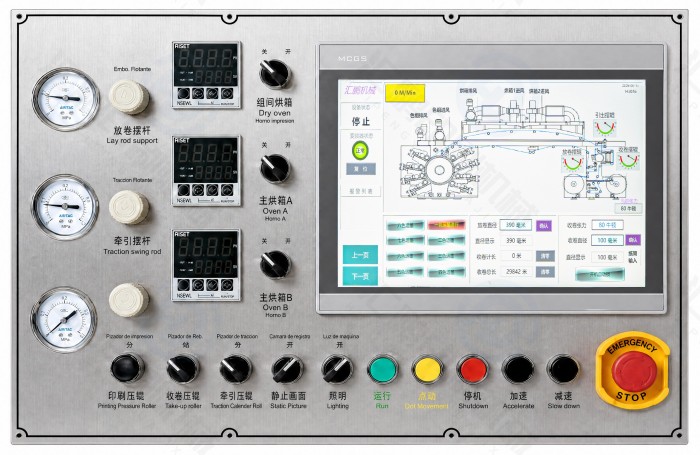

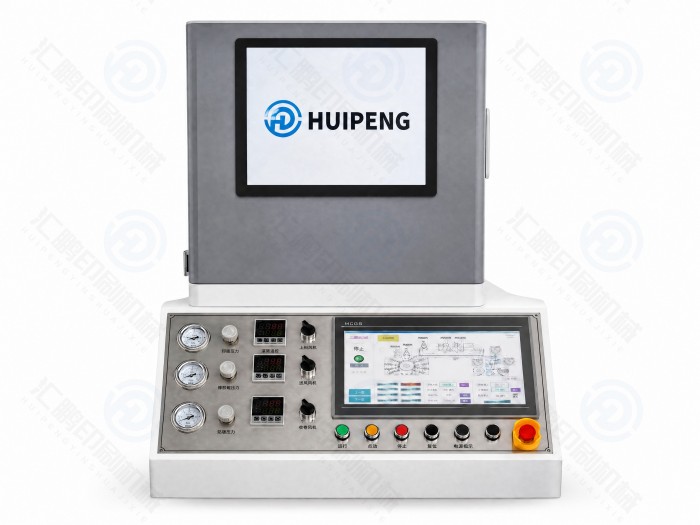

Intelligent Automation Control
ipped with a digital operation platform, automatic tension and register control, easy operation, and reduced human errors.
Environmentally Friendly and Energy Efficient
Compatible with water- and UV inks, environmentally friendly and energy-efficient, in line with industry green production standards.
The PP Woven CI Flexo Printing Machine is widely used in the flexible packaging industry for printing various woven bag materials.
Typical applications include:
●Cement woven bags
●Rice packaging bags
●Flour packaging bags
●Fertilizer woven sacks
●Animal feed bags
●Chemical packaging bags
●Industrial bulk woven bags
With its high-speed and high-precision printing capability, this woven bag printing machine is an ideal solution for large-scale packaging manufacturers.
| Feature | HuiPeng CI Flexo Printing Machine | Conventional Printing Machine |
|---|---|---|
| Printing Stability | Excellent | Moderate |
| Registration Accuracy | High precision | Average |
| Printing Speed | High | Medium |
| Production Efficiency | High | Lower |
| Material Waste | Low | Higher |
By adopting advanced CI flexographic printing technology, HuiPeng machines provide more stable printing performance and improved production efficiency.
The central impression design ensures stable material delivery and precise register
A feeding system designed specifically for PP woven materials prevents wrinkles and deviation
Multi-color high-quality printing complex packaging needs
High automation level, easy operation, and strong production stability
Green and environmental, supporting the application of various environmental inks
PP Woven CIo Printing Machine is the core equipment for PP woven bag industry to achieve high-quality, multi-color printing, helping enterprises to enhance packaging appearance and market competitiveness
| Model | HPCI-600B | HPCI-800B | HPCI-1000B | HPCI-1200B |
| Number of printing group | 4/6/8 | |||
| Max.web width | 650 | 850 | 1050 | 1250 |
| Max.printing width | 600 | 800 | 1000 | 1200 |
| Max.machine speed | 250m/min | |||
| Max.printing speed | 200m/min | |||
| Max.unwind/rewind Dia. | 800mm | |||
| Drive type | Central drum with gear drive | |||
| Ink | Water base ink or solvent ink | |||
| Printing lengh(repeat) | 350-800MM | |||
| Range of sbstrates | PP Wowen Bags,Paper-plastic bags | |||
| Electrical supply | Voltage 380v,50hz or to be specified | |||
1.Central impression type printing machine with better color registration. Due to the big drum, the printed material is supported by the big drum, and greatly improving color registration, especially with extensible materials.
2.All colors printing station drived by the central drum, Less transmission errors because of less gear transmission, increase the registration precision.
3.Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation.
4.The machine is equipped with blower and heater; and the heater employed central temperature control system, automatic temperature controller, and separated heat source.
5.The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.
6.Roller adopts special steel processing, and through special treatment, greatly reduce the beating range.
7.Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment, small resistance, beating small, achieves finally perfect printing effect.
8.Accurate printing effect achieved by special gear transmission device.
9.The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.
1. What materials can the PP Woven CI Flexo Printing Machine print on?
The machine is mainly designed for polypropylene woven fabrics, laminated woven bags, and other flexible woven packaging materials.
2. How many colors can the machine support?
Most models support 4 to 8 color printing, depending on customer requirements.
3. What is the printing speed of the machine?
The printing speed can reach 120 to 250 meters per minute, depending on the machine configuration.
4. Is automatic color registration available?
Yes. The machine can be equipped with an automatic color registration system to ensure accurate alignment of multi-color printing.
5. What type of ink does the machine use?
The machine supports water-based ink and solvent-based ink, depending on the printing material and application.
6. Can the machine be customized?
Yes. As a professional CI flexo printing machine manufacturer, HuiPeng can customize machine width, color units, and configuration based on customer needs.
7. What industries use this machine?
The machine is widely used in industries such as agriculture packaging, food packaging, chemical packaging, and industrial woven bag production.
8. Does HuiPeng provide installation and technical support?
Yes. HuiPeng provides installation guidance, operator training, and after-sales technical support for global customers.
Jinjiang HuiPeng Printing Machinery Co., Ltd. is a professional CI flexo printing machine manufacturer and supplier in China, specializing in the research, development, and production of high-performance flexographic printing equipment.
With years of experience in the packaging printing industry, HuiPeng focuses on providing efficient, stable, and precise printing solutions for global customers. Our products are widely used for flexible packaging printing, including plastic films, woven bags, paper packaging, and other industrial materials.
As a trusted flexo printing machine factory, HuiPeng is committed to delivering high-quality equipment, customized solutions, and reliable technical support for clients worldwide.
