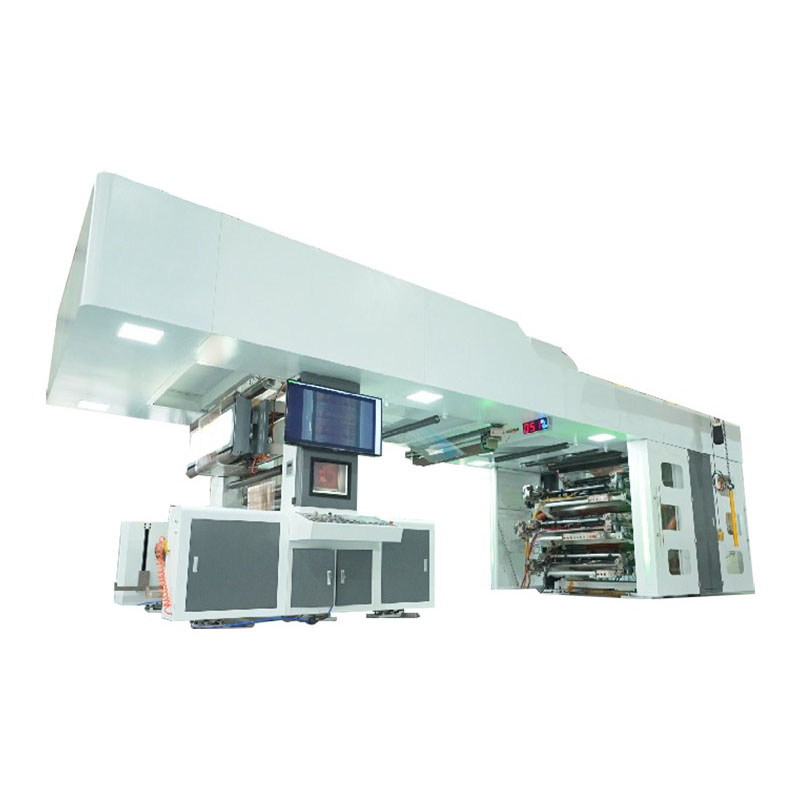

PE CI Flexo Press

PE CI Flexo Press refers to a central impression flexographic press specifically designed for printing on PE (Polyethylene) films.

What is a PE CI Flexo Press?

A PE CI Flexo Press is a flexographic printing device whose core feature is its central impression (CI) structure. In this structure, the printing material (PE film) is pressed tightly against a central impression cylinder and passes through multi-color flexographic printing cylinders, achieving high-speed, multi-color, and high-precision printing.

Main Applications

Packaging Film Printing: Printing on PE film products such as food packaging bags, express delivery bags, and shopping bags.

Label Printing: Suitable for scenarios requiring flexible film labels.

Advertising or Promotional Materials: Printing promotional materials made of PE film.

In short, the PE CI Flexo Press is primarily used in the production of PE films requiring high-precision, multi-color, and high-speed printing.

Comparison with other printing presses

Core Product Advantages

1. Targeted Optimization for PE Film, Solving Core Printing Pain Points
The press is specially calibrated for the physical characteristics of PE film, such as poor ink adhesion, easy stretching, and low surface free energy. Equipped with a large-diameter central impression drum, the core component of CI flexo technology, it ensures uniform web tension and zero substrate shift during the printing process, effectively avoiding film stretching and wrinkling, and achieving ±0.1mm registration accuracy even on ultra-thin PE films (12 microns). The closed inking unit with chambered doctor blades and laser-engraved ceramic anilox rollers ensures uniform ink feeding, minimizes dot gain, and enhances ink transfer efficiency on PE film surfaces. It is matched with HP’s professional PE-specific inks, which can firmly adhere to the PE film surface, preventing ink peeling, fading, and smudging, and ensuring clear patterns and stable colors from the first print to the last batch.

2. High Efficiency and Low Waste, Reducing Production Costs
Adopting a high-performance gearless servo drive system, the press realizes stable high-speed operation, with a maximum printing speed of up to 80 meters per minute in multi-color mode, which is far higher than the industry average, and can efficiently complete medium-to-long production runs. The fast-sleeve change design and automatic pre-registration function significantly shorten the make-ready time, reducing the time cost of job switching. The upgraded automatic tension control system with loop self-detection is specially adjusted for the elasticity of PE film, effectively reducing film tearing and edge curling, and reducing the substrate waste rate to less than 1.5%, which is much lower than the 5-10% waste rate of traditional printing methods. In addition, the intelligent ink supply system reduces ink waste, further reducing production costs for converters.

3. Outstanding Environmental Advantages, Conforming to Global Green Trends
Adhering to HP’s sustainable printing concept of “reduce, reuse, renew”, the press highlights excellent environmental performance in all aspects. It is compatible with PE-specific eco-friendly water-based inks that are non-toxic, low-VOC, and compliant with FDA, ROHS, and SGS certifications, which are odorless and pollution-free, meeting food packaging safety requirements. These inks have fast drying speed, high wear resistance, and good water resistance, and can be directly used for food packaging printing. At the same time, the press supports recyclable PE film substrates, realizing green printing throughout the whole process, helping converters reduce carbon emissions and achieve environmental transformation. The energy-saving servo drive system and efficient ventilation and drying design further reduce energy consumption, reflecting HP’s commitment to sustainable development.

4. Intelligent Operation and Versatile Compatibility, Improving Operational Efficiency

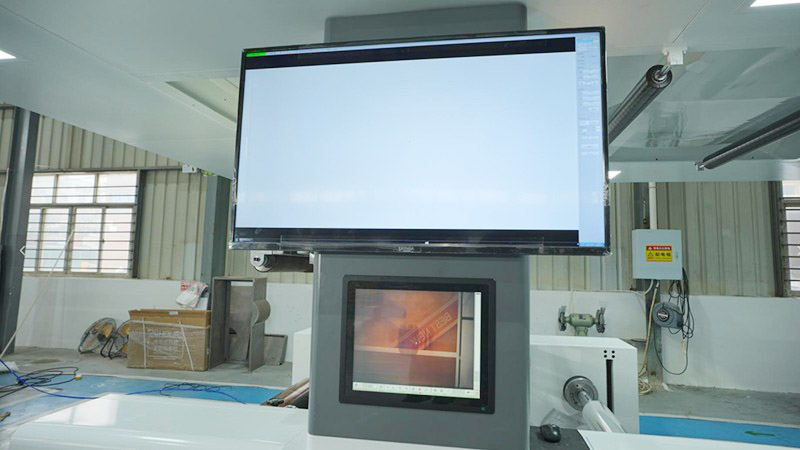

Designed for ease of use, the press is equipped with a user-friendly PLC touch screen, allowing operators to adjust parameters such as tension, ink amount, and drying temperature according to different types of PE film (including LDPE, HDPE, CPP), with simple operation and low training costs. It supports HP PrintOS X cloud connectivity, enabling remote monitoring, workflow management, and data analysis, helping enterprises optimize production scheduling and reduce downtime. The press has strong substrate compatibility, supporting various PE films and PE laminates with thickness ranging from 12 to 200 microns, and can flexibly configure 4-8 color units according to actual needs, reproducing up to 97% of PANTONE colors, realizing rich color expression and meeting the diverse printing needs of different products.

Technical Specifications

Characteristic

● The machine introduction & absorption of European technology / process manufacturing, supporting / full functional.
● After mounting the plate and registration, no longer need registration, improve yield.
● Replacing 1 set of Plate Roller (unloaded old roller, installed six new roller after tightening), only 20 Minute registration can be done by printing.
● The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
● Maximum production machine speed up 200m/min, registration accuracy ±0.10mm.
● The overlay accuracy does not change during lifting running speed up or down.
● When machine stop, Tension can be maintained, the substrate is not deviation shift.
● The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield.
● With precision structural, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.

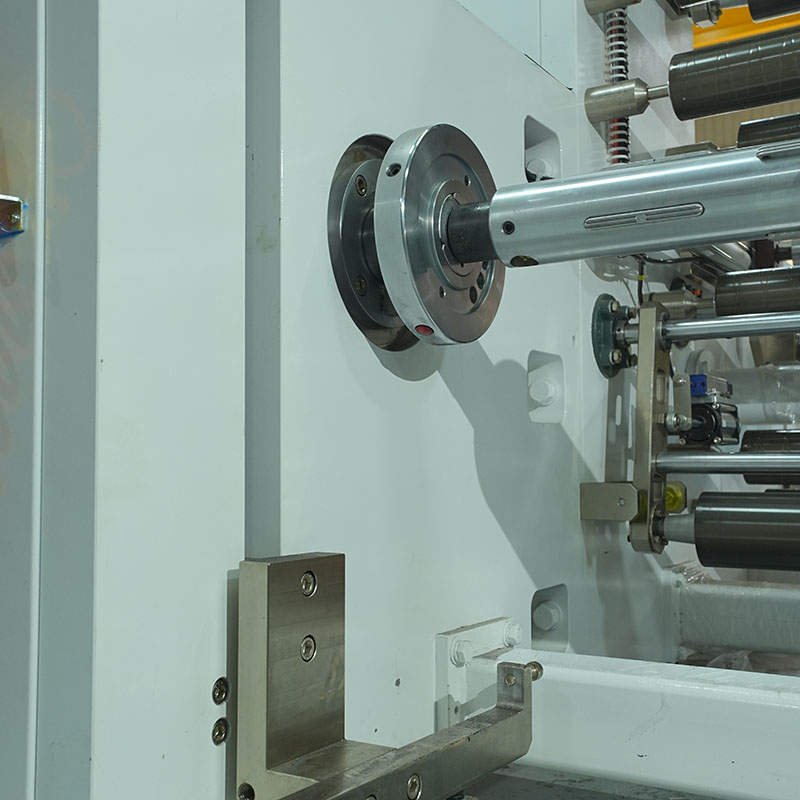

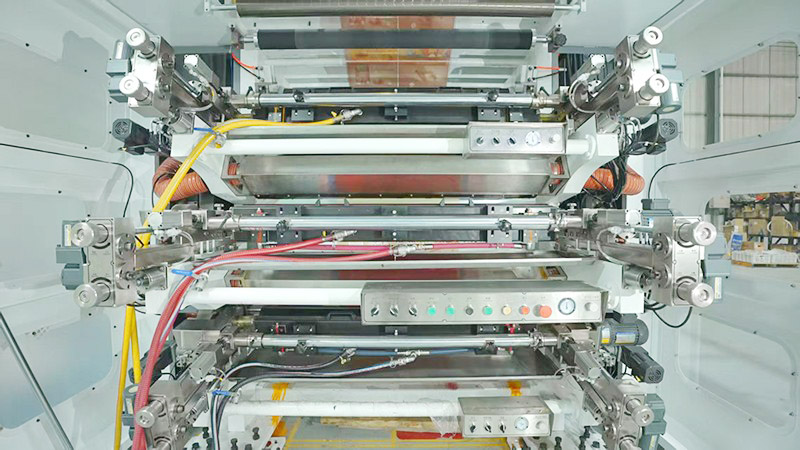

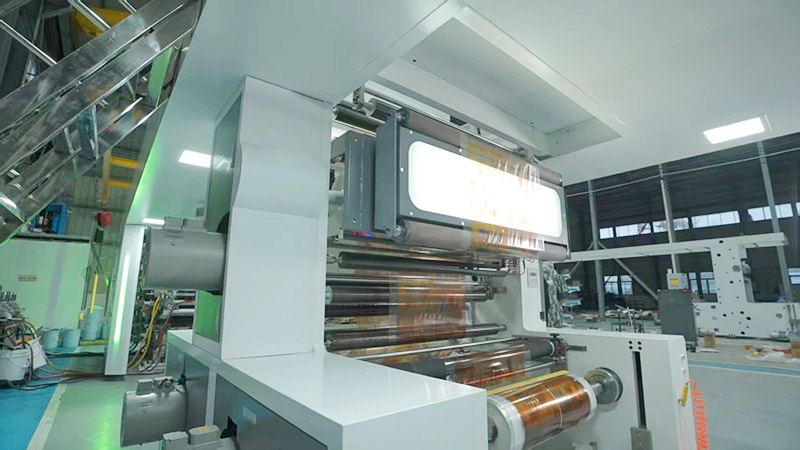

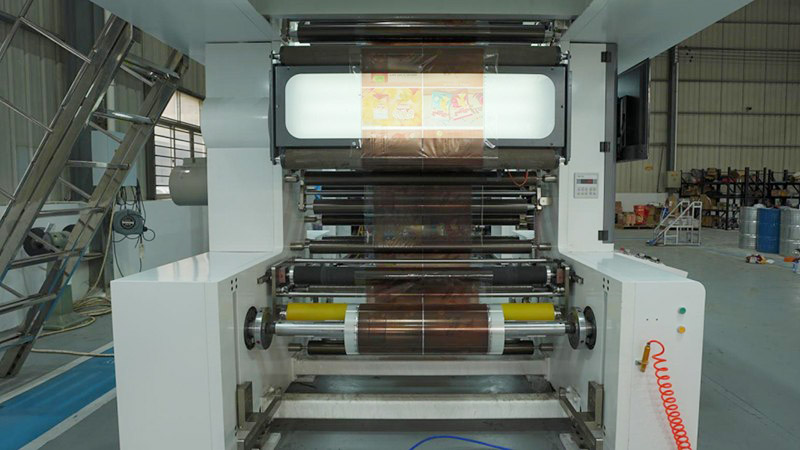

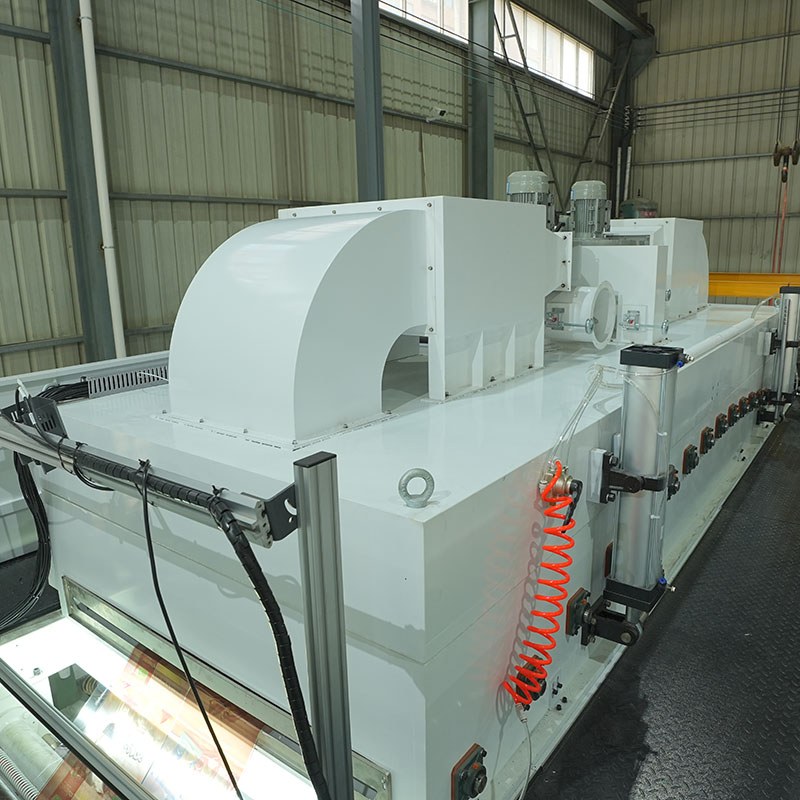

Details Dispaly

Printing Samples

FAQ

1. What is a PE CI Flexo Press used for?

A PE CI Flexo Press is mainly used for high-speed multi-color printing on PE (polyethylene) films, commonly applied in packaging bags, shopping bags, food packaging, and flexible packaging materials.

2. Why is the central impression structure important for film printing?

The central drum keeps the film tightly attached during printing, which helps maintain stable tension and ensures accurate color registration.

3. What advantages does flexographic printing offer compared with gravure printing?

Flexographic technology typically requires lower plate-making costs, shorter preparation time, and offers a more environmentally friendly printing process.

4. What other materials can be printed besides PE film?

Many machines can also handle flexible substrates such as BOPP, OPP, CPP, PET films, and certain types of packaging paper.

5. How many colors can the machine print in one pass?

Most models support 4 to 10 color units, allowing complex packaging designs and detailed graphics to be printed efficiently.

6. What industries commonly use PE CI Flexo Printing Machines?

Industries such as food packaging, daily consumer goods packaging, e-commerce shipping bags, and plastic packaging manufacturers widely use these machines.

7. What should buyers consider when selecting a printing machine?

Important factors include printing width, maximum speed, number of color stations, tension control system, automation level, and the reliability of the manufacturer.

8. Is this equipment suitable for large-volume production?

Yes. With stable operation and high printing efficiency, it is commonly used for continuous industrial production in the flexible packaging industry.
