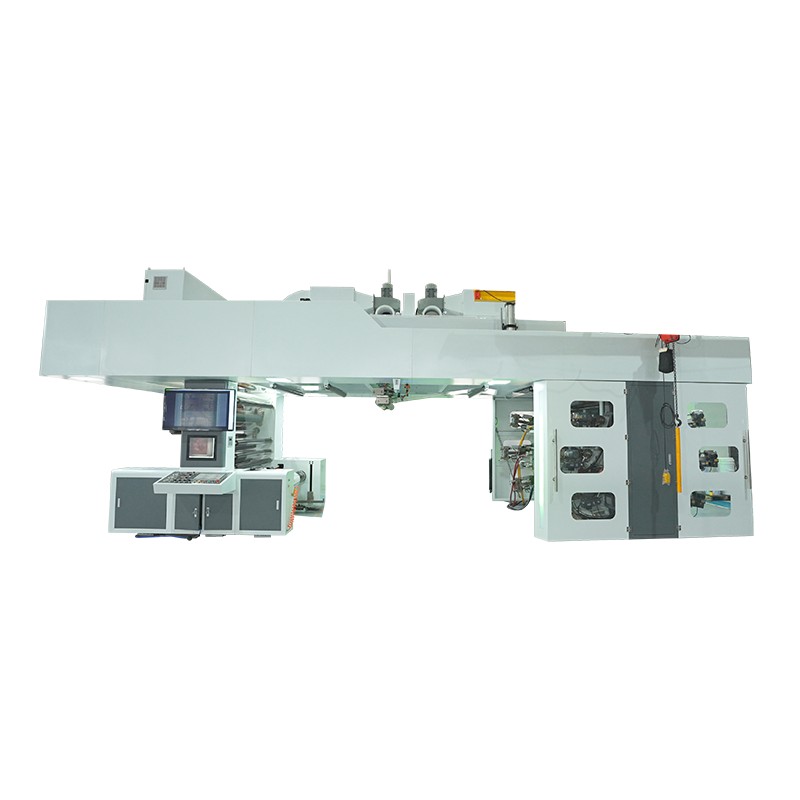

The PET CI Flexo Press is a flexographic printing press with a central impression drum structure, specifically designed for high-precision multi-color printing on PET film, plastic film, and flexible packaging materials.
During the printing process, the PET film adheres tightly to the central impression drum and passes through multiple printing units sequentially, achieving stable registration, high-speed production, and high-quality image output.
The main purpose of the PET CI Flexo Press is to print patterns, text, brand information, and packaging designs on PET film, and it is widely used in flexible packaging production.
Main functions include:
●PET film color printing
●Packaging pattern printing
●Brand and product information printing
●High-precision multi-color registration
●High-speed, high-volume production
Central Impression Design
The central impression structure ensures stable web travel around the printing cylinder during the printing process, significantly improving register accuracy and printing consistency.
High-speed Efficient
The equipment supports high-speed operation, meeting large-volume production needs, while ensuring printing quality and color stability.
Multi-color Printing
Equipped with-station design, it supports multi-color flexographic printing, capable of achieving rich color gradations and precise pattern reproduction.

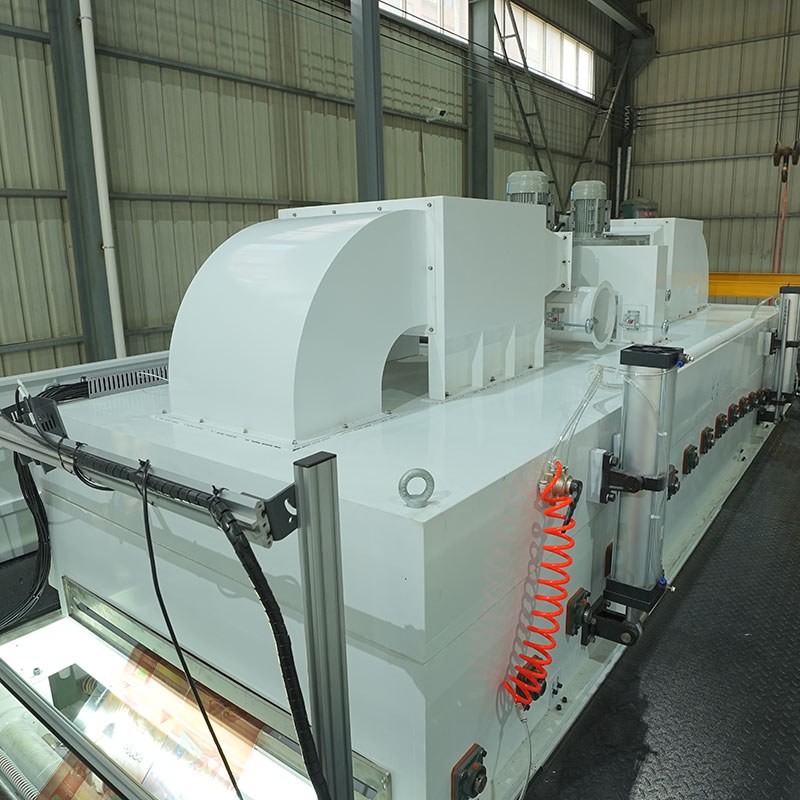

Advanced Drying System
Equipped with efficient air or infrared drying devices, it accelerates ink drying speed, ensuring printed products are smudge-free and colorfully bright.
Automated Control
Equipped with a operation interface and automatic tension control system, it simplifies the operation process, improves production efficiency, and reduces human errors.
Environmentally Friendly and Energy Saving
Compatible with-friendly water-based or UV inks, it reduces environmental pollution and has a low overall energy consumption.
PET film (polyester film)
OPP film, CPP film (compatible with some flexible films)
Various plastic composite packaging films
1. Food Flexible Packaging
●Snack Packaging
●Candy Packaging
●Frozen Food Packaging
2. Daily Chemical Product Packaging
●Shampoo Packaging
●Laundry Detergent Packaging
●Cosmetic Packaging
3. Pharmaceutical Packaging
●Pharmaceutical Bags
●Medical Packaging Film
4. Labeling and Composite Packaging
●PET Composite Film
●Multilayer Packaging Materials
The central impression structure brings excellent printing register and efficiency
Suitable for exquisite printing on high-value-added plastic materials such as PET
High degree of automation, reducing production costs and improving stability
Outstanding printing quality, with bright colors and clear patterns
Environmentally friendly energy-saving, meeting the requirements of modern production environmental protection
PET CI flexographic press is a key equipment in the plastic packaging industry, suitable for high-quality, multicolor, and efficient plastic film printing, helping enterprises to enhance the market competitiveness and brand image of their packaging products.
| Model | HPCI-600B | HPCI-800B | HPCI-1000B | HPCI-1200B |
| Number of printing group | 4/6/8 | |||
| Max.web width | 650 | 850 | 1050 | 1250 |
| Max.printing width | 600 | 800 | 1000 | 1200 |
| Max.machine speed | 250m/min | |||
| Max.printing speed | 200m/min | |||
| Max.unwind/rewind Dia. | 800mm | |||
| Drive type | Central drum with gear drive | |||
| Ink | Water base ink or solvent ink | |||
| Printing lengh(repeat) | 350-800MM | |||
| Range of sbstrates | PP Wowen Bags,Paper-plastic bags | |||
| Electrical supply | Voltage 380v,50hz or to be specified | |||
● The machine introduction & absorption of European technology / process manufacturing, supporting / full functional.
● After mounting the plate and registration, no longer need registration, improve yield.
● Replacing 1 set of Plate Roller (unloaded old roller, installed six new roller after tightening), only 20 Minute registration can be done by printing.
● The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
● Maximum production machine speed up 200m/min, registration accuracy ±0.10mm.
● The overlay accuracy does not change during lifting running speed up or down.
● When machine stop, Tension can be maintained, the substrate is not deviation shift.
● The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield.
● With precision structural, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.
1,Center-driven unwinding, equipped with magnetic powder brake, equipped with automatic tension control；
2,Tension control: Ultra-light floating roller control, automatic tension compensation,closed loop control;
3,It has the function of automatic shutdown when the material is interrupted, and the tension maintains the function to avoid the substrate slack and deviation during the shutdown
4, Configure automatic EPC system before printing EPC: Before printing, a four-roller automatic EPC ultrasonic probe correction system has manual/automatic/center return functions, and the left and right translation can be adjusted by ±65mm.
1，Type : CI Flex Printing Machine
2，Color: 4 colors on the front + 4 colors on the back
3，Drive mode: Servo gear drive
4，Motor: Servo motor drive, inverter control closed loop control
5，Printing method :Photosensitive resin plate, suitable for both water-based and alcohol-soluble inks
6，Printing Repeat: 400-1200mm

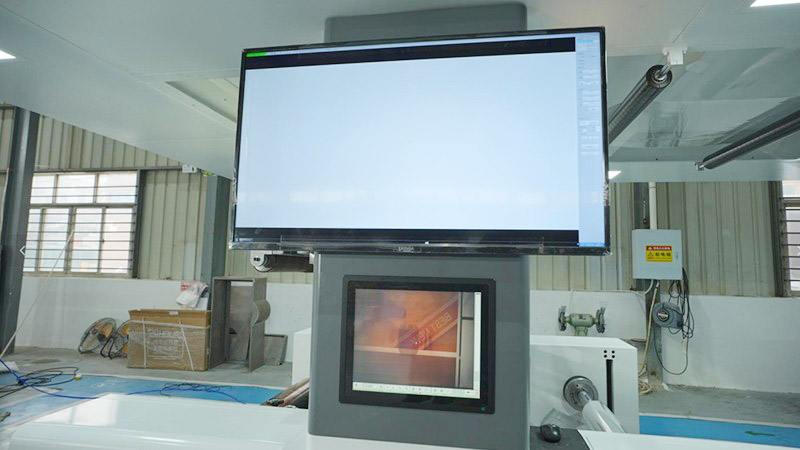

1,Check range: depends on the material width, arbitrarily setting. It is ok for adjustable point monitor or automatic back and forth.
1,Double-station Surface friction winding, Equipped with servo cutter, stable segment length
2,The tension control adopts ultra-light floating roller control, automatic tension compensation, closed-loop control, and arbitrary setting of taper tension (low-friction cylinder position detection, precision pressure regulator control, automatic alarm or shutdown when the roll diameter reaches the set value)
1.What industries commonly use PET CI flexo printing machines?
These machines are widely used in flexible packaging production, including food packaging, beverage labels, pharmaceutical packaging, personal care product packaging, and industrial packaging films.
2. How many colors can a PET CI flexographic printing press support?
Most PET CI flexo presses are available in configurations ranging from 4 colors to 10 colors, depending on the printing requirements and production scale of the packaging manufacturer.
3. What are the advantages of using a CI flexo press for PET film printing?
The central impression cylinder design provides excellent color registration, high printing stability, and consistent print quality, making it ideal for high-speed flexible packaging production.
4. What is the typical printing speed of a PET CI flexo press?
Depending on the machine configuration and material, the printing speed can typically reach 200–400 meters per minute, allowing efficient large-scale production.
5. Is a PET CI flexo press suitable for high-volume packaging production?
Yes. These machines are specifically designed for continuous, high-volume industrial printing, making them ideal for packaging converters and commercial printing factories.
6. What factors should buyers consider when choosing a PET CI flexo press supplier?
Key factors include the manufacturer’s experience, machine stability, printing accuracy, after-sales service, customization options, and the supplier’s technical support capabilities.
7. Can PET CI flexo presses be customized for specific production needs?
Yes. Many manufacturers offer customization options such as different color units, drying systems, web widths, automation features, and tension control systems to meet specific printing requirements.
