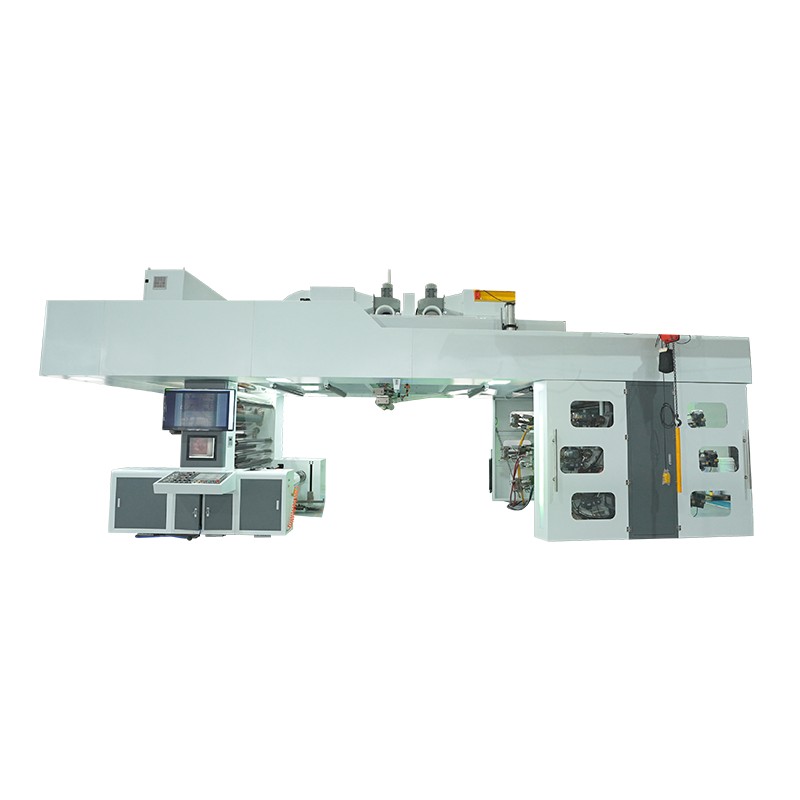

PP CI Flexo Press

A PP CI Flexo Press (Polypropylene Central Impression Flexographic Press) is a high-efficiency flexographic printing machine specifically designed for printing PP (Polypropylene) film and packaging materials. The machine uses a Central Impression (CI) drum structure, where the substrate is held tightly against a large central cylinder while passing through multiple printing stations. This design ensures precise color registration, stable web tension, and consistent high-speed printing.

PP CI Flexo Press machines are widely used in the flexible packaging industry to print graphics, logos, and product information on polypropylene films used for bags, food packaging, labels, and industrial packaging materials.

How a PP CI Flexo Press Works？

A PP CI Flexo Press operates using flexographic printing technology, which transfers ink through flexible photopolymer plates. The printing material (PP film) wraps around a central impression drum while each color station prints sequentially.

Key working process:

1.Unwinding System – PP film is fed into the press under controlled tension.

2.Ink Transfer System – Anilox rollers precisely meter ink onto the printing plate.

3.Flexographic Printing Units – Multiple stations print different colors.

4.Central Impression Drum – Keeps the substrate stable for accurate multi-color registration.

5.Drying System – Hot air or IR systems dry inks between colors.

6.Rewinding System – The finished printed film is rolled for further converting.

What Is a PP CI Flexo Press Used For?

A PP CI Flexo Press is primarily used for high-quality printing on polypropylene packaging materials, especially in industries requiring large-volume, high-speed production.

Common applications include:

●Food packaging films

●Snack and candy packaging

●PP shopping bags

●Label films

●Industrial packaging

●Laminated flexible packaging materials

Because PP film is widely used in packaging, these presses are essential equipment for flexible packaging manufacturers and printing converters.

Problems a PP CI Flexo Press Can Solve

In modern packaging production, manufacturers often face issues such as poor registration accuracy, unstable printing on thin films, low production efficiency, and high material waste. A PP CI Flexo Press helps solve these challenges.

1. Improves Printing Registration Accuracy

The central impression drum keeps the PP film tightly wrapped during printing, significantly improving multi-color alignment and reducing color shift.

2. Ensures Stable Printing on Thin Films

PP films are lightweight and flexible. The CI structure provides stable web control, preventing wrinkles and stretching.

3. Increases Production Speed

CI flexo presses are designed for high-speed continuous printing, making them ideal for large-scale packaging production.

4. Reduces Material Waste

Accurate tension control and precise registration reduce setup waste and defective prints, lowering production costs.

5. Supports High-Quality Packaging Graphics

Modern PP CI Flexo presses deliver sharp images, consistent color density, and professional packaging appearance, helping brands improve product shelf appeal.

Key Advantages

●High registration precision due to the central impression drum

●Excellent stability for thin PP films

●High-speed production capability

●Lower ink consumption and production cost

●Suitable for long production runs

●Compatible with water-based and solvent-based inks

These advantages make PP CI Flexo presses a preferred solution for flexible packaging printers and converters worldwide.

Technical Specifications

Characteristic

● The machine introduction & absorption of European technology / process manufacturing, supporting / full functional.
● After mounting the plate and registration, no longer need registration, improve yield.
● Replacing 1 set of Plate Roller (unloaded old roller, installed six new roller after tightening), only 20 Minute registration can be done by printing.
● The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
● Maximum production machine speed up 200m/min, registration accuracy ±0.10mm.
● The overlay accuracy does not change during lifting running speed up or down.
● When machine stop, Tension can be maintained, the substrate is not deviation shift.
● The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield.
● With precision structural, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.

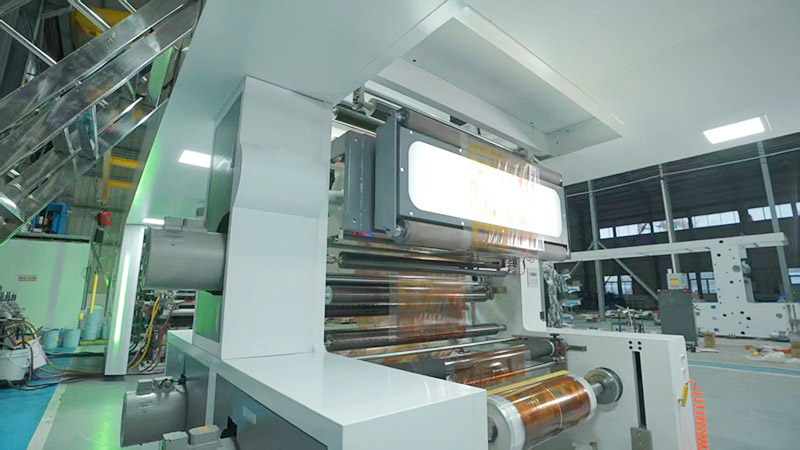

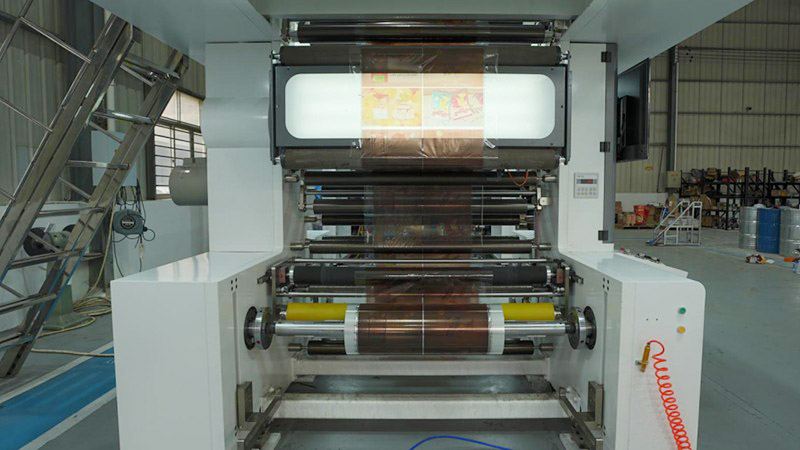

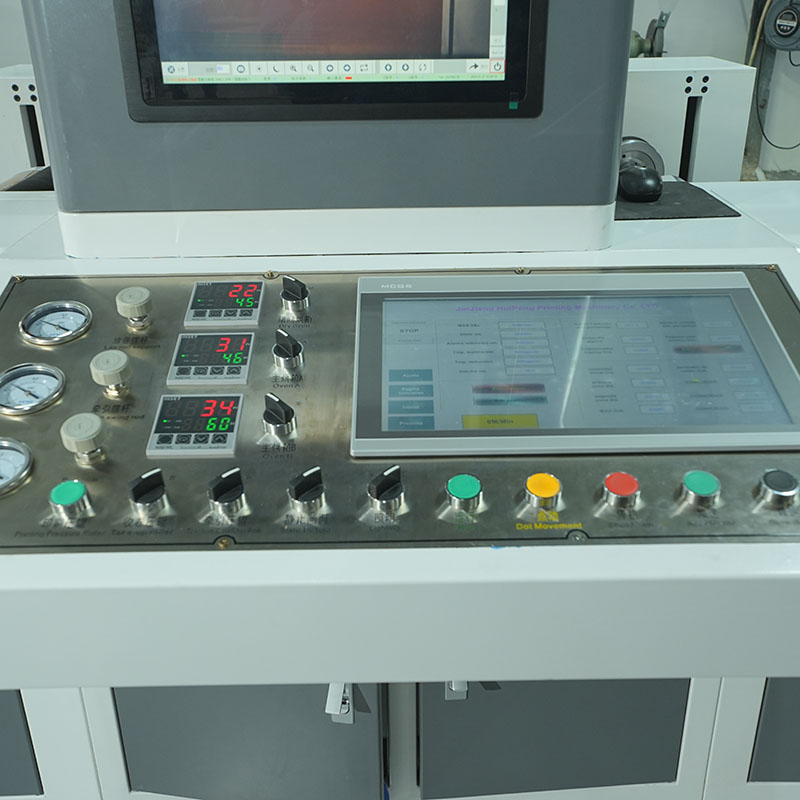

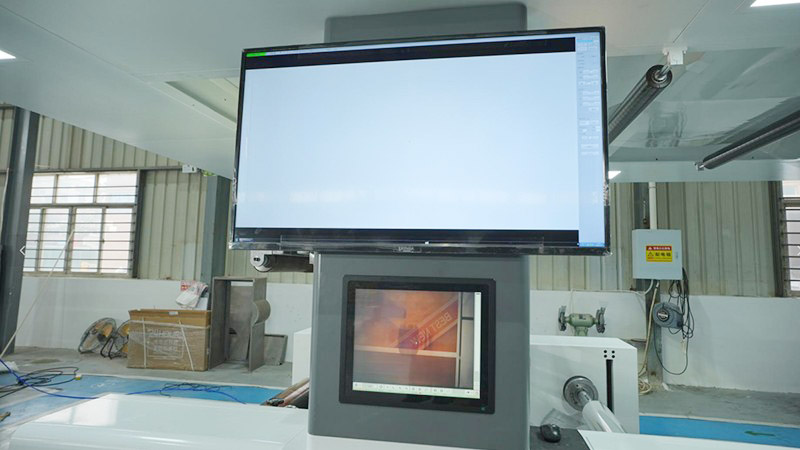

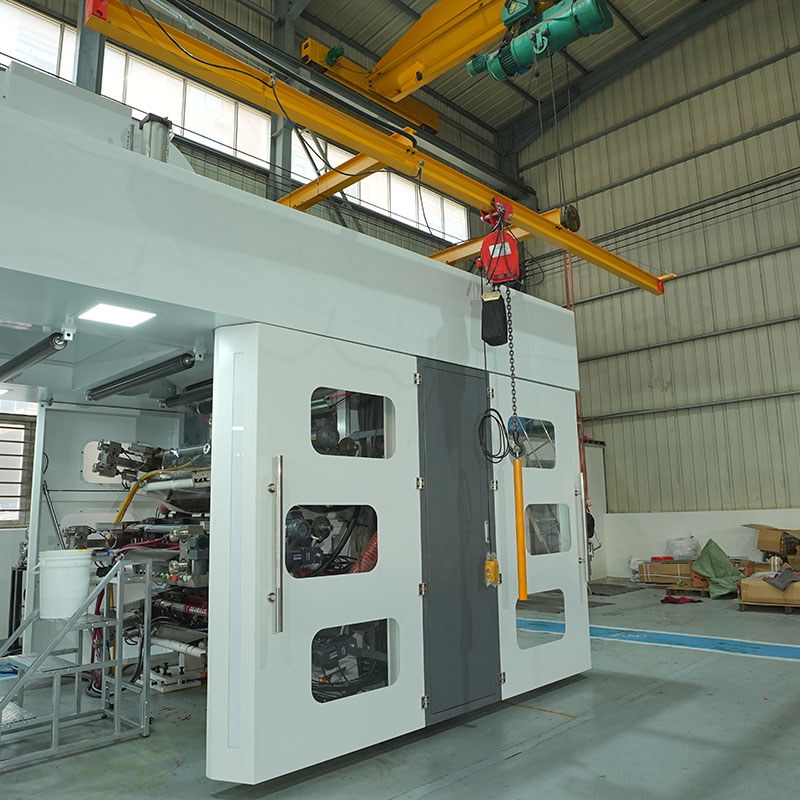

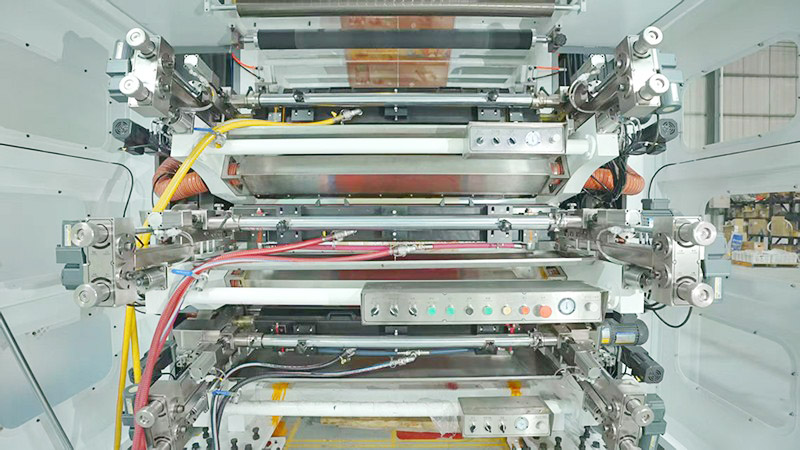

Details Dispaly

Printing Samples

Why PP CI Flexo Press Is Important for Packaging Manufacturers?

With the rapid growth of the flexible packaging industry, manufacturers require equipment that can deliver consistent quality, production efficiency, and cost control. A PP CI Flexo Press enables printing companies to produce high-quality polypropylene packaging at industrial scale, meeting the demands of food, consumer goods, and logistics industries.

For packaging converters, investing in a reliable PP CI Flexo Press can increase productivity, reduce operational costs, and enhance print quality, ultimately improving competitiveness in the global packaging market.

Faq

1. What materials can this type of printing machine handle?

It is mainly used for polypropylene (PP) film, but many machines can also print on other flexible substrates such as BOPP, OPP, PE, and laminated films, depending on the machine configuration and ink system.

2. What printing speed can a PP CI Flexo Press typically achieve?

Most industrial PP CI Flexo Press machines operate at printing speeds between 150–400 meters per minute, depending on the model, number of colors, substrate thickness, and drying system. High-end machines designed for large-scale production can reach even higher speeds while maintaining stable registration.

3. How many colors can be printed in one pass?

Most machines are available in 4-color, 6-color, 8-color, or even 10-color configurations, allowing manufacturers to produce complex graphics and high-quality packaging designs in a single run.

4. Why is the central drum structure important?

The central drum holds the film firmly during printing, which helps maintain stable tension and accurate color alignment, especially when printing on thin and flexible materials.

5. What industries typically use this printing solution?

It is widely used in industries such as food packaging, flexible plastic packaging, shopping bags, labels, and consumer goods packaging.

6. What types of ink are commonly used?

Depending on the application, printers may use solvent-based inks, water-based inks, or UV inks to achieve strong adhesion, fast drying, and durable print results on film materials.

7. How does this machine help reduce production waste?

Advanced tension control, precise registration systems, and stable web handling help reduce setup waste, minimize printing errors, and improve material utilization.

8. What factors should buyers consider when choosing a PP CI Flexo Press?

Buyers typically evaluate factors such as printing width, number of colors, maximum speed, drying system, automation level, registration accuracy, and after-sales service to ensure the machine meets their production requirements.
