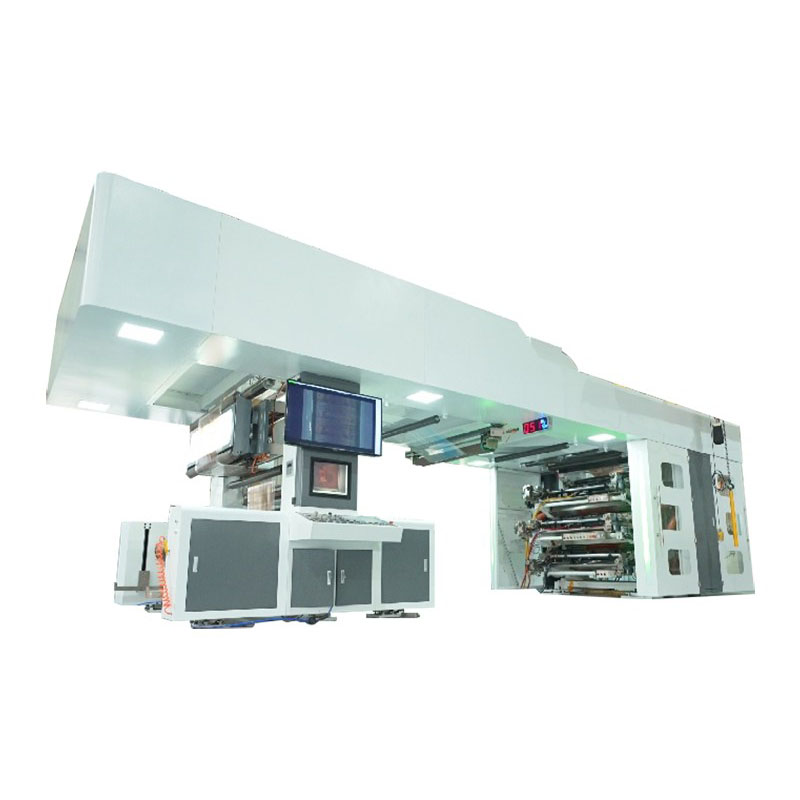

The CPP CI Flexo Press is a specialized flexographic printing machine designed for Cast Polypropylene (CPP) film printing, widely used in the packaging industry. Its Central Impression (CI) cylinder structure allows the substrate to wrap around a single drum, ensuring precise registration and consistent print quality at high speeds.
Superior Print Accuracy – CI design minimizes color misalignment and improves multi-color printing quality.
High Production Efficiency – Enables fast roll-to-roll printing, reducing downtime and maximizing throughput.
Cost-Effective Operation – Optimized ink usage and minimal material waste lower production costs.
Flexible Customization – Supports various CPP film thicknesses, widths, and surface treatments.
Durable and Reliable – Built with high-quality components to ensure stable long-term operation.
Central Impression Design
Utilizes a Central Impression structure to ensure stable film travel, improving printing registration accuracy and consistency.
High Speed and Efficiency
Supports high-speed operation to meet the demands of modern mass production while ensuring print quality.
Multicolor Printing
Multi-station design supports multicolor flexographic printing, achieving vibrant colors and rich patterns.
Advanced Drying System
Equipped with efficient hot air or infrared drying devices to accelerate ink drying and ensure clear, smear-free prints.

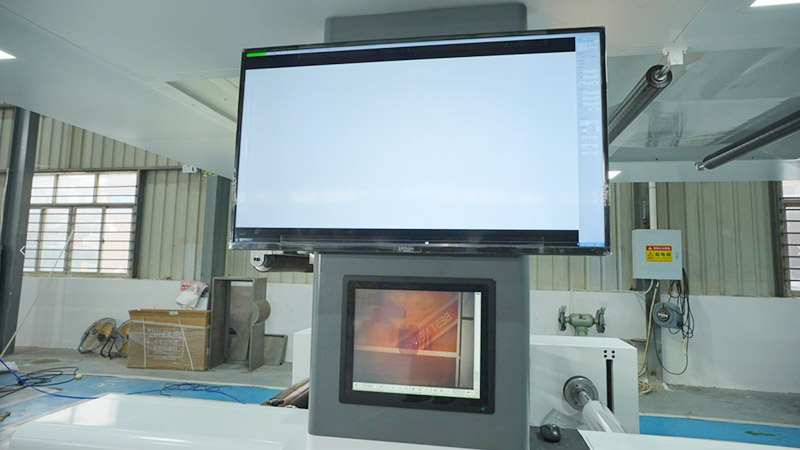

Automated Control
Digital operation interface and automatic tension control system simplify operation and improve production efficiency.
Environmentally Friendly and Energy Saving
Supports eco-friendly inks, with energy-saving operation that reduces emissions and meets environmental requirements.
CPP film (Cast Polypropylene Film)
OPP film, PET film, and other flexible plastic films (supported by certain models)
Composite packaging films
Food packaging (e.g., snack packaging, beverage packaging)
Pharmaceutical and medical packaging
Daily chemical product packaging
Electronics product packaging films
Printing of other flexible packaging materials
Central impression design ensures high precision and stable printing results
Flexibly adapts to CPP and various flexible film material printing requirements
High level of automation, easy operation, and improved production efficiency
Excellent print quality with bright colors and rich layers
Environmentally friendly and energy-saving, meeting modern production and environmental standards
The CPP CI Flexographic Press is a high-efficiency printing device designed for the flexible packaging industry. It is suitable for multicolor, diversified, high-quality packaging printing, helping enterprises enhance product added value and market competitiveness.
| Model | HPCI-600B | HPCI-800B | HPCI-1000B | HPCI-1200B |
| Number of printing group | 4/6/8 | |||
| Max.web width | 650 | 850 | 1050 | 1250 |
| Max.printing width | 600 | 800 | 1000 | 1200 |
| Max.machine speed | 250m/min | |||
| Max.printing speed | 200m/min | |||
| Max.unwind/rewind Dia. | 800mm | |||
| Drive type | Central drum with gear drive | |||
| Ink | Water base ink or solvent ink | |||
| Printing lengh(repeat) | 350-800MM | |||
| Range of sbstrates | PP Wowen Bags,Paper-plastic bags | |||
| Electrical supply | Voltage 380v,50hz or to be specified | |||
● The machine introduction & absorption of European technology / process manufacturing, supporting / full functional.
● After mounting the plate and registration, no longer need registration, improve yield.
● Replacing 1 set of Plate Roller (unloaded old roller, installed six new roller after tightening), only 20 Minute registration can be done by printing.
● The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
● Maximum production machine speed up 200m/min, registration accuracy ±0.10mm.
● The overlay accuracy does not change during lifting running speed up or down.
● When machine stop, Tension can be maintained, the substrate is not deviation shift.
● The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield.
● With precision structural, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.
1,Center-driven unwinding, equipped with magnetic powder brake, equipped with automatic tension control；
2,Tension control: Ultra-light floating roller control, automatic tension compensation,closed loop control;
3,It has the function of automatic shutdown when the material is interrupted, and the tension maintains the function to avoid the substrate slack and deviation during the shutdown
4, Configure automatic EPC system before printing EPC: Before printing, a four-roller automatic EPC ultrasonic probe correction system has manual/automatic/center return functions, and the left and right translation can be adjusted by ±65mm.
1，Type : CI Flex Printing Machine
2，Color: 4 colors on the front + 4 colors on the back
3，Drive mode: Servo gear drive
4，Motor: Servo motor drive, inverter control closed loop control
5，Printing method :Photosensitive resin plate, suitable for both water-based and alcohol-soluble inks
6，Printing Repeat: 400-1200mm
1,Check range: depends on the material width, arbitrarily setting. It is ok for adjustable point monitor or automatic back and forth.
1,Double-station Surface friction winding, Equipped with servo cutter, stable segment length
2,The tension control adopts ultra-light floating roller control, automatic tension compensation, closed-loop control, and arbitrary setting of taper tension (low-friction cylinder position detection, precision pressure regulator control, automatic alarm or shutdown when the roll diameter reaches the set value)
Provides a competitive advantage in high-volume packaging production.
Meets strict quality standards for multi-color CPP film printing.
Suitable for factory-scale operations and B2B supply chains worldwide.
