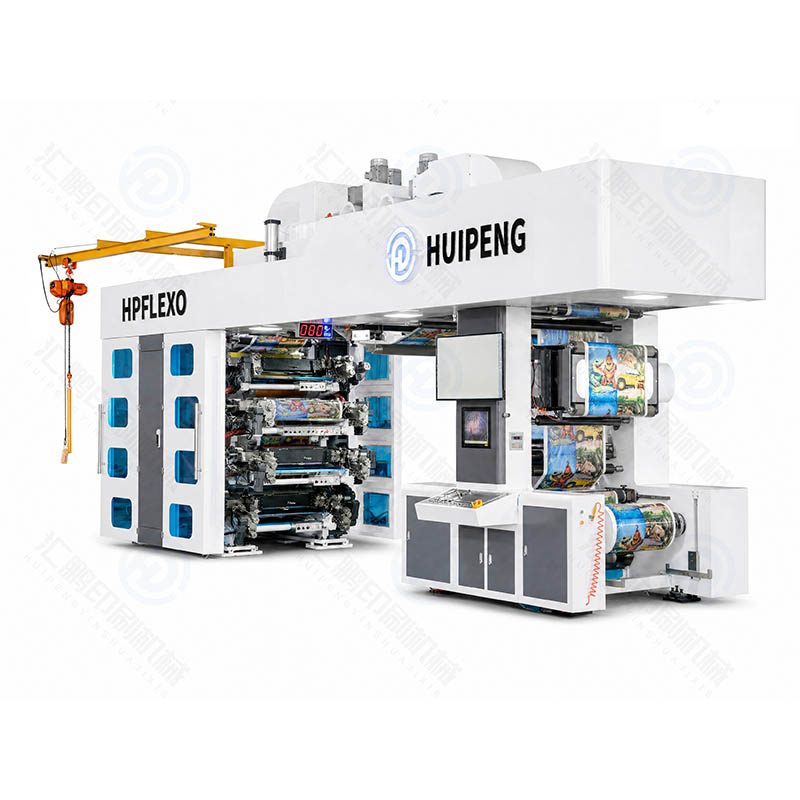

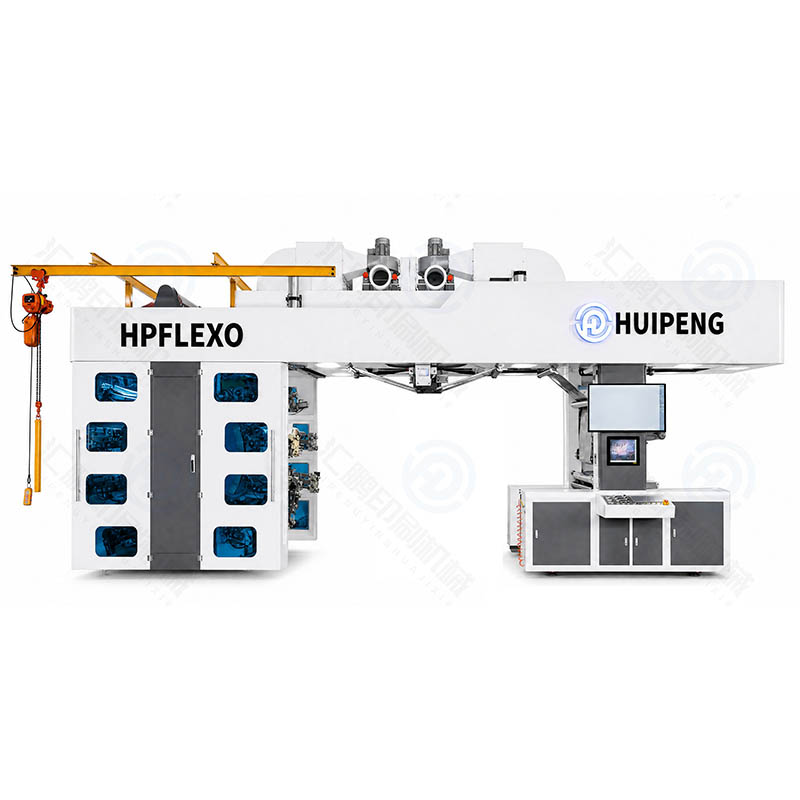

BOPP CI Flexo Press is an advanced industrial equipment specifically designed for high-speed printing on plastic films, especially BOPP films.
A BOPP CI Flexo Press is a central impression cylinder flexographic printing press specifically designed for printing on BOPP (Biaxially Oriented Polypropylene) film.
This equipment utilizes a CI (Central Impression) cylinder structure. The printing material remains in close contact with the central impression cylinder throughout the production process, continuously completing multi-color printing through multiple printing units, thus achieving high-speed, high-precision color registration and stable tension control.
BOPP CI Flexo Press is widely used in the flexible packaging, food packaging, daily chemical packaging, labeling, and plastic film printing industries, and is a crucial type of printing equipment in modern flexible packaging production.
The primary function of a BOPP CI Flexo Press is to print high-quality patterns, text, and brand information on the surface of BOPP film.
Flexographic printing technology allows logos, product information, graphic designs, barcodes, and decorative patterns to be printed onto film materials. These are then followed by lamination, bag making, or slitting processes to ultimately create various packaging products.
In short, its core applications include:
●Multi-color printing on BOPP film
●Mass production of packaging designs and branding
●Supporting high-speed, continuous industrial printing
●Meeting the large-scale order demands of the flexible packaging industry
Flexographic technology is adopted, suitable for multi-color printing, with bright colors and rich layers.
High printing speed to meet the needs of large-scale production.
Ex printing quality, precise plate alignment, ensuring clear patterns and reducing waste.
Central impression cylinder design effectively improves register accuracy and production efficiency.
Equ with a precise hot air drying system to ensure quick ink drying and improve printing efficiency.
Advanced automation control system is adopted for easy operation and reduced human intervention.
Environment Protection and Energy Saving:
Use of environmental-friendly inks and energy-saving motors to reduce environmental impact.
The equipment design focuses on reducing energy consumption and waste.
Packaging Industry: Widely used in packaging film printing, especially for food packaging, daily consumer goods packaging, and industrial packaging printing.
Label Printing: Used to produce various labels and decorative films.
Flexible Packaging: Suitable for printing composite packaging materials, achieving multi-layer composite packaging pattern.
Other Plastic Film Printing: Suitable for color printing of various plastic film products such as environmental bags and agricultural films.
1. High-Precision Color Registration
The central impression cylinder structure ensures stable material movement, resulting in more precise color registration between printing units, suitable for high-quality packaging printing.
2. High-Speed Production Efficiency
CI Flexo Press typically achieves high-speed printing speeds of 200–400 m/min, ideal for large-volume order production.
3. Stable Tension Control
Because the material always runs in close contact with the central cylinder, film stretching issues are reduced, maintaining stable printing tension and print quality.
4. Suitable for Film Materials
BOPP is a thin and easily deformable material, and the CI structure is well-suited for printing on thin, flexible materials.
5. Environmentally Friendly Printing
Flexo printing typically uses water-based or environmentally friendly inks, making it more environmentally friendly than traditional printing methods.
6. Reduced Production Costs
Flexo printing plates have lower costs, and the equipment has high production efficiency, helping to reduce the printing cost per unit of packaging.
| Model | HPCI-600B | HPCI-800B | HPCI-1000B | HPCI-1200B |
| Number of printing group | 4/6/8 | |||
| Max.web width | 650 | 850 | 1050 | 1250 |
| Max.printing width | 600 | 800 | 1000 | 1200 |
| Max.machine speed | 250m/min | |||
| Max.printing speed | 200m/min | |||
| Max.unwind/rewind Dia. | 800mm | |||
| Drive type | Central drum with gear drive | |||
| Ink | Water base ink or solvent ink | |||
| Printing lengh(repeat) | 350-800MM | |||
| Range of sbstrates | PP Wowen Bags,Paper-plastic bags | |||
| Electrical supply | Voltage 380v,50hz or to be specified | |||
● The machine introduction & absorption of European technology / process manufacturing, supporting / full functional.
● After mounting the plate and registration, no longer need registration, improve yield.
● Replacing 1 set of Plate Roller (unloaded old roller, installed six new roller after tightening), only 20 Minute registration can be done by printing.
● The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
● Maximum production machine speed up 200m/min, registration accuracy ±0.10mm.
● The overlay accuracy does not change during lifting running speed up or down.
● When machine stop, Tension can be maintained, the substrate is not deviation shift.
● The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield.
● With precision structural, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.
1,Center-driven unwinding, equipped with magnetic powder brake, equipped with automatic tension control；
2,Tension control: Ultra-light floating roller control, automatic tension compensation,closed loop control;
3,It has the function of automatic shutdown when the material is interrupted, and the tension maintains the function to avoid the substrate slack and deviation during the shutdown
4, Configure automatic EPC system before printing EPC: Before printing, a four-roller automatic EPC ultrasonic probe correction system has manual/automatic/center return functions, and the left and right translation can be adjusted by ±65mm.
1，Type : CI Flex Printing Machine
2，Color: 4 colors on the front + 4 colors on the back
3，Drive mode: Servo gear drive
4，Motor: Servo motor drive, inverter control closed loop control
5，Printing method :Photosensitive resin plate, suitable for both water-based and alcohol-soluble inks
6，Printing Repeat: 400-1200mm
1,Check range: depends on the material width, arbitrarily setting. It is ok for adjustable point monitor or automatic back and forth.
1,Double-station Surface friction winding, Equipped with servo cutter, stable segment length
2,The tension control adopts ultra-light floating roller control, automatic tension compensation, closed-loop control, and arbitrary setting of taper tension (low-friction cylinder position detection, precision pressure regulator control, automatic alarm or shutdown when the roll diameter reaches the set value)
1.Which industries use BOPP CI Flexo Press?
Mainly flexible packaging, food packaging, labels, and plastic film printing industries.
2.What are the main advantages?
Stable tension control, accurate color registration, high-speed production, and cost-effective operation.
3.Can the press handle custom designs?
Yes, HuiPeng machines support fully customizable printing patterns and configurations.
4.What materials are suitable for printing?
BOPP, PET, CPP, and other flexible films.
5.Is HuiPeng a reliable manufacturer?
Yes, HuiPeng is a professional CI flexo printing machine manufacturer and supplier with proven quality and global service.
6.Does it support multi-color printing?
Yes, the central impression structure ensures precise multi-color printing even at high speeds.
7.How does it improve production efficiency?
By combining high-speed operation with stable film tension and accurate registration, reducing waste and downtime.
