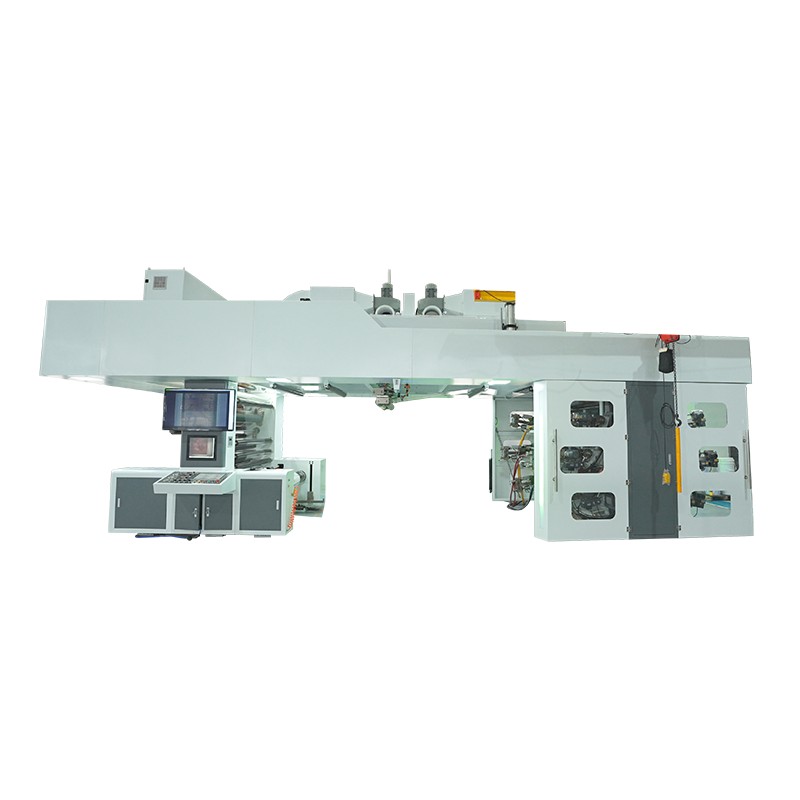

The CI Flexographic Printing Machine (Central Impression Flexo Press) is a high-precision printing solution widely used in the flexible packaging industry. Designed for printing on materials such as plastic film, paper, aluminum foil, and laminated substrates, this machine ensures excellent color registration, high production efficiency, and consistent print quality.
Manufactured by Jinjiang HuiPeng Printing Machinery Co., Ltd., a professional China-based flexographic printing machine manufacturer, this equipment is engineered for modern packaging production lines requiring stable performance, energy efficiency, and high-speed operation.
With a central impression drum design, all printing units are arranged around a single large drum, allowing the substrate to remain firmly supported during the printing process. This structure significantly improves registration accuracy and color consistency, making the CI flexo press ideal for high-quality multi-color printing.
A CI Flexographic Printing Machine is a type of flexographic printing press where multiple printing stations share a single central impression cylinder. The substrate wraps around the central drum while passing through each printing unit.
This design offers several key advantages:
●Higher registration precision
●Reduced material deformation
●Stable tension control
●Improved print quality for thin substrates
CI flexo presses are widely used for food packaging, medical packaging, label printing, and industrial flexible packaging.
Central Impression Cylinder Design
The printing material uniformly wraps around the central impression cylinder, improving printing registration accuracy and print plate stability, ensuring high-quality multi-color continuous printing.
Multi-Color Printing Capability
Supports multiple printing stations operating simultaneously, achieving complex multi-color printing and meeting the diverse packaging needs of brands.
High Speed and Efficiency
The equipment structure is suitable for high-speed operation and efficient production, meeting the requirements for industrial large-scale printing.
Automated Control System

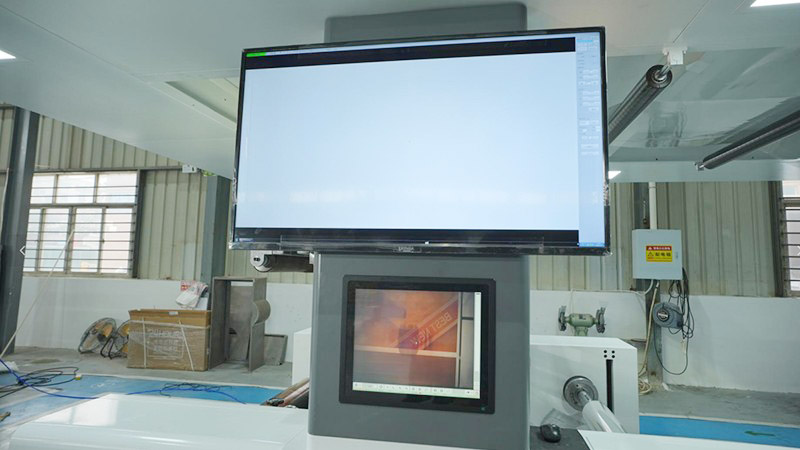

Equipped with a digital operation interface, automatic tension, and registration adjustment functions, simplifying the operation process and enhancing production stability.
Advanced Drying System
Uses hot air, infrared, or UV curing technology to ensure fast ink drying, improving printing clarity and durability.
Wide Material Compatibility
The machine supports various materials, including:
●PE film
●BOPP film
●PET film
●CPP film
●Paper
●Aluminum foil
●Laminated flexible packaging materials
●Snacks
●Coffee bags
●Frozen food packaging
●Pet food packaging
Food Packaging
Ideal for hygienic and high-speed printing of food-grade packaging materials.
Pharmaceutical Packaging
Used for printing packaging materials requiring high precision and strict quality control.
Label and Industrial Packaging
Suitable for industrial packaging materials, shopping bags, and product labels.
Central cylinder design ensures precise registration and continuous stability
Multi-color printing meets the needs of rich and colorful packaging designs
High automation, easy operation, and improved production efficiency
Wide material applicability and broad application range
Supports eco-friendly inks for green and efficient production
The CI Flexographic Printing Machine is a core device for achieving high-quality, multi-color printing in the modern packaging printing industry, helping enterprises enhance product competitiveness and market value.
| Model | HPCI-600B | HPCI-800B | HPCI-1000B | HPCI-1200B |
| Number of printing group | 4/6/8 | |||
| Max.web width | 650 | 850 | 1050 | 1250 |
| Max.printing width | 600 | 800 | 1000 | 1200 |
| Max.machine speed | 250m/min | |||
| Max.printing speed | 200m/min | |||
| Max.unwind/rewind Dia. | 800mm | |||
| Drive type | Central drum with gear drive | |||
| Ink | Water base ink or solvent ink | |||
| Printing lengh(repeat) | 350-800MM | |||
| Range of sbstrates | PP Wowen Bags,Paper-plastic bags | |||
| Electrical supply | Voltage 380v,50hz or to be specified | |||
● The machine integrates advanced European technology and precision manufacturing, providing full functionality and reliable performance.
● Once the plate is mounted and registered, no further registration is required, improving overall production yield.
● Replacing a single set of plate rollers is fast and efficient: after unloading the old roller and installing six new ones, registration can be completed in just 20 minutes.
● The machine features a pre-trapping function during plate mounting, allowing prepress trapping to be completed in the shortest possible time.
● Maximum production speed reaches 200 m/min, with registration accuracy maintained at ±0.10 mm.
● Overlay accuracy remains stable regardless of increasing or decreasing running speeds.
● When the machine stops, tension is maintained, preventing any substrate deviation or shift.
● The entire production line, from reel loading to finished product output, supports continuous non-stop production, maximizing efficiency and yield.
● Designed with precision structures, easy operation, and low maintenance requirements, the machine is highly automated and can be operated by a single person.
1,Center-driven unwinding, equipped with magnetic powder brake, equipped with automatic tension control；
2,Tension control: Ultra-light floating roller control, automatic tension compensation,closed loop control;
3,It has the function of automatic shutdown when the material is interrupted, and the tension maintains the function to avoid the substrate slack and deviation during the shutdown
4, Configure automatic EPC system before printing EPC: Before printing, a four-roller automatic EPC ultrasonic probe correction system has manual/automatic/center return functions, and the left and right translation can be adjusted by ±65mm.
1，Type : CI Flex Printing Machine
2，Color: 4 colors on the front + 4 colors on the back
3，Drive mode: Servo gear drive
4，Motor: Servo motor drive, inverter control closed loop control
5，Printing method :Photosensitive resin plate, suitable for both water-based and alcohol-soluble inks
6，Printing Repeat: 400-1200mm
1,Check range: depends on the material width, arbitrarily setting. It is ok for adjustable point monitor or automatic back and forth.
1,Double-station Surface friction winding, Equipped with servo cutter, stable segment length
2,The tension control adopts ultra-light floating roller control, automatic tension compensation, closed-loop control, and arbitrary setting of taper tension (low-friction cylinder position detection, precision pressure regulator control, automatic alarm or shutdown when the roll diameter reaches the set value)
1. What is the advantage of a CI flexo press compared with other flexographic presses?
The central impression drum design ensures better color registration and substrate stability, which is especially important when printing on thin films.
2. How many colors can the machine print?
Most CI flexographic printing machines support 4 to 10 color printing units, depending on the machine configuration and customer requirements.
3. What industries use CI flexographic printing machines?
They are widely used in food packaging, pharmaceutical packaging, label printing, plastic bag printing, and flexible packaging production.
4. Can the machine be customized?
Yes. Jinjiang HuiPeng Printing Machinery Co., Ltd. can customize the machine according to your production needs, including printing width, number of colors, drying systems, and automation features.
5. Do you provide installation and training services?
Yes. Our engineers provide on-site installation, machine debugging, and operator training to ensure smooth production at your factory.
6. How long is the delivery time?
Delivery time typically ranges from 60 to 120 days, depending on machine specifications and customization requirements.
7. What after-sales services are provided?
We provide 24-hour technical support, remote troubleshooting, spare parts supply, and overseas engineer support when needed.
