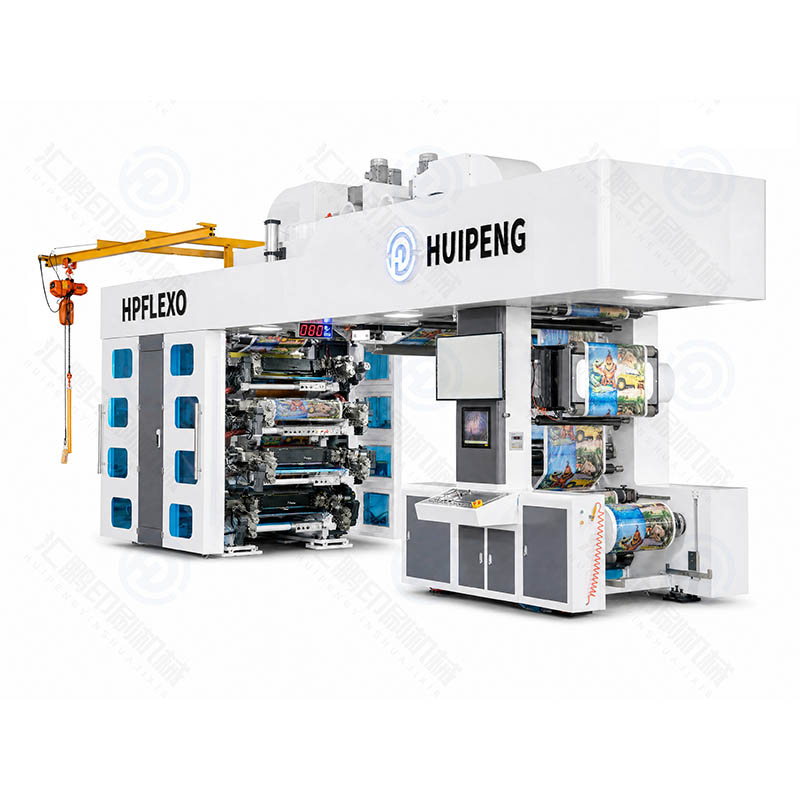

For flexible packaging converters and label printers, central impression (CI) flexo technology is the benchmark for tight register control, high print quality, and efficient short-run production. The single-drum configuration provides a shorter web path and consistent tension, which reduces stretch and distortion on thin films. Our CI flexo printing machinery line is built around this proven architecture and incorporates servo-driven print decks, quick-change sleeve systems, and automated wash-up functions. This design makes a CI flexographic printing machine especially suitable for extensible films such as PE, BOPP, and shrink sleeves, where maintaining precise color-to-color alignment is critical. Compared with inline or stack configurations, a modern CI flexo press delivers faster setup, lower waste, and more consistent output on tension-sensitive substrates. The Central drum flexo printing machine series further enhances thermal stability, vibration damping, and automated deck positioning, making it ideal for high-speed, long-repeat jobs and demanding process color work.
The central impression flexo printing machine is available in modular configurations with 6, 8, or 10 color stations, print widths from 800 mm to 1,600 mm, and repeat lengths from 300 mm to 900 mm. Key performance parameters are outlined below.
Detailed technical specifications of the central impression flexo printing machine are listed in the following table.
| Parameter | Specification |
|---|---|
| Print width range | 800 mm – 1,600 mm |
| Number of colors | 6 / 8 / 10 (expandable to 12) |
| Max mechanical speed | 400 m/min |
| Repeat length | 300 mm – 900 mm |
| Register accuracy | ±0.05 mm |
| Substrate thickness | 12 µm – 150 µm |
| Printing pressure control | Servo-driven with automatic zero-point calibration |
| Anilox roller engagement | Pneumatic with servo positioning |
| Plate mounting system | Sleeve-based, carbon fiber composite |
| Central drum surface | Hard chrome-plated cast iron |
| Dryer temperature control | Up to 180°C, closed-loop automatic adjustment |
| Web tension control | Closed-loop with load cells and ultrasonic edge guide |
| Job changeover time | Under 25 minutes for 8-color configuration |
| Main drive system | Gearless AC servo direct drive |
| Optional features | Vision inspection, corona treater, turner bar, viscosity control |
The central drum of this central impression flexo printing machine is manufactured from high-grade cast iron with a hard chrome surface and is internally water-cooled to maintain temperature stability within ±0.5°C across the full web width. Closed-loop tension control, combined with automatic web guiding, keeps substrate waste below 0.5% during setup and splice changes. Each print deck is equipped with independent servo motors, pneumatic anilox engagement, quick-change doctor blade chambers, and sleeve-based plate mounting. This configuration allows a complete 8-color job changeover in under 25 minutes and significantly reduces operator workload.
The drying system uses high-efficiency hot air nozzles with automatic temperature control and energy recovery, reducing drying energy consumption by up to 20% compared with conventional hot air dryers. The gearless servo drive architecture supports direct sleeve positioning and pre-register functionality, which minimizes setup waste on short runs and ensures consistent repeatability from job to job. The central impression flexo printing machine can also be configured with a vision inspection system, corona treater, turner bar for double-sided work, and automatic viscosity control. The modular design allows future expansion from 6 to 10 colors without replacing the central drum, protecting long-term investment for growing converters.
For high-speed flexible packaging lines, the central impression flexo printing machine is often paired with automatic unwind and rewind turrets, a video inspection system, and downstream slitting or die-cutting units. The press can handle water-based, solvent-based, and UV-curable inks with dedicated anilox specifications and dryer settings for each application. Print quality is further stabilized by a precision gearless drive system that eliminates mechanical backlash and by sleeve runout tolerances of less than 0.01 mm. The combination of these features reduces register variation, improves color consistency at high speed, and allows converters to print sophisticated designs with fine vignettes and process color screens.
Maintenance access on the central impression flexo printing machine is designed around a cantilever drum and quick-release deck guides, so operators can replace print sleeves, anilox rollers, and doctor blades without special tools. The HMI control system stores job parameters for repeat orders and offers remote diagnostics, real-time production monitoring, and integration with plant-wide MES or ERP systems. Safety features include full interlocking guards, light curtains, and automatic stop-on-web-break detection, meeting CE and UL standards.
Energy efficiency is a core design focus of the central impression flexo printing machine. The hot air drying system includes an automatic nozzle adjustment that follows the web width, reducing heated air consumption during narrow-web jobs by up to 30%. Low-energy servo drives and regenerative braking further cut total power demand, while the enclosed doctor blade chamber minimizes solvent evaporation and improves workplace air quality. These features help converters meet environmental compliance targets without sacrificing print speed or quality.
